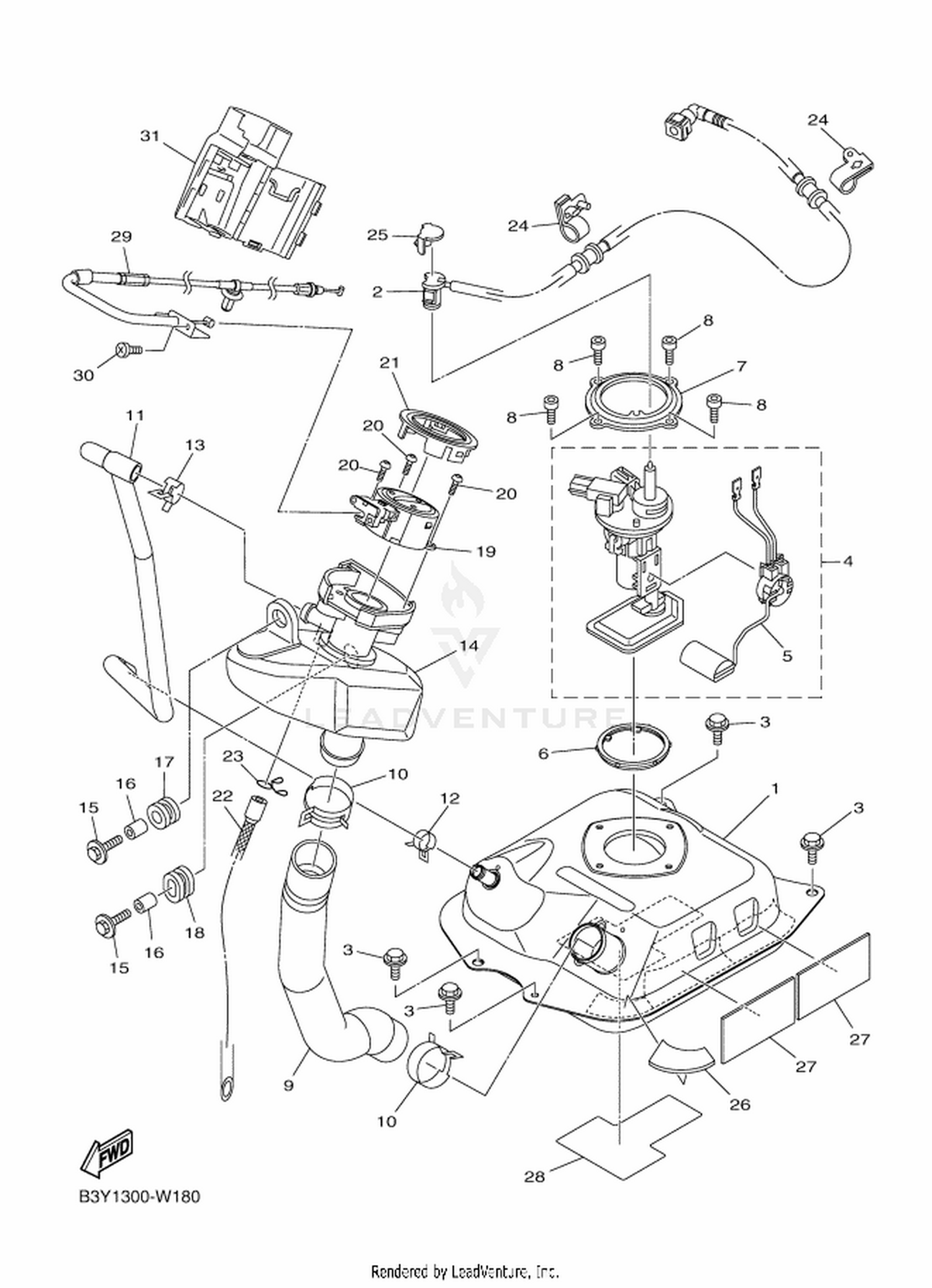

18 FUEL TANK
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 2TD-F4110-00 | FUEL TANK COMP. Price: Call Us |
| 2 | 2TD-E3971-00 | PIPE, FUEL 1 Price: Call Us |
| 3 | 90119-06875 | BOLT, WITH WASHER Price: Call Us |
| 4 | 2TD-E3907-00 | FUEL PUMP COMP. Price: Call Us |
| 6 | 1DB-F414G-01 | SEAL Price: Call Us |
| 7 | 2BM-F4491-00 | BRACKET, FUEL PUMP Price: Call Us |
| 8 | 91332-05010 | BOLT Price: Call Us |
| 9 | 2TD-F4316-00 | PIPE 6 Price: Call Us |
| 10 | 90467-37800 | CLIP Price: Call Us |
| 11 | 2TD-F4317-00 | PIPE 7 Price: Call Us |
| 12 | 90467-16807 | CLIP Price: Call Us |
| 13 | 90467-20804 | CLIP Price: Call Us |
| 14 | 2TD-F4280-00 | SUB FUEL TANK Price: Call Us |
| 15 | 90119-068C2 | BOLT, WITH WASHER Price: Call Us |
| 16 | 90387-07829 | COLLAR Price: Call Us |
| 17 | 90480-18290 | GROMMET Price: Call Us |
| 18 | 90480-01326 | GROMMET Price: Call Us |
| 19 | 2BM-F4610-00 | CAP ASSY Price: Call Us |
| 20 | 92012-04012 | BOLT, BUTTON HEAD Price: Call Us |
| 21 | 2BM-F467E-00 | CAP Price: Call Us |
| 22 | 2TD-F4318-00 | PIPE, OVERFLOW Price: Call Us |
| 23 | 90467-12806 | CLIP Price: Call Us |
| 24 | 90464-15805 | CLAMP Price: Call Us |
| 25 | 5VU-24135-00 | CLAMP 1 Price: Call Us |
| 26 | 2TD-F4181-00 | DAMPER, LOCATING 1 Price: Call Us |
| 27 | 90520-02822 | DAMPER, PLATE Price: Call Us |
| 28 | 2TD-F4595-00 | PROTECTOR Price: Call Us |
| 29 | 2BM-F4494-00 | WIRE, PULL Price: Call Us |
