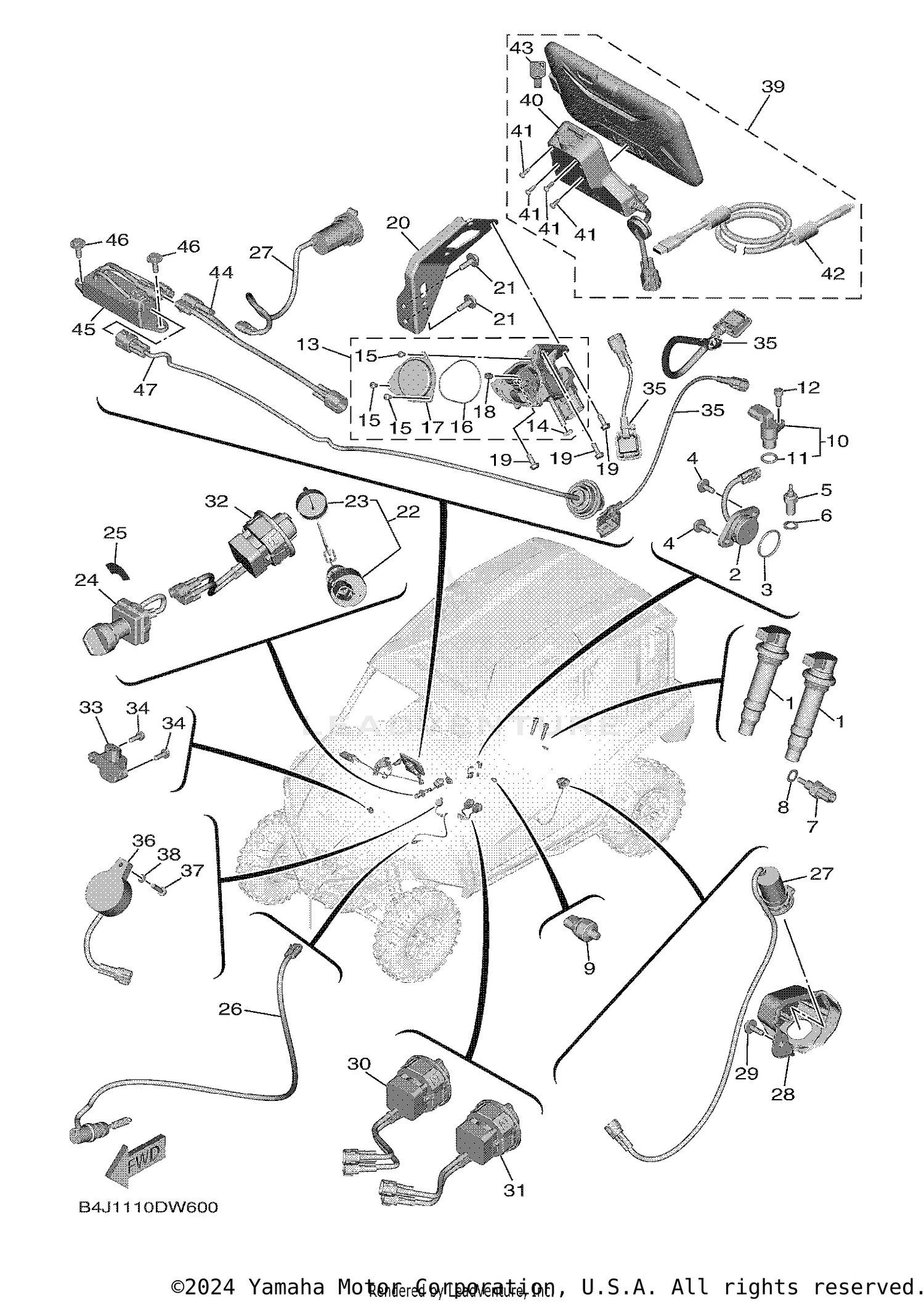

| Ref | Part Number | Description |
|---|
| 1 |
1WS-82310-00-00 |
IGNITION COIL ASSY Price: $119.99 |
| 2 |
BG4-82540-02-00 |
NEUTRAL SWITCH ASS This part replaces BG4-82540-00-00. Price: $70.99 |
| 3 |
93210-29196-00 |
O-RING Price: $9.49 |
| 4 |
90119-06137-00 |
BOLT, WITH WASHER Price: $9.49 |
| 5 |
3GB-82540-01-00 |
NEUTRAL SWITCH ASSY Price: $63.99 |
| 6 |
90430-10148-00 |
GASKET Price: $5.99 |
| 7 |
52B-H3591-00-00 |
THERMO UNIT This part replaces 54P-H3591-00-00. Price: $37.99 |
| 8 |
90430-10004-00 |
GASKET Price: $7.49 |
| 9 |
8FP-82504-01-00 |
OIL PRESSURE SWITCH ASSY This part replaces 8FP-82504-00-00. Price: $71.99 |
| 10 |
1TP-83755-00-00 |
SENSOR, SPEED Price: $84.99 |
| 11 |
4D9-81168-00-00 |
O-RING Price: $7.49 |
| 12 |
91312-06016-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 13 |
BG4-8A410-01-00 |
SENSOR UNIT Price: $412.99 |
| 14 |
1S3-14161-00-00 |
NUT, CABLE ADJUSTING Price: $8.49 |
| 15 |
98517-04006-00 |
SCREW, PAN HEAD This part replaces 98502-04006-00. Price: $4.50 |
| 16 |
5LP-14147-00-00 |
O-RING Price: $12.99 |
| 17 |
5UG-14293-00-00 |
COVER 1 Price: $14.49 |
| 18 |
1UY-14155-00-00 |
GUIDE, CABLE END Price: $19.99 |
| 19 |
JW1-F3394-00-00 |
BOLT, SPECIAL Price: $1.05 |
| 20 |
B4J-F133K-00-00 |
BRKT, PIPE 1 Price: $6.49 |
| 21 |
JW1-K6179-01-00 |
BOLT, SPECIAL 1 Price: $1.75 |
| 22 |
1XD-H2510-11-00 |
MAIN SWITCH ASSY This part replaces 5UG-H2510-00-00. Price: $35.99 |
| 23 |
5UG-H2579-00-00 |
CAP, KEY Price: $10.99 |
| 24 |
BG4-8250A-00-00 |
KEY ASSY Price: $338.99 |
| 25 |
B4J-H2108-00-00 |
LABEL Price: $2.40 |
| 26 |
B90-82530-01-00 |
STOP SWITCH ASSY This part replaces B90-82530-00-00. Price: $57.99 |
| 27 |
B4J-H254B-00-00 |
TERMINAL COMP. Price: $21.99 |
| 28 |
B4J-F84A3-00-00 |
PLATE, UNDER 1 Price: $4.20 |
| 29 |
JW1-K6179-01-00 |
BOLT, SPECIAL 1 Price: $1.75 |
| 30 |
B4J-82526-00-00 |
SWITCH, LAMP Price: $237.99 |
| 31 |
B4J-87280-00-00 |
SWITCH, SELECT Price: $355.99 |
| 32 |
B4J-87280-10-00 |
SWITCH, SELECT Price: $293.99 |
| 33 |
3B4-82576-10-00 |
SENSOR, LEAN ANGLE Price: $64.99 |
| 34 |
JW1-F3394-00-00 |
BOLT, SPECIAL Price: $1.05 |
| 35 |
B4J-H5460-00-00 |
AUXILIARY LIGHT AS Price: $19.49 |
| 36 |
2MB-83383-00-00 |
BUZZER Price: $74.99 |
| 37 |
97027-05020-00 |
BOLT This part replaces 97002-05020-00. Price: $3.55 |
| 38 |
92990-05600-00 |
WASHER, PLATE This part replaces 92902-05600-00. Price: $0.80 |
| 39 |
B4J-H21H0-05-00 |
AUX. DISPLAY ASSY This part replaces B4J-H21H0-01-00. Price: $1,721.99 |
| 44 |
B4J-H2117-01-00 |
WIRE,LEAD Price: $68.99 |
| 45 |
B4J-H21E1-04-00 |
PLUG, USB This part replaces B4J-H21E1-03-00. Price: $80.99 |
| 46 |
JW1-K6179-01-00 |
BOLT, SPECIAL 1 This part replaces 90119-06868-00. Price: $1.75 |
