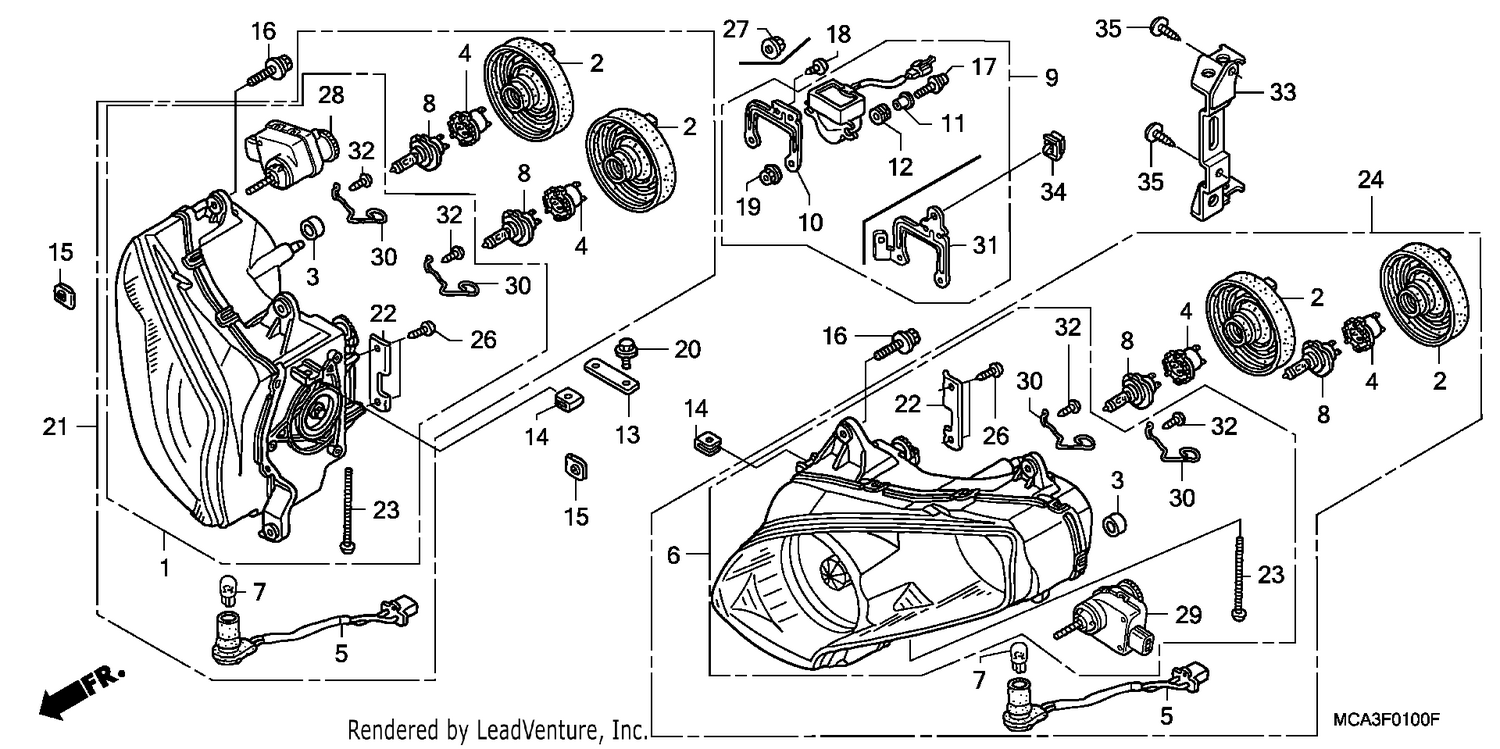

HEADLIGHT

HEADLIGHT

Parts (26)

RefPart NumberDescription
1 33102MCA621 HEADLIGHT UNIT, R. Price: Call Us
2 33112KPB003 COVER, RUBBER Price: Call Us
3 33113MBWD21 PIPE, CP Price: Call Us
4 33130MAT611 SOCKET COMP., HEADLIGHT Price: Call Us
5 33140MCA601 SOCKET COMP. Price: Call Us
6 33152MCA621 HEADLIGHT UNIT, L. Price: Call Us
7 33301SA0741 BULB (12V 5W) (STANLEY) Price: Call Us
8 34901MAT611 BULB, HEADLIGHT (12V 55W) (H7) (STANLEY) Price: Call Us
9 35160MCA013 SENSOR ASSY., BANK ANGLE Price: Call Us
10 35162MCA003 PLATE, BANK ANGLE SENSOR Price: Call Us
11 35162MN5003 COLLAR Price: Call Us
12 35163MN5003 GROMMET Price: Call Us
13 64516MCA000 PLATE, UPPER HEADLIGHT Price: Call Us
14 90301SM4901 NUT, SPRING, 6MM Price: Call Us
15 90305SH3000 NUT, AIR SPOILER CLIP Price: Call Us
16 934040602507 BOLT-WASHER, 6X25 Price: Call Us
17 93500040200H SCREW, PAN, 4X20 Price: Call Us
18 9390125080 SCREW, TAPPING, 5X8 Price: Call Us
19 9405004000 NUT, FLANGE, 4MM Price: Call Us
20 960010601800 BOLT, FLANGE, 6X18 Price: Call Us
21 33100MCA621 HEADLIGHT ASSY., R. Price: Call Us
22 33101MCA003 PLATE Price: Call Us
23 33103MCA003 SCREW COMP., BEAM ADJUST Price: Call Us
24 33150MCA621 HEADLIGHT ASSY., L. Price: Call Us
26 9390134320 SCREW, TAPPING, 4X12 Price: Call Us
28 33130MCA003 ADJUSTER UNIT, R. HEADLIGHT Price: Call Us
