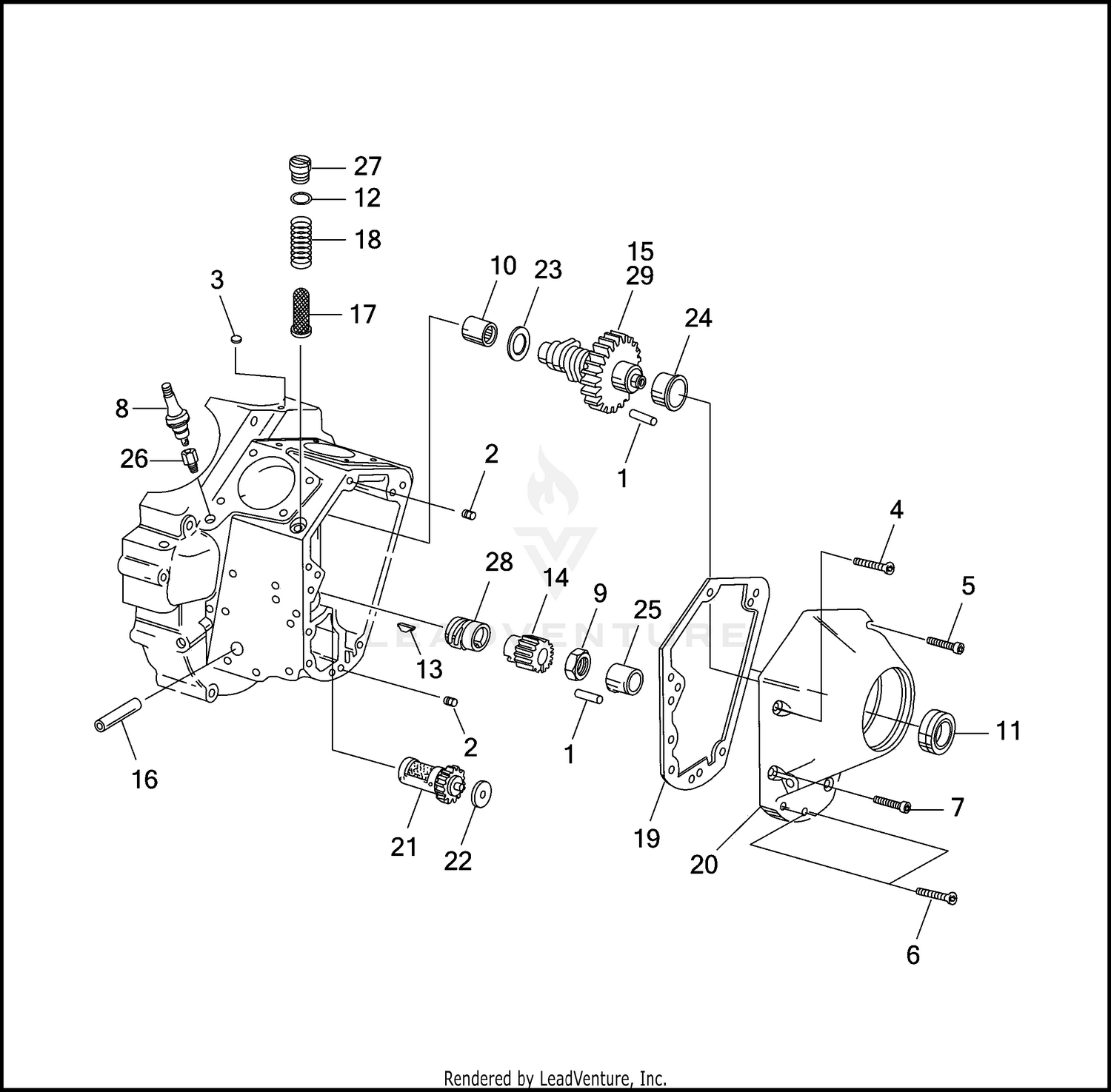

| Ref | Part Number | Description |
|---|
| 1 |
275 |
DOWEL PIN (AS REQUIRED) Not Available Price: |
| 2 |
358 |
DOWEL PIN Price: $1.22 |
| 3 |
653 |
PLUG CRANKCASE Not Available Price: |
| 4 |
3480A |
SCREW 1/4-20 X 1-3/4 KNURLED HD. (GRADE 8) Price: $1.22 |
| 5 |
4813A |
SCREW 1/4-20 X 1-3/8 KNURLED HD., W/LOCKPATCH Price: $1.22 |
| 6 |
4718A |
SCREW 1/4-20 X 1-1/2 KNURLED HD., W/LOCKPATCH Price: $1.22 |
| 7 |
4740A |
SCREW 1/4-20 X 1-1/4 KNURLED HD., W/LOCKPATCH (GRADE 8) Price: $1.22 |
| 8 |
74406-87 |
OIL PRESSURE SWITCH Price: $82.30 |
| 9 |
7916A |
JAMNUT 5/8-18 Price: $10.29 |
| 10 |
9058A |
NEEDLE BEARING CRANKCASE CAM COVER Not Available Price: |
| 11 |
83162-51 |
OIL SEAL BEARING Price: $4.32 |
| 12 |
11105 |
O-RING Price: $1.20 |
| 13 |
11219 |
T-KEY Not Available Price: |
| 14 |
24040-93 |
PINION GEAR 1.4850-53 P.D. (ORANGE) Not Available Price: |
| 14 |
24041-93 |
PINION GEAR 1.4846-49 P.D. (WHITE) Not Available Price: |
| 14 |
24042-93 |
PINION GEAR 1.4842-45 P.D. (YELLOW) Not Available Price: |
| 14 |
24043-93 |
PINION GEAR 1.4838-41 P.D. (RED) Not Available Price: |
| 14 |
24044-93 |
PINION GEAR 1.4834-37 P.D. (BLUE) Not Available Price: |
| 14 |
24045-93 |
PINION GEAR 1.4830-33 P.D. (GREEN) Not Available Price: |
| 14 |
24046-93 |
PINION GEAR 1.4826-29 P.D. (BLACK) Not Available Price: |
| 15 |
24586-93 |
SET OF CAM & PINION GEARS (MATCHED) Not Available Price: |
| 16 |
24641-36 |
BUSHING OIL PUMP SHAFT Not Available Price: |
| 17 |
24981-70 |
OIL SCREEN CRANKCASE Price: $9.70 |
| 18 |
24982-70 |
SPRING OIL SCREEN Not Available Price: |
| 19 |
25225-93B |
GASKET GEAR COVER Price: $6.62 |
| 20 |
25254-93B |
GEAR COVER W/ 11 Not Available Price: |
| 21 |
25310-82A |
BREATHER VALVE GEAR Price: $23.00 |
| 22 |
25320-82 |
THRUST WASHER BREATHER VALVE, 0.130 INCH THICK Not Available Price: |
| 22 |
25321-82 |
THRUST WASHER BREATHER VALVE, 0.135 INCH THICK Not Available Price: |
| 22 |
25322-82 |
THRUST WASHER BREATHER VALVE, 0.140 INCH THICK Not Available Price: |
| 22 |
25323-82 |
THRUST WASHER BREATHER VALVE, 0.145 INCH THICK Not Available Price: |
| 22 |
25325-82 |
THRUST WASHER BREATHER VALVE, 0.150 INCH THICK Not Available Price: |
| 22 |
25326-82 |
THRUST WASHER BREATHER VALVE, 0.155 INCH THICK Not Available Price: |
| 22 |
25327-82 |
THRUST WASHER BREATHER VALVE, 0.160 INCH THICK Not Available Price: |
| 22 |
25328-82 |
THRUST WASHER BREATHER VALVE, 0.165 INCH THICK Not Available Price: |
| 23 |
25550-57A |
THRUST WASHER CAM GEAR Price: $26.13 |
| 24 |
25581-70 |
BUSHING GEAR COVER Price: $24.27 |
| 25 |
25582-93 |
BUSHING GEAR COVER PINION SHAFT Not Available Price: |
| 26 |
26052-92A |
FITTING OIL PRESSURE Not Available Price: |
| 27 |
26263-80 |
PLUG OIL SCREEN Not Available Price: |
