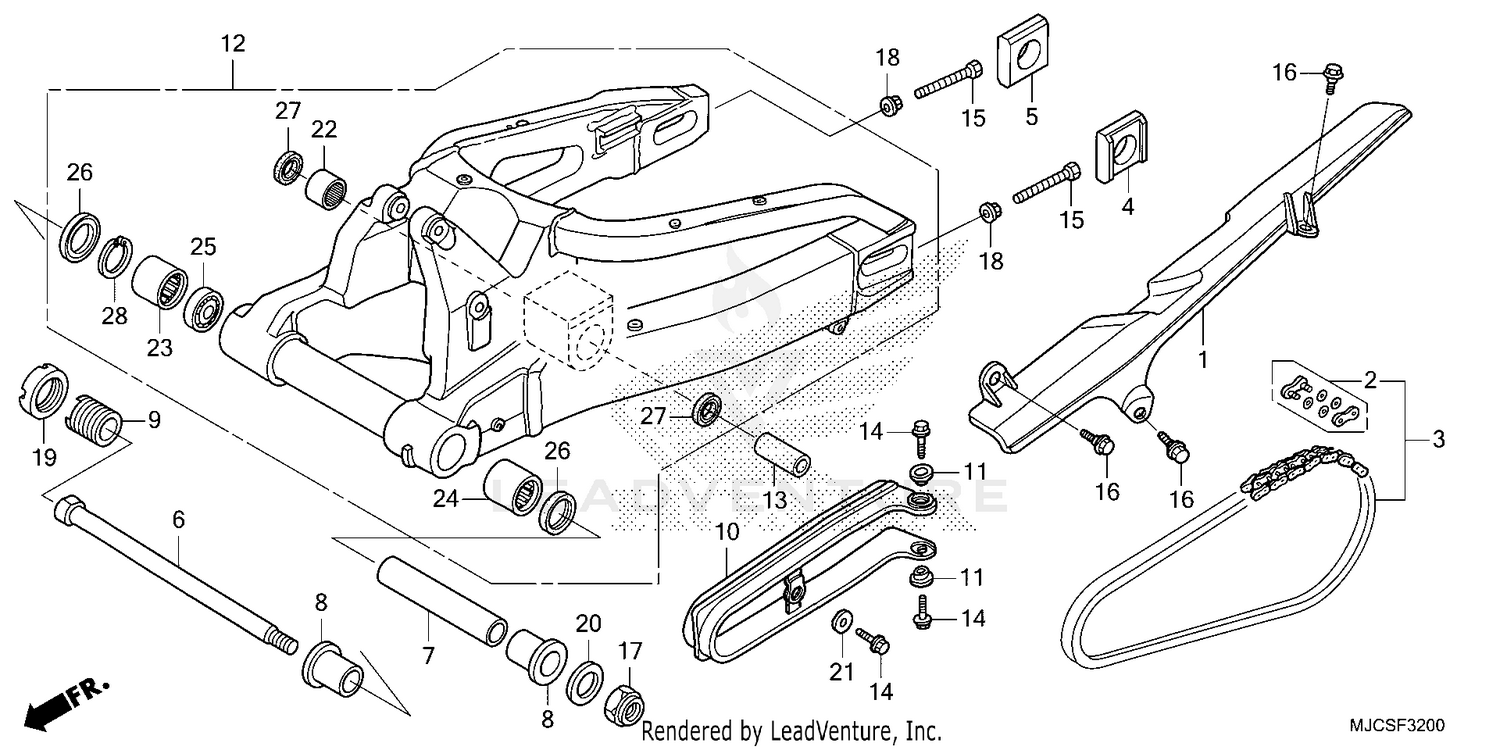

| Ref | Part Number | Description |
|---|
| 1 |
40510-MEE-010 |
CASE, DRIVE CHAIN Price: $60.71 |
| 2 |
40535-MAL-G01 |
MASTER LINK SET (DAIDO) Price: $9.13 |
| 2 |
40541-MFJ-D02 |
MASTER LINK SET (RK EXCEL) Price: $14.95 |
| 3 |
40540-MAL-G01 |
CHAIN, DRIVE (DID525HV-120ZB) (DAIDO) (STANDARD LINK 108L) Price: $273.11 |
| 3 |
40540-MFJ-D02 |
CHAIN, DRIVE (525ROZ6-120LJFZ) (RK EXCEL) (STANDARD LINK 112L) Price: $261.64 |
| 4 |
42305-MFL-000 |
COLLAR, L. RR. AXLE Price: $25.96 |
| 5 |
42306-MFL-000 |
COLLAR, R. RR. AXLE Price: $21.31 |
| 6 |
52101-MFJ-D00 |
BOLT, SWINGARM PIVOT Price: $62.13 |
| 7 |
52102-MJC-A00 |
COLLAR, SWINGARM PIVOT Price: $26.31 |
| 8 |
52106-MGC-D30 |
COLLAR B, PIVOT Price: $36.16 |
| 9 |
52108-MFJ-D00 |
BOLT, R. PIVOT ADJUSTING Price: $27.11 |
| 10 |
52170-MFJ-D00 |
SLIDER, CHAIN Price: $48.75 |
| 11 |
52171-MFJ-D00 |
WASHER, CHAIN SLIDER Price: $2.53 |
| 12 |
52200-MFJ-A40 |
SWINGARM SUB-ASSY., RR. Price: $1,239.62 |
| 13 |
52463-MJC-A00 |
COLLAR, CUSHION CONNECTING ROD Price: $11.15 |
| 14 |
90105-MY9-000 |
BOLT, FLANGE (6X18) Price: $3.35 |
| 15 |
90106-MCF-D00 |
BOLT, HEX. (8X50) Price: $2.76 |
| 16 |
90113-MAS-E00 |
BOLT, FLANGE (6MM) Price: $2.98 |
| 17 |
90306-MCS-G01 |
NUT, U (18MM) Price: $8.56 |
| 18 |
90309-357-000 |
NUT, HEX. (10MM) Price: $4.27 |
| 19 |
90355-MFJ-D00 |
NUT, SWINGARM PIVOT Price: $18.02 |
| 20 |
90401-KZ4-890 |
WASHER (18X32X2) Price: $5.62 |
| 21 |
90485-MB2-000 |
WASHER (6MM) Price: $2.29 |
| 22 |
91071-KV3-005 |
BEARING, NEEDLE (KOYO) Price: $30.15 |
| 23 |
91071-MBW-E11 |
BEARING, NEEDLE Price: $20.84 |
| 24 |
91071-MR7-003 |
BEARING, NEEDLE Price: $31.11 |
| 25 |
91072-MR7-003 |
BEARING, RADIAL BALL (20X37X9) Price: $21.82 |
| 26 |
91202-MR7-003 |
DUST SEAL (28X37X4) Price: $7.98 |
| 27 |
91262-KV3-831 |
DUST SEAL (17X24X5) (ARAI) Price: $7.78 |
