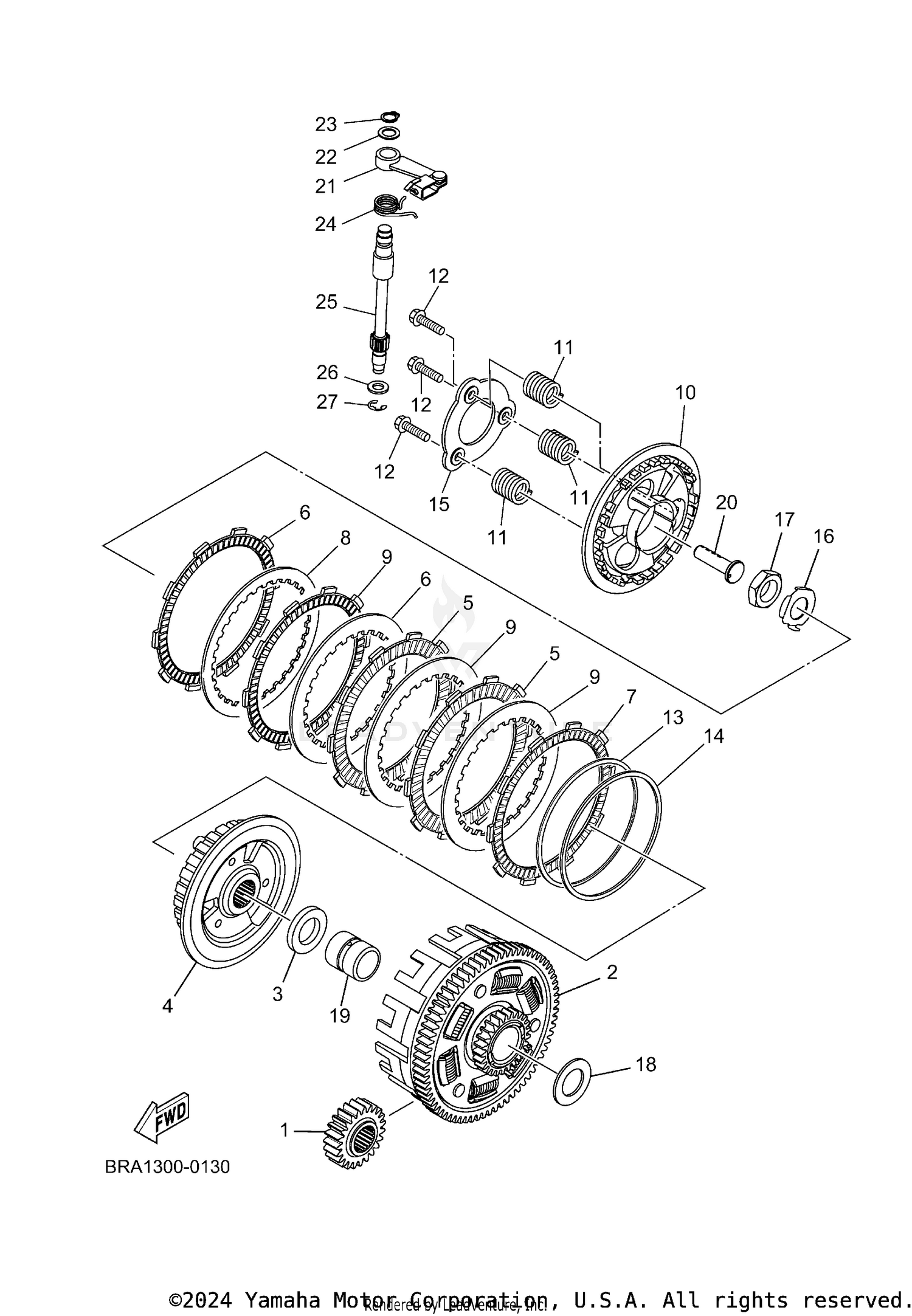

| Ref | Part Number | Description |
|---|
| 1 |
1WD-E6111-00-00 |
GEAR, PRIMARY DRIVE Price: $115.99 |
| 2 |
BRA-E6150-00-00 |
PRIMARY DRIVEN GEAR COMP. Price: $168.99 |
| 3 |
1WD-E6154-00-00 |
PLATE, THRUST 1 Price: $11.49 |
| 4 |
BRA-E6371-00-00 |
BOSS, CLUTCH Price: $53.99 |
| 5 |
BRA-E6321-00-00 |
PLATE, FRICTION Price: $19.99 |
| 6 |
BRA-E6331-00-00 |
PLATE, FRICTION 2 Price: $15.49 |
| 7 |
BRA-E6307-00-00 |
PLATE, FRICTION 3 Price: $15.49 |
| 8 |
BK6-E6324-00-00 |
PLATE, CLUTCH 1 Price: $4.15 |
| 9 |
BK6-E6325-00-00 |
PLATE, CLUTCH 2 Price: $4.15 |
| 10 |
BRA-E6350-00-00 |
PRESSURE PLATE ASSY Price: $60.99 |
| 11 |
BRA-E6333-00-00 |
SPRING, CLUTCH 1 Price: $4.10 |
| 12 |
BRA-E6337-00-00 |
SCREW, SPRING Price: $0.95 |
| 13 |
BRA-E6383-00-00 |
SPRING.,CUSHION Price: $16.99 |
| 14 |
BRA-E6384-00-00 |
PLATE, SEAT Price: $4.80 |
| 15 |
2CR-16352-00-00 |
PLATE, PRESSURE 2 Price: $9.49 |
| 16 |
90215-18800-00 |
WASHER, LOCK Price: $1.95 |
| 17 |
90170-18221-00 |
NUT Price: $16.49 |
| 18 |
90201-22013-00 |
WASHER, PLATE Price: $9.49 |
| 19 |
1WD-E6181-00-00 |
SPACER 1 Price: $19.49 |
| 20 |
1WD-E6356-00-00 |
ROD, PUSH 1 Price: $62.99 |
| 21 |
2MS-E6340-00-00 |
PUSH LEVER ASSY Price: $18.49 |
| 22 |
90201-10843-00 |
WASHER, PLATE Price: $1.15 |
| 23 |
99009-10400-00 |
CIRCLIP Price: $5.49 |
| 24 |
90508-18136-00 |
SPRING, TORSION Price: $3.50 |
| 25 |
1WD-16382-00-00 |
AXLE, PUSH LEVER Price: $47.99 |
| 26 |
92990-08600-00 |
WASHER, PLATE This part replaces 92902-08600-00. Price: $2.70 |
