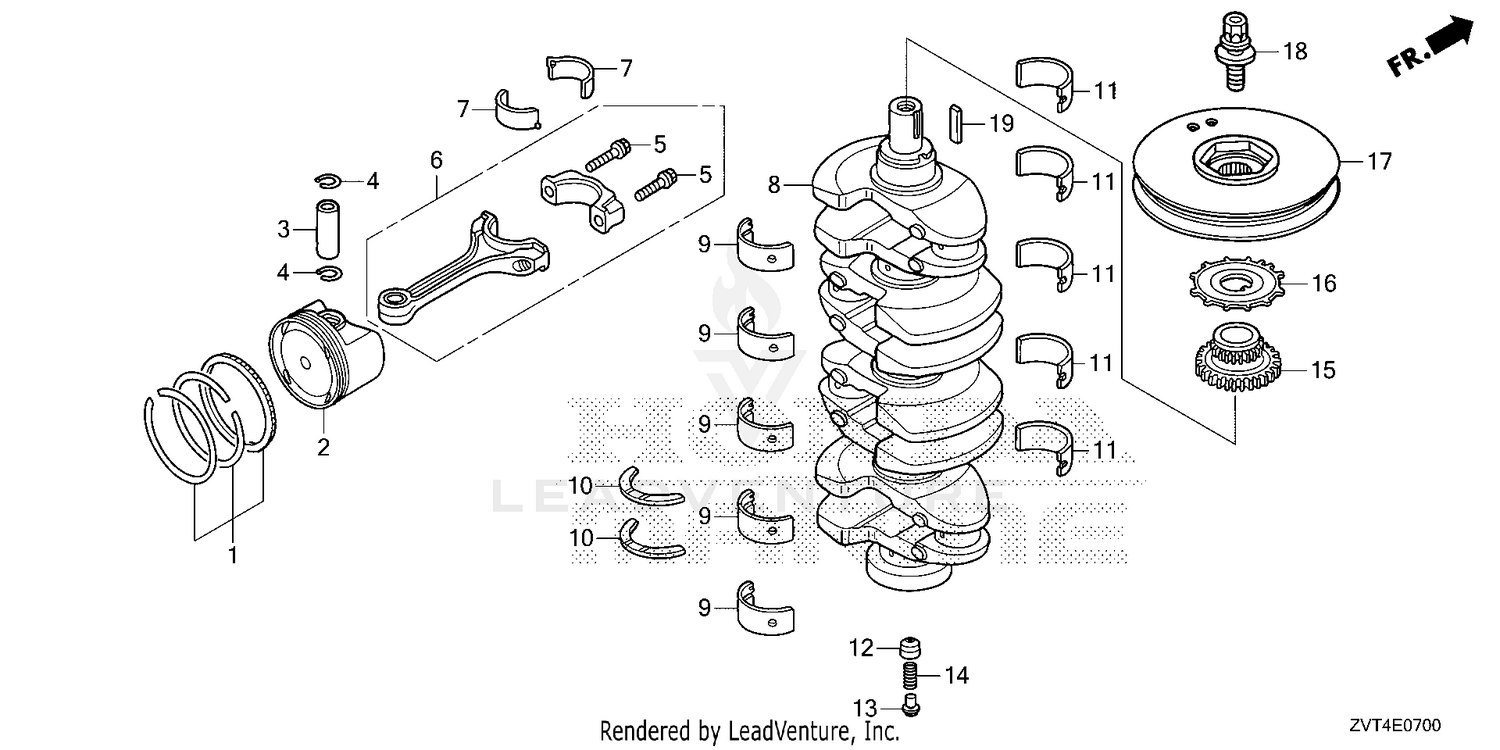

| Ref | Part Number | Description |
|---|
| 1 |
13010-ZY6-010 |
RING SET, PISTON (STD) Price: $72.40 |
| 2 |
13102-ZY6-000 |
PISTON B Price: $97.88 |
| 3 |
13111-PNA-010 |
PIN, PISTON Price: $31.46 |
| 4 |
13115-P5A-000 |
CLIP, PISTON PIN Price: $5.40 |
| 5 |
13204-5X6-J01 |
BOLT, CONNECTING ROD (SOURCE: VINTAGE PARTS INC.) Price: $12.62 |
| 6 |
13210-R40-A00 |
ROD, CONNECTING Price: $333.10 |
| 7 |
13211-ZY6-004 |
BEARING A, CONNECTING ROD (BLUE) Price: $17.26 |
| 7 |
13212-ZY6-004 |
BEARING B, CONNECTING ROD (BLACK) Price: $18.06 |
| 7 |
13213-ZY6-004 |
BEARING C, CONNECTING ROD (BROWN) Price: $18.06 |
| 7 |
13214-ZY6-004 |
BEARING D, CONNECTING ROD (GREEN) Price: $18.06 |
| 7 |
13215-ZY6-004 |
BEARING E, CONNECTING ROD (YELLOW) Price: $18.06 |
| 7 |
13216-ZY6-004 |
BEARING F, CONNECTING ROD (PINK) Price: $18.06 |
| 7 |
13217-ZY6-004 |
BEARING G, CONNECTING ROD (RED) Price: $17.26 |
| 8 |
13310-ZY6-010 |
CRANKSHAFT Price: $885.55 |
| 9 |
13321-ZVT-B11 |
BEARING A, MAIN Price: $16.44 |
| 9 |
13322-ZVT-B11 |
BRG B, MAIN (UPPER) Price: $16.44 |
| 9 |
13323-ZVT-B11 |
BRG C, MAIN (UPPER) Price: $16.44 |
| 9 |
13324-ZVT-B11 |
BRG D, MAIN (UPPER) Price: $16.44 |
| 9 |
13325-ZVT-B11 |
BRG E, MAIN (UPPER) Price: $16.44 |
| 9 |
13326-ZVT-B11 |
BEARING F, MAIN Price: $16.44 |
| 10 |
13331-ZY6-023 |
WASHER, THRUST Price: $11.16 |
| 11 |
13341-PNA-003 |
SEE PART DETAILS - PRI; BEARING A, MAIN (LOWER) (BLUE) (DAIDO) Price: $28.10 |
| 11 |
13342-PNA-003 |
SEE PART DETAILS - PRI; BEARING B, MAIN (LOWER) (BLACK) (DAIDO) Price: $28.10 |
| 11 |
13343-PNA-003 |
SEE PART DETAILS - PRI; BEARING C, MAIN (LOWER) (BROWN) (DAIDO) Price: $28.10 |
| 11 |
13344-PNA-003 |
SEE PART DETAILS - PRI; BEARING D, MAIN (LOWER) (GREEN) (DAIDO) Price: $28.10 |
| 11 |
13345-PNA-003 |
SEE PART DETAILS - PRI; BEARING E, MAIN (LOWER) (YELLOW) (DAIDO) Price: $28.10 |
| 11 |
13346-PNA-003 |
SEE PART DETAILS - PRI; BEARING F, MAIN (LOWER) (PINK) (DAIDO) Price: $28.12 |
| 12 |
13391-ZY3-010 |
SEE PART DETAILS - PRI; RETAINER, SPRING Price: $9.68 |
| 13 |
13392-ZY6-000 |
SEAT, SPRING (150) Price: $10.98 |
| 14 |
13398-ZY3-003 |
SPRING, SUPPORT Price: $5.06 |
| 15 |
13620-RAA-A02 |
SPROCKET, CHAIN DRIVE Price: $205.06 |
| 16 |
13622-PNA-003 |
PLATE, CRANK PULSER Price: $25.84 |
| 17 |
13811-ZY6-000 |
PULLEY, CRANKSHAFT Price: $106.30 |
| 18 |
90017-PCX-013 |
BOLT-WASHER (16X49) Price: $33.42 |
