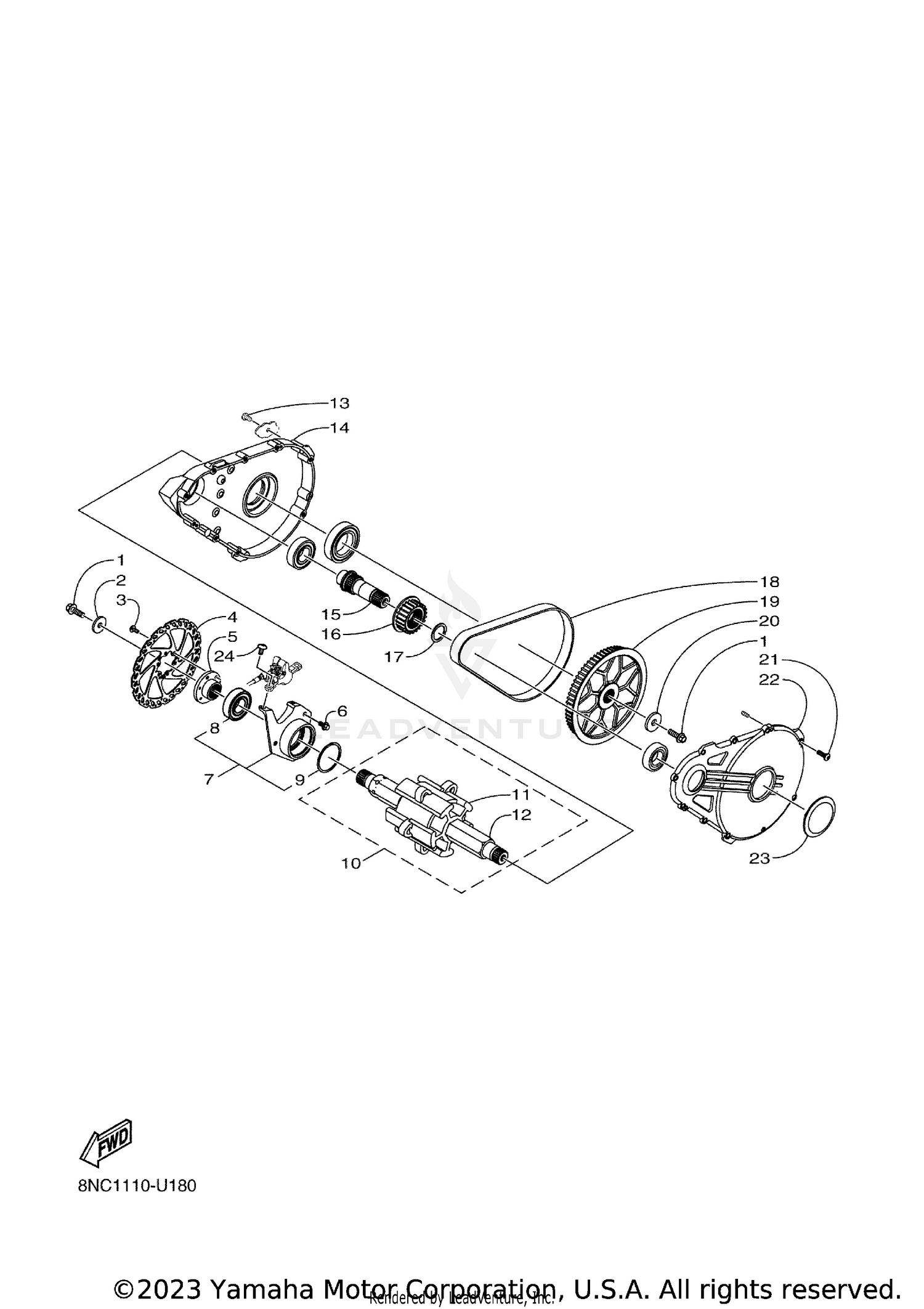

| Ref | Part Number | Description |
|---|
| 1 |
8JP-RA186-00-00 |
BOLT, FLANGE M8X1.25X25 Price: $0.65 |
| 2 |
8JM-RA401-00-00 |
WASHER, PLAIN 11/32 Price: $2.40 |
| 3 |
8JP-RA241-00-00 |
SCREW, M5X0.8X12 Price: $1.80 |
| 4 |
8ML-F581U-00-00 |
DISC BRAKE ASSY (RIGHT) Price: $46.99 |
| 5 |
8ML-F5111-00-00 |
HUB, FRONT Price: $35.99 |
| 6 |
8JP-RA179-00-00 |
BOLT, FLANGE M6X1.0X12 Price: $2.25 |
| 7 |
8ML-F5110-00-00 |
HUB ASSY, FRONT Price: $90.99 |
| 8 |
8ML-RAG07-00-00 |
BEARING, 6206 Price: $33.99 |
| 9 |
8ML-RAH03-00-00 |
CIRCLIP, 1 Price: $1.60 |
| 10 |
8ML-G7501-00-00 |
FRONT AXLE SUB-ASSY Price: $148.99 |
| 11 |
8ML-G7531-00-00 |
WHEEL, SPROCKET 1 Price: $42.99 |
| 12 |
8ML-G7511-00-00 |
AXLE, FRONT Price: $135.99 |
| 13 |
8KC-RA200-00-00 |
SCREW, M6-16 Price: $3.65 |
| 14 |
8ML-G6365-00-00 |
CASE, GEAR Price: $151.99 |
| 15 |
8ML-G8242-00-00 |
SHAFT, DRIVE Price: $341.99 |
| 16 |
8ML-G6256-00-00 |
PULLEY 1 Price: $23.99 |
| 17 |
8ML-RA444-00-00 |
WASHER, 12X26X1 Price: $0.50 |
| 18 |
8ML-G6241-00-00 |
BELT Price: $138.99 |
| 19 |
8ML-G6257-00-00 |
PULLEY 2 Price: $130.99 |
| 20 |
8ML-RA401-00-00 |
WASHER, PLAIN 11/32 Price: $9.49 |
| 21 |
8ML-RA200-00-00 |
SCREW,M6-16 Price: $0.05 |
| 22 |
8ML-G7721-00-00 |
COVER, HOUSING Price: $86.99 |
| 23 |
8ML-G7339-00-00 |
PLUG Price: $9.49 |
