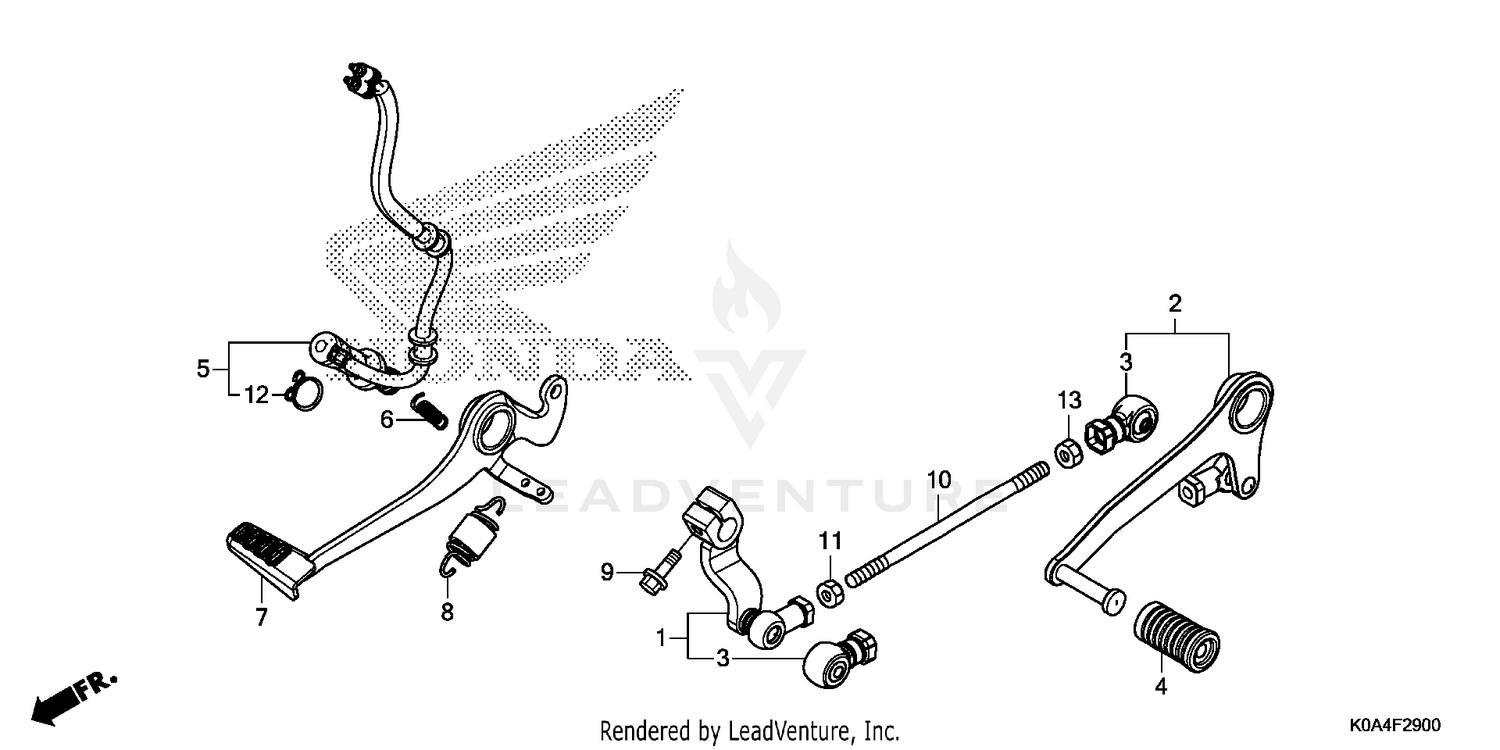

| Ref | Part Number | Description |
|---|
| 1 |
24710-K0A-E10 |
ARM, GEARSHIFT Price: $35.16 |
| 2 |
24720-K0A-E10 |
PEDAL, GEARSHIFT Price: $24.49 |
| 3 |
24724-MBW-D21 |
COVER, DUST Price: $8.76 |
| 4 |
24781-KR3-770 |
RUBBER, GEARSHIFT PEDAL Price: $4.25 |
| 5 |
35350-K94-T11 |
SWITCH ASSY., RR. STOP Price: $29.95 |
| 6 |
35357-HP0-A00 |
SPRING, STOP SWITCH Price: $2.93 |
| 7 |
46500-K94-T00 |
PEDAL, BRAKE Price: $27.31 |
| 8 |
46511-KZ4-J00 |
SPRING ASSY., RR. BRAKE RETURN Price: $9.38 |
| 9 |
90010-ML0-720 |
BOLT, FLANGE (6X20) Price: $3.62 |
| 10 |
90165-K0A-E10 |
BOLT, TIE ROD Price: $4.40 |
| 11 |
90301-KYJ-900 |
NUT, SPECIAL (6MM) (LEFT HAND THREAD) Price: $2.60 |
| 12 |
90601-KAF-003 |
CLIP, SWITCH COVER Price: $3.05 |
