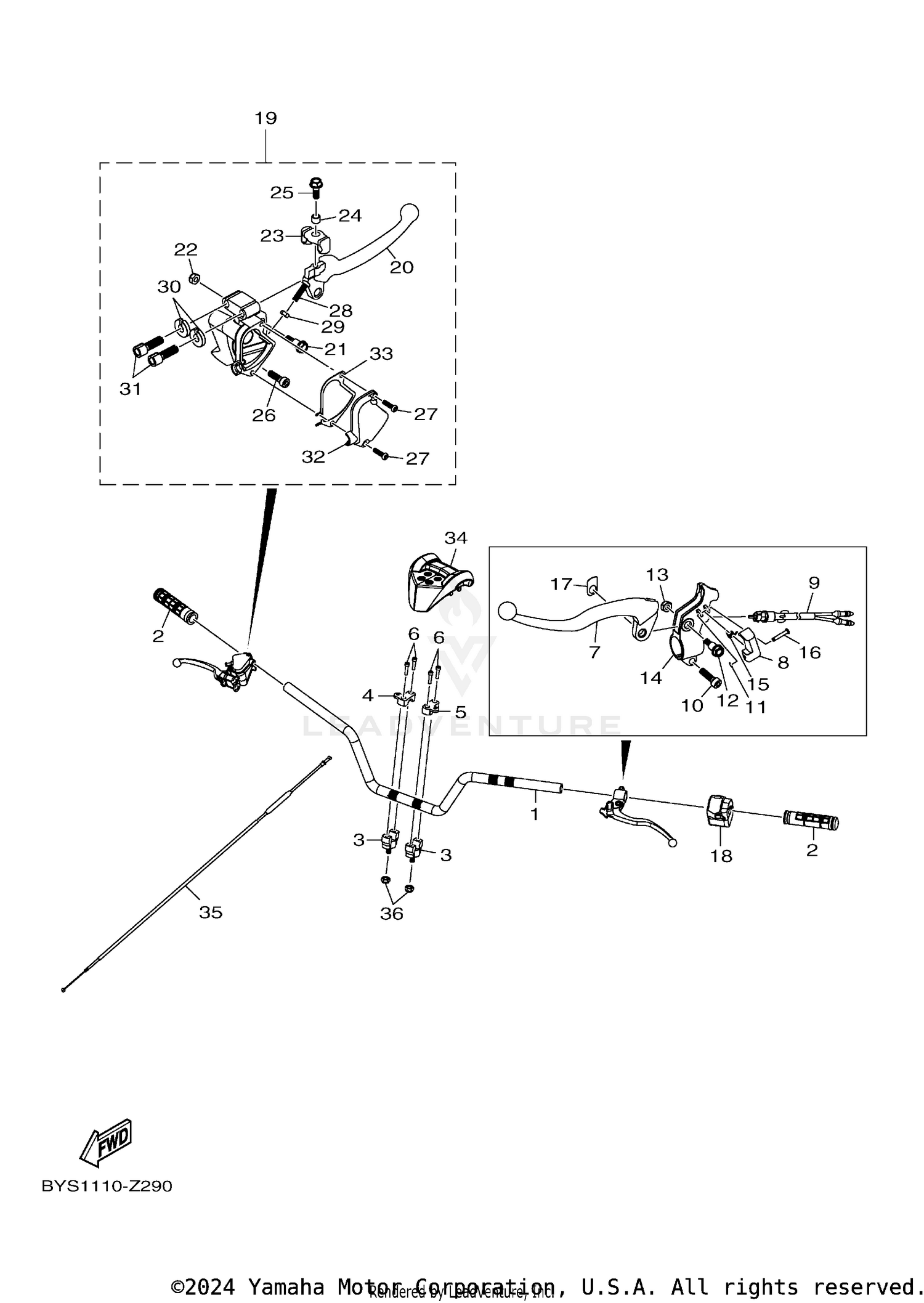

| Ref | Part Number | Description |
|---|
| 1 |
BD3-F6111-00-00 |
HANDLEBAR Price: $104.99 |
| 2 |
BD3-F6241-10-00 |
GRIP Price: $12.49 |
| 3 |
BD3-F3442-00-00 |
HOLDER, HANDLE LOWER Price: $62.99 |
| 4 |
BD3-F3441-00-00 |
HOLDER, HANDLE UPPER Price: $28.99 |
| 5 |
BD3-F344A-00-00 |
HOLDER, HANDLE UPPER 1 Price: $29.99 |
| 6 |
BD3-F7434-10-00 |
BOLT Price: $4.20 |
| 7 |
BD3-H3912-00-00 |
LEVER 1 Price: $66.99 |
| 8 |
BD3-H3965-00-00 |
LEVER, LOCK Price: $27.99 |
| 9 |
BD3-H2550-00-00 |
ENGINE STOP SWITCH ASSY Price: $46.99 |
| 10 |
BD3-F3471-00-00 |
BOLT Price: $5.49 |
| 11 |
BD3-F6466-00-00 |
RING, SNAP Price: $4.25 |
| 12 |
BD3-F2277-00-00 |
BOLT Price: $15.49 |
| 13 |
BD3-F3833-00-00 |
NUT 1 Price: $11.49 |
| 14 |
BD3-H2911-10-00 |
HOLDER, LEVER 1 Price: $50.99 |
| 15 |
BD3-H3966-00-00 |
SPRING, RETURN Price: $10.49 |
| 16 |
BD3-H3967-00-00 |
PIN, LOCK 1 Price: $11.49 |
| 17 |
BD3-F3444-00-00 |
WASHER Price: $22.99 |
| 18 |
BYS-H3975-00-00 |
SWITCH, HANDLE 2 Price: $158.99 |
| 19 |
BYS-F6250-00-00 |
THROTTLE LEVER ASSY Price: $340.99 |
| 20 |
BD3-H3922-00-00 |
LEVER 2 Price: $68.99 |
| 21 |
BD3-F1739-00-00 |
BOLT Price: $12.49 |
| 22 |
BD3-F3833-00-00 |
NUT 1 Price: $11.49 |
| 23 |
BD3-F6347-00-00 |
JOINT, CABLE Price: $86.99 |
| 24 |
BD3-F7213-00-00 |
COLLAR Price: $10.49 |
| 25 |
BD3-F6382-00-00 |
BOLT, AJUSTING Price: $8.49 |
| 26 |
BD3-F3471-00-00 |
BOLT Price: $5.49 |
| 27 |
BD3-H1145-00-00 |
SCREW 1 Price: $4.20 |
| 29 |
BD3-F3357-00-00 |
NUT Price: $4.20 |
| 30 |
BD3-F1968-00-00 |
NUT Price: $19.49 |
| 31 |
BD3-F3346-00-00 |
BOLT 1 Price: $32.99 |
| 32 |
BD3-F628F-00-00 |
CAP, GEAR Price: $45.99 |
| 33 |
BD3-F628G-00-00 |
GASKET Price: $25.99 |
| 34 |
BYS-F6124-00-00 |
PROTECTOR, HANDLEBAR Price: $82.99 |
| 35 |
D96-F6311-00-00 |
WIRE, THROTTLE 1 Price: $52.99 |
