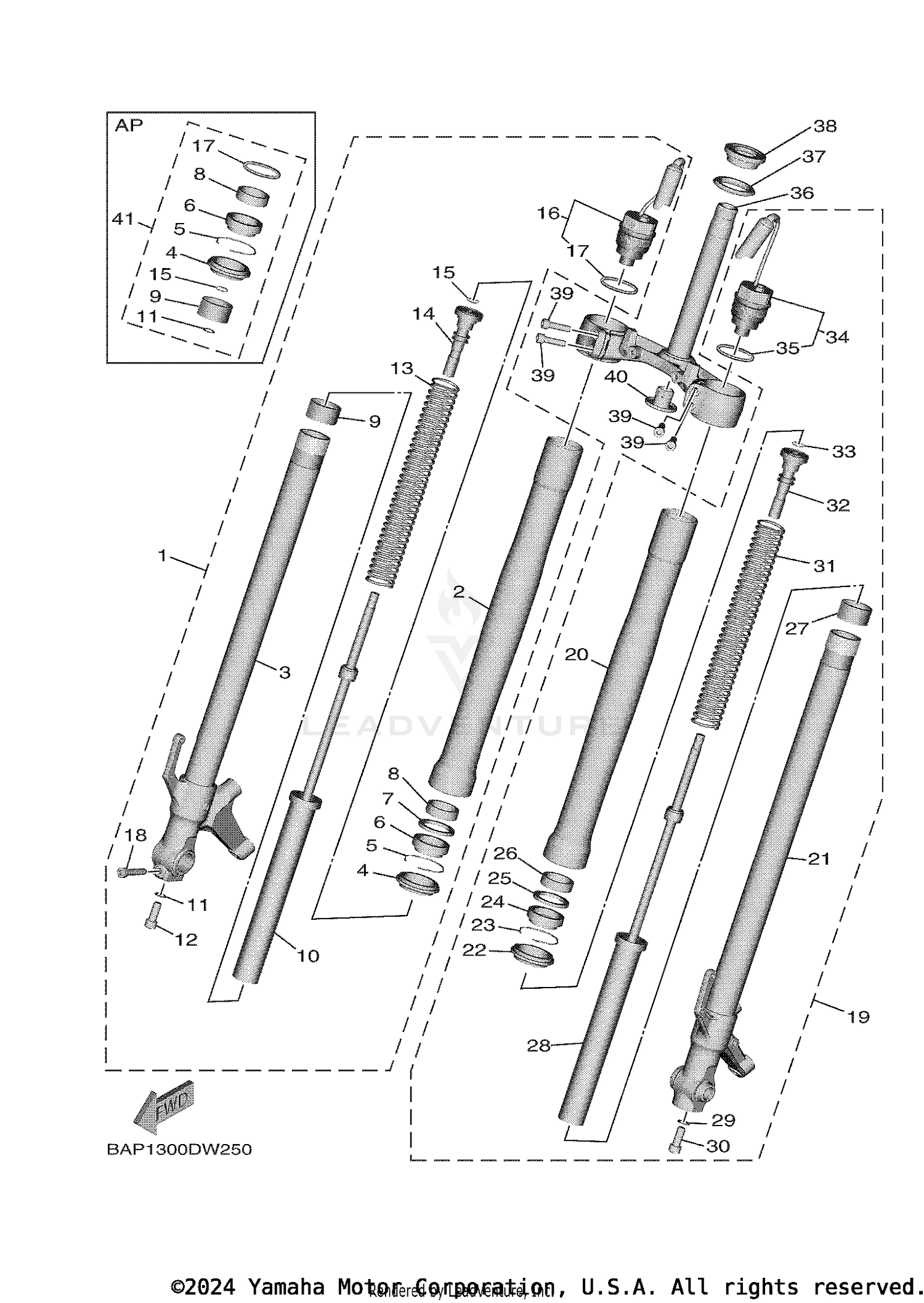

| Ref | Part Number | Description |
|---|
| 1 |
BAP-23103-00-00 |
FRONT FORK ASSY (R Price: $1,387.99 |
| 2 |
B5U-23126-10-00 |
TUBE, OUTER (L.H) Price: $360.99 |
| 3 |
BAP-23120-00-00 |
INNER TUBE COMP.2 Price: $339.99 |
| 4 |
4EB-23144-00-00 |
SEAL, DUST Price: $24.99 |
| 5 |
26H-23156-00-00 |
CLIP, OIL SEAL Price: $8.49 |
| 6 |
4EB-23145-01-00 |
OIL SEAL Price: $31.99 |
| 7 |
36Y-23146-10-00 |
WASHER, OIL SEAL Price: $30.99 |
| 8 |
1RC-23125-00-00 |
METAL, SLIDE 1 Price: $16.49 |
| 9 |
4FM-23171-40-00 |
METAL, SLIDE Price: $25.99 |
| 10 |
BAP-23170-10-00 |
CYLINDER COMP., FR Price: $1,033.99 |
| 12 |
3D8-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 278-23181-50-00. Price: $9.49 |
| 13 |
BAP-23141-00-00 |
SPRING, FRONT FORK Price: $72.99 |
| 14 |
BAP-23117-00-00 |
GUIDE, SPRING Price: $10.49 |
| 15 |
BAP-23188-00-00 |
O-RING Price: $1.95 |
| 16 |
BAP-23111-00-00 |
BOLT, CAP Price: $344.99 |
| 17 |
39P-23147-00-00 |
O-RING Price: $9.49 |
| 18 |
91314-08040-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 19 |
BAP-23102-00-00 |
FRONT FORK ASSY (L Price: $1,541.99 |
| 20 |
B5U-23126-10-00 |
TUBE, OUTER (L.H) Price: $360.99 |
| 21 |
BAP-23110-00-00 |
INNER TUBE COMP.1 Price: $339.99 |
| 22 |
4EB-23144-00-00 |
SEAL, DUST Price: $24.99 |
| 23 |
26H-23156-00-00 |
CLIP, OIL SEAL Price: $8.49 |
| 24 |
4EB-23145-01-00 |
OIL SEAL Price: $31.99 |
| 25 |
36Y-23146-10-00 |
WASHER, OIL SEAL Price: $30.99 |
| 26 |
1RC-23125-00-00 |
METAL, SLIDE 1 Price: $16.49 |
| 27 |
4FM-23171-40-00 |
METAL, SLIDE Price: $25.99 |
| 28 |
BAP-23170-00-00 |
CYLINDER COMP., FR Price: $1,033.99 |
| 30 |
3D8-23181-00-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 278-23181-50-00. Price: $9.49 |
| 31 |
BAP-23141-00-00 |
SPRING, FRONT FORK Price: $72.99 |
| 32 |
BAP-23117-00-00 |
GUIDE, SPRING Price: $10.49 |
| 33 |
BAP-23188-00-00 |
O-RING Price: $1.95 |
| 34 |
BAP-23111-00-00 |
BOLT, CAP Price: $344.99 |
| 35 |
39P-23147-00-00 |
O-RING Price: $9.49 |
| 36 |
B5U-23340-00-00 |
UNDER BRACKET COMP Price: $431.99 |
| 37 |
3FV-23462-00-00 |
SEAL, STEERING Price: $26.99 |
| 38 |
93399-99957-00 |
BEARING Price: $76.99 |
| 39 |
91314-08030-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.55 |
| 40 |
4KM-23123-01-00 |
COVER, LOWER 1 Price: $15.49 |
