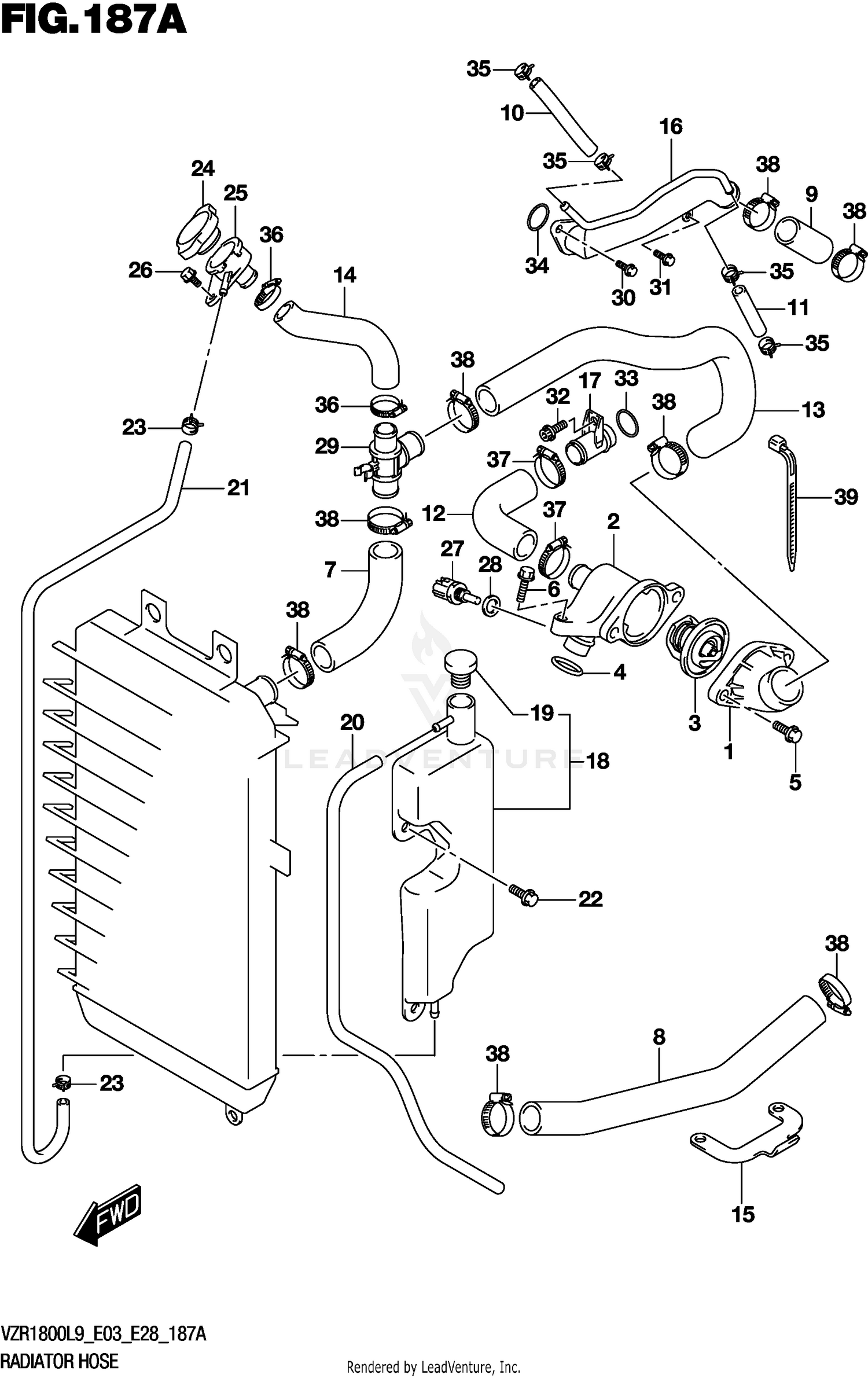

| Ref | Part Number | Description |
|---|
| 1 |
17661-48G10 |
COVER,THERMOSTAT Price: $32.23 |
| 2 |
17662-48G00 |
CONNECTOR,THERMOSTAT INLET Price: $105.80 |
| 3 |
17670-06G51 |
THERMOSTAT,WATER This part replaces 17670-06G50. Price: $31.83 |
| 4 |
09280-18009 |
O RING (D:3.2,ID:17.8) This part replaces 09280-18008. Price: $7.10 |
| 5 |
01547-0620A |
BOLT Price: $2.45 |
| 6 |
01547-0625A |
BOLT Price: $2.45 |
| 7 |
17851-48G00 |
HOSE,RADIATOR INLET Price: $24.00 |
| 8 |
17852-48G00 |
HOSE,RADIATOR OUTLET Price: $47.19 |
| 9 |
17853-48G00 |
HOSE,CYLINDER INLET Price: $12.27 |
| 10 |
17854-48G00 |
HOSE,WATER BYPASS UPPER Price: $15.95 |
| 11 |
17855-48G00 |
HOSE,WATER BYPASS LOWER Price: $7.62 |
| 12 |
17856-48G00 |
HOSE,REAR CYL HEAD OUTLET Price: $17.46 |
| 13 |
17857-48G10 |
HOSE,THERMOSTAT OUTLET Price: $55.07 |
| 14 |
17858-48G00 |
HOSE,CONDUCTION Price: $19.54 |
| 15 |
17859-48G00 |
BRACKET,HOSE GUIDE Price: $7.53 |
| 16 |
17860-48G00 |
PIPE,CYL WATER INLET Price: $189.20 |
| 17 |
17890-06G20 |
UNION,CONNECTOR HOSE Price: $18.34 |
| 18 |
17910-48G00 |
TANK ASSY,RESERVOIR Price: $81.09 |
| 21 |
17981-48G00 |
HOSE,RSVR TANK INLET Price: $26.01 |
| 22 |
09111-06085 |
BOLT (6X12) Price: $5.61 |
| 23 |
09401-08411 |
CLIP (ID:8.6) Price: $2.15 |
| 24 |
17730-08J00 |
CAP, RADIATOR Price: $52.50 |
| 25 |
17791-24D00 |
CONDUCTION,RDTR Price: $66.06 |
| 26 |
01550-0612A |
BOLT Price: $2.37 |
| 27 |
13650-10G00 |
SENSOR,WATER TEMP Price: $107.76 |
| 28 |
09168-12017 |
GASKET (12X17X1) Price: $2.37 |
| 29 |
17891-48G00 |
JOINT,THREE WAY Price: $12.29 |
| 30 |
09103-06274 |
BOLT (6X16) Price: $2.45 |
| 31 |
09103-06280 |
BOLT (6X12) Price: $3.20 |
| 32 |
07130-0612A |
BOLT Price: $3.02 |
| 33 |
09280-18009 |
O RING (D:3.2,ID:17.8) This part replaces 09280-18008. Price: $7.10 |
| 34 |
09280-26005 |
O-RING (D:2.4,ID:26.2) Price: $2.79 |
| 35 |
09401-12414 |
CLIP Price: $4.02 |
| 36 |
09402-28513 |
CLAMP Price: $8.51 |
| 37 |
09402-32512 |
CLAMP Price: $13.50 |
| 38 |
09402-38512 |
CLAMP Price: $14.48 |
