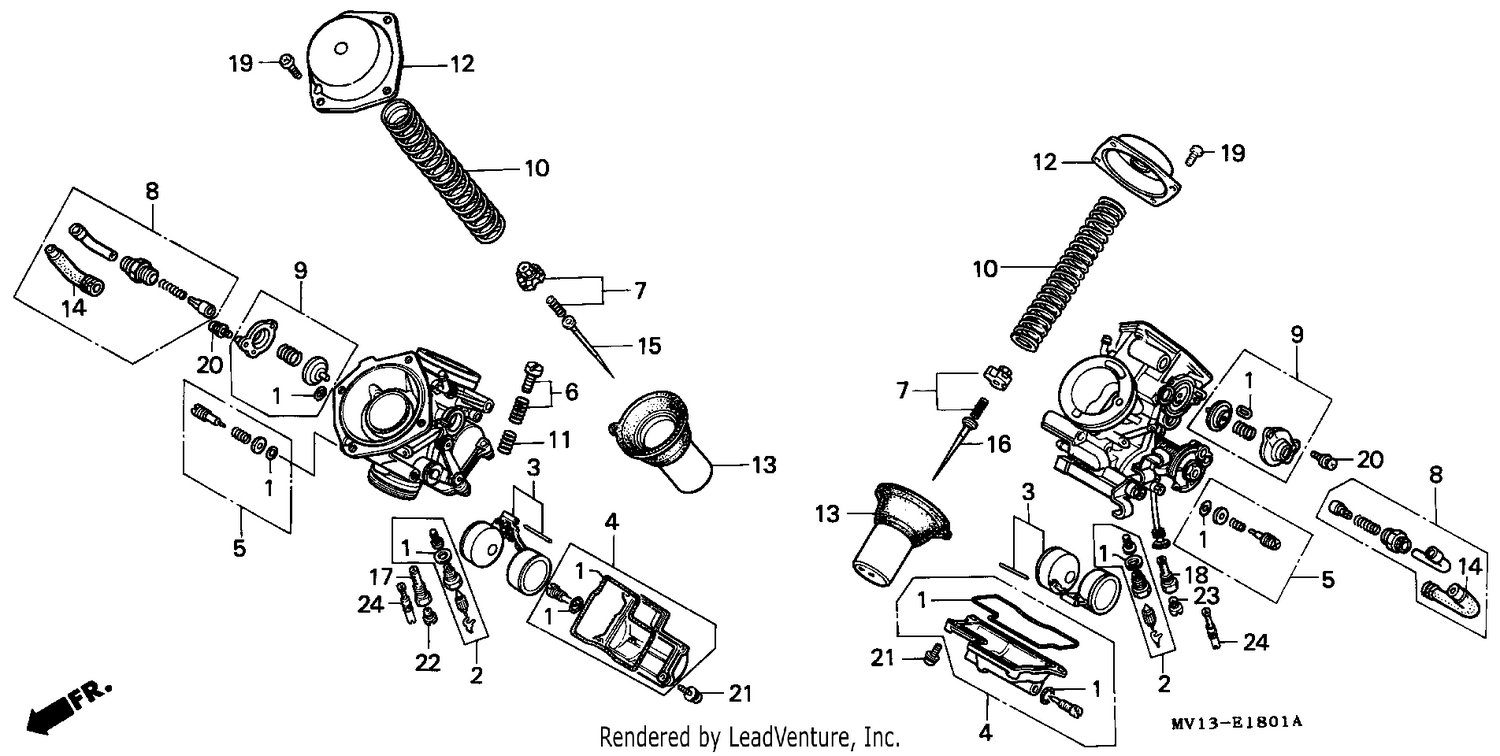

CARBURETOR (COMPONENT PARTS)

CARBURETOR (COMPONENT PARTS)

Parts (23)

RefPart NumberDescription
1 16010MV1700 GASKET SET Price: Call Us
2 16011MV1700 VALVE SET, FLOAT Price: Call Us
3 16013ML7004 FLOAT SET Price: Call Us
4 16015MV1700 CHAMBER SET, FLOAT Price: Call Us
5 16016MV1630 SCREW SET Price: Call Us
6 16029MN4003 SCREW SET Price: Call Us
7 16037MB4671 PLATE SET, VALVE Price: Call Us
8 16046MN8004 VALVE SET, STARTER Price: Call Us
9 16048MR1004 VALVE SET, AIR CUT Price: Call Us
10 16050MS9004 SPRING Price: Call Us
11 16052ME9672 SPRING Price: Call Us
12 16107MM8004 TOP COMP. Price: Call Us
13 16112MB6881 PISTON COMP., VACUUM Price: Call Us
14 16118ME9671 CAP, CABLE SEALING Price: Call Us
15 16151MM9621 NEEDLE COMP., JET (RR.) Price: Call Us
16 16151MV1700 NEEDLE COMP., JET Price: Call Us
17 16165MF5671 HOLDER, NEEDLE JET Price: Call Us
18 16165MV1630 HOLDER, NEEDLE JET Price: Call Us
19 93500040101A SCREW, PAN, 4X10 Price: Call Us
20 938920401210 SCREW-WASHER, 4X12 Price: Call Us
21 938920401610 SCREW-WASHER, 4X16 Price: Call Us
22 991013931180 JET, MAIN, #118 Price: Call Us
23 991013931220 JET, MAIN, #122 Price: Call Us
