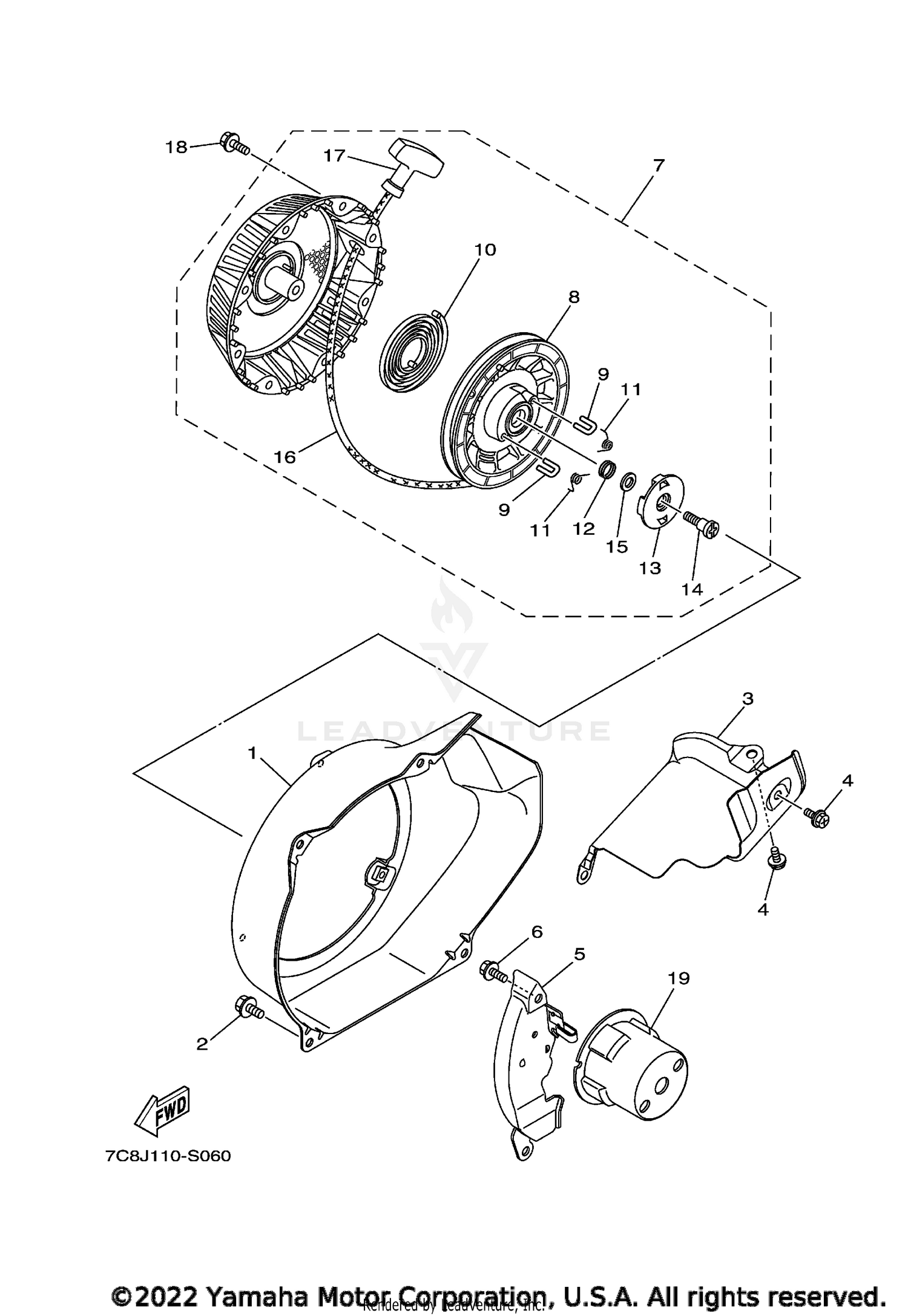

| Ref | Part Number | Description |
|---|
| 1 |
7DB-E2621-00-00 |
CASE, FAN Price: $42.99 |
| 2 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95802-06012-00. Price: $1.95 |
| 3 |
7DB-E2651-00-00 |
AIR SHROUD, CYLINDER Price: $37.99 |
| 4 |
95812-06010-00 |
BOLT, FLANGE This part replaces 95802-06010-00. Price: $3.20 |
| 5 |
7DB-E262E-00-00 |
SHROUD, 2 Price: $9.49 |
| 6 |
95817-06012-00 |
BOLT, FLANGE This part replaces 95802-06012-00. Price: $1.95 |
| 7 |
7DB-E5710-00-00 |
STARTER ASSY Price: $75.99 |
| 8 |
7DB-E5714-00-00 |
DRUM, SHEAVE Price: $17.49 |
| 9 |
7DB-E5741-00-00 |
PAWL, DRIVE Price: $6.49 |
| 10 |
7DB-E5713-00-00 |
SPRING, STARTER Price: $17.49 |
| 11 |
7DB-E5715-00-00 |
SPRING, FRICTION Price: $4.70 |
| 12 |
7DB-E5743-00-00 |
SPRING, RETURN Price: $4.70 |
| 13 |
7DB-E5716-00-00 |
PLATE, DRIVE Price: $7.49 |
| 14 |
7HC-E5793-00-00 |
SCREW Price: $4.20 |
| 15 |
7DB-E5719-00-00 |
WASHER, THRUST Price: $6.49 |
| 16 |
7CN-E5751-00-00 |
WIRE, STARTER Price: $16.49 |
| 17 |
7CN-E5755-00-00 |
HANDLE, STARTER Price: $10.49 |
| 18 |
90105-068C0-00 |
BOLT, FLANGE Price: $2.25 |
