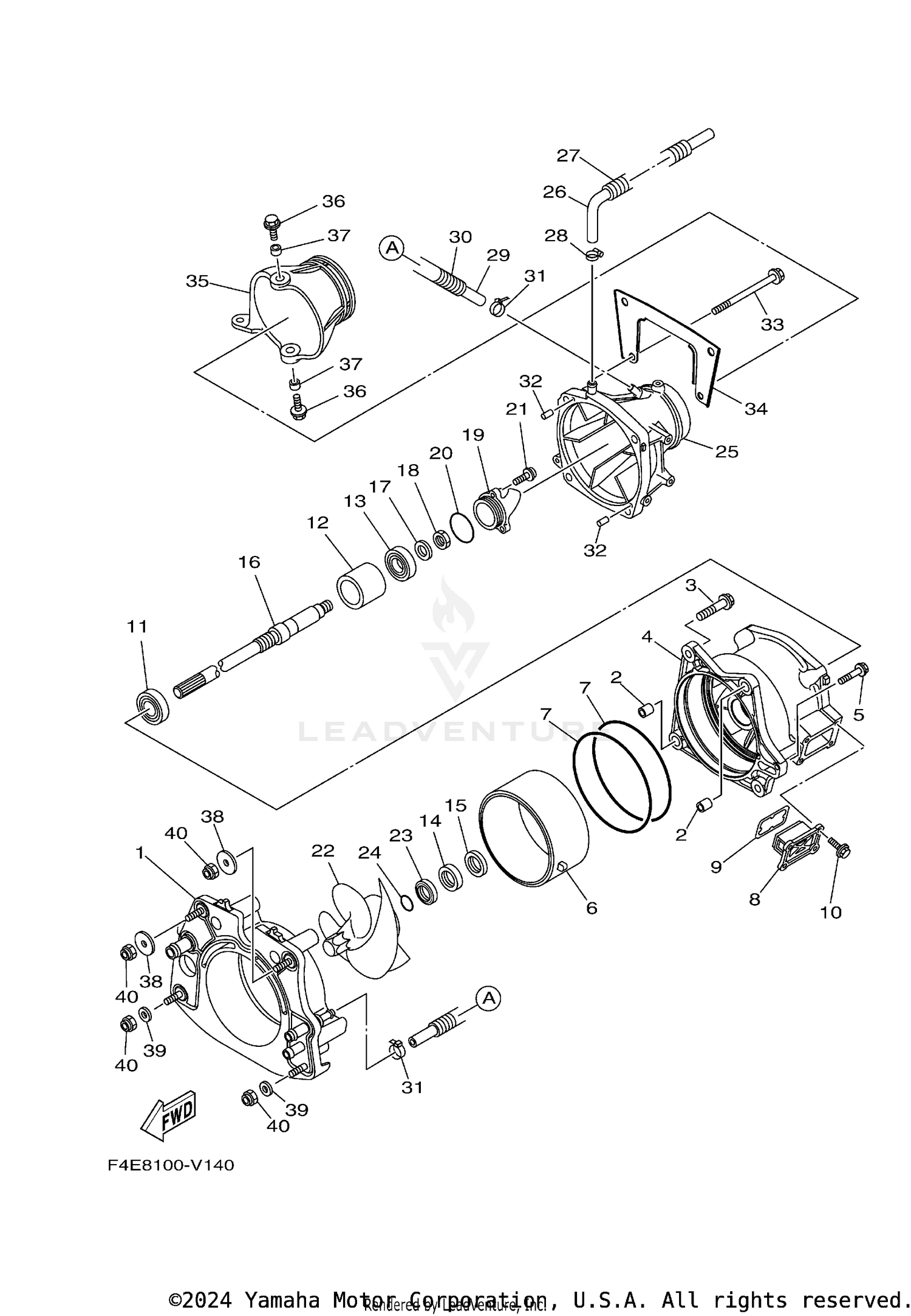

| Ref | Part Number | Description |
|---|
| 1 |
6CS-G5831-20-00 |
PLATE, TRANSOM Price: $163.99 |
| 2 |
99590-14016-00 |
PIN, DOWEL Price: $4.60 |
| 3 |
90119-10811-00 |
BOLT,WITH WASHER This part replaces 90119-10810-00. Price: $1.99 |
| 4 |
6HM-R1312-10-00 |
HOUSING, IMPELLER This part replaces 6HM-R1312-00-00. Price: $200.99 |
| 5 |
90119-06894-00 |
BOLT, WITH WASHER This part replaces 90119-06893-00. Price: $1.99 |
| 6 |
6HH-R1337-00-00 |
SLEEVE, IMPELLER Price: $141.99 |
| 8 |
6GN-G6882-00-00 |
FILTER Price: $15.99 |
| 9 |
66V-42414-00-00 |
O-RING Price: $6.99 |
| 10 |
90119-06890-00 |
BOLT,WITH WASHER This part replaces 90119-06889-00. Price: $2.99 |
| 11 |
93306-206Y7-00 |
BEARING Price: $20.99 |
| 12 |
6CS-G5538-00-00 |
SPACER 1 Price: $46.99 |
| 13 |
93306-355Y0-00 |
BEARING Price: $25.99 |
| 14 |
93102-31009-00 |
OIL SEAL Price: $80.49 |
| 15 |
93101-31001-00 |
OIL SEAL Price: $32.99 |
| 16 |
6S5-G5511-00-00 |
SHAFT, DRIVE This part replaces 6S5-45511-00-00. Price: $352.99 |
| 17 |
92990-20600-00 |
WASHER Price: $5.49 |
| 18 |
95312-20700-00 |
NUT (98812-20300) Price: $13.99 |
| 19 |
6AN-R1326-00-00 |
CAP Price: $29.99 |
| 20 |
93210-54010-00 |
O-RING Price: $2.99 |
| 21 |
90110-06823-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06822-00. Price: $6.99 |
| 22 |
6AP-R1321-20-00 |
IMPELLER Price: $234.99 |
| 23 |
6BH-R1348-00-00 |
SPACER Price: $33.99 |
| 24 |
93210-30611-00 |
O-RING Price: $14.49 |
| 25 |
6EX-R1318-01-00 |
NOZZLE Price: $98.99 |
| 26 |
6CN-U72M2-00-00 |
HOSE 1 Price: $10.99 |
| 27 |
90446-24M46-00 |
HOSE (L175) Price: $5.99 |
| 28 |
90601-118UF-00 |
BAND, HOSE 18 Price: $6.99 |
| 29 |
90445-14807-00 |
HOSE (L355) Price: $2.99 |
| 30 |
90446-20MF5-00 |
HOSE (L320) Price: $4.80 |
| 31 |
90465-10098-00 |
CLAMP This part replaces 90465-11829-00. Price: $2.70 |
| 32 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 33 |
90119-10811-00 |
BOLT,WITH WASHER This part replaces 90119-10810-00. Price: $1.99 |
| 34 |
6EY-R1959-00-00 |
BRACKET Price: $20.99 |
| 35 |
6EX-R1313-00-00 |
NOZZLE, DEFLECTOR Price: $29.99 |
| 36 |
90119-08841-00 |
BOLT, WITH WASHER This part replaces 90119-08840-00. Price: $2.99 |
| 37 |
90387-08M06-00 |
COLLAR Price: $12.49 |
| 38 |
F1S-U725E-01-00 |
WASHER Price: $13.99 |
| 39 |
90201-10801-00 |
WASHER, PLATE Price: $7.99 |
