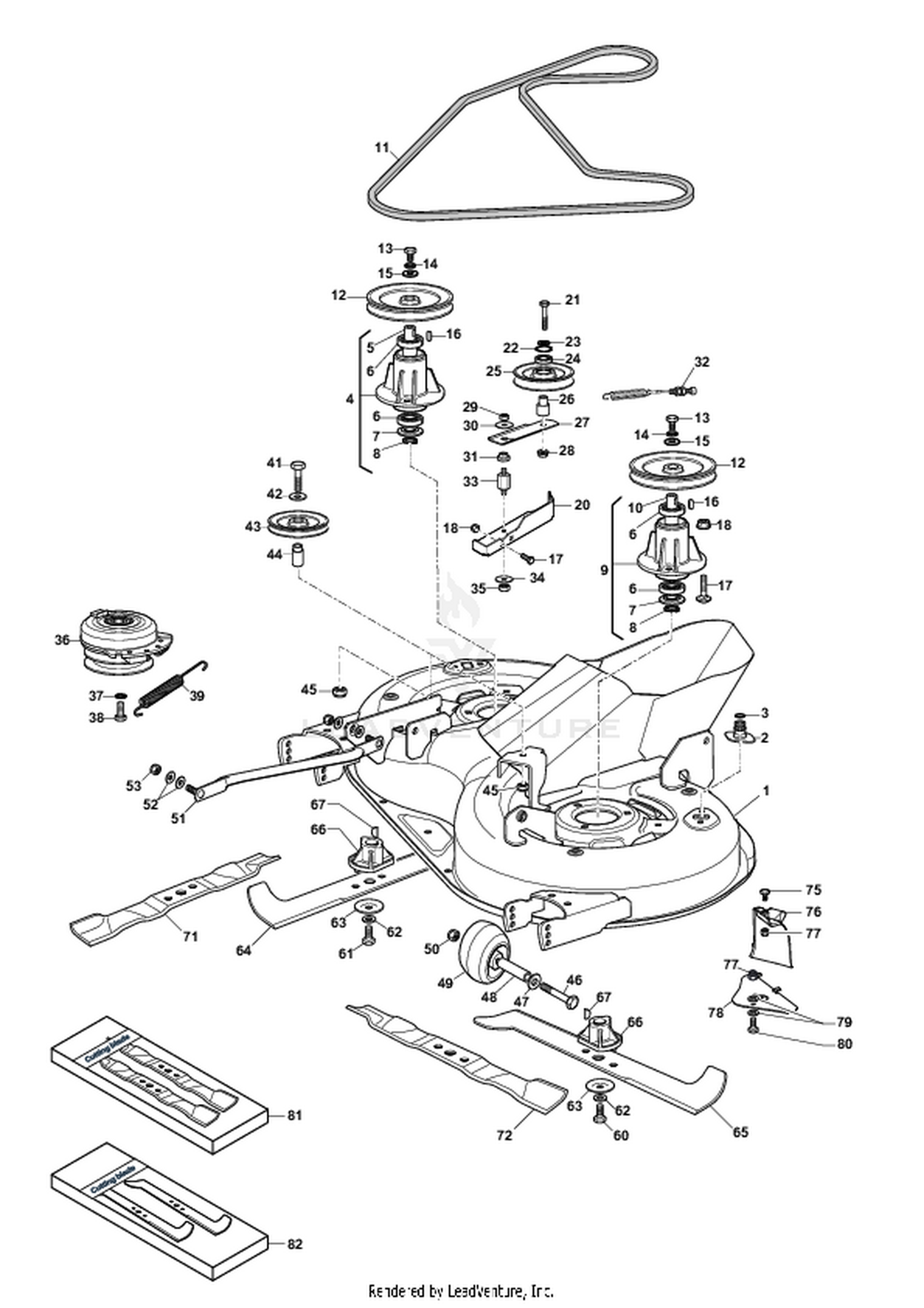

Cutting Plate with Electromagnetic Clutch
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 382564113/1 | Cutting Plate Black This part replaces 382564113/0. Price: Call Us |
| 2 | 325033086/0 | Water Hose Connection Price: Call Us |
| 3 | 119035000/0 | Or Ring Price: Call Us |
| 5 | 125020805/0 | Right Blade Shaft Price: Call Us |
| 7 | 325160501/1 | Dust Cover Disc This part replaces 325160501/0. Price: Call Us |
| 8 | 112609260/0 | Seeger Price: Call Us |
| 10 | 125020804/0 | Blade Shaft Price: Call Us |
| 11 | 135061508/0 | Drive Belt Price: Call Us |
| 12 | 125601585/1 | Pulley Price: Call Us |
| 13 | 112793102/0 | Screw Price: Call Us |
| 14 | 112540260/0 | Washer Price: Call Us |
| 15 | 125670007/0 | Washer Price: Call Us |
| 16 | 112139480/0 | Feather Price: Call Us |
| 17 | 112818690/0 | Screw Price: Call Us |
| 18 | 112154210/0 | Nut Price: Call Us |
| 20 | 325785391/0 | Bracket Price: Call Us |
| 21 | 112691400/0 | Screw Price: Call Us |
| 22 | 112524010/0 | Washer Price: Call Us |
| 23 | 112610800/0 | Seeger Price: Call Us |
| 25 | 125601595/0 | Pulley Price: Call Us |
| 26 | 125160052/0 | Spacer Price: Call Us |
| 27 | 325318289/0 | Lever Price: Call Us |
| 28 | 112293201/0 | Nut Price: Call Us |
| 29 | 112155020/0 | Nut Price: Call Us |
| 30 | 125670022/0 | Washer Price: Call Us |
| 31 | 125040635/0 | Bushing Price: Call Us |
| 32 | 382004618/0 | Wire Price: Call Us |
| 33 | 125160049/0 | Spacer Price: Call Us |
| 34 | 112523080/0 | Washer Price: Call Us |
| 35 | 112156602/0 | Nut Price: Call Us |
| 37 | 112543000/0 | Washer Price: Call Us |
| 38 | 112737320/0 | Screw Price: Call Us |
| 39 | 125430277/1 | Spring This part replaces 125430277/0. Price: Call Us |
| 41 | 112691115/0 | Screw Price: Call Us |
| 42 | 112523060/0 | Washer Price: Call Us |
| 44 | 125160069/0 | Spacer Price: Call Us |
| 44 | 125160110/0 | Spacer This part replaces 125160082/0. Price: Call Us |
| 45 | 112155000/0 | Nut Price: Call Us |
| 46 | 112692100/0 | Screw Price: Call Us |
| 47 | 112521350/0 | Washer Price: Call Us |
| 48 | 125160072/0 | Spacer Price: Call Us |
| 49 | 182700006/0 | Anti Scalp Wheel Ø95 This part replaces 182700005/0. Price: Call Us |
| 50 | 112293201/0 | Nut Price: Call Us |
| 52 | 325670008/1 | Washer Price: Call Us |
| 53 | 112156602/0 | Nut Price: Call Us |
| 60 | 112735694/0 | Screw Price: Call Us |
| 61 | 112735695/1 | Screw Price: Call Us |
| 62 | 112523080/0 | Washer Price: Call Us |
| 63 | 122160400/0 | Elastic Disc Price: Call Us |
| 64 | 182004358/0 | Right Blade, Winged Price: Call Us |
| 65 | 182004359/0 | Left Blade, Winged Price: Call Us |
| 67 | 112139100/0 | Key Price: Call Us |
| 71 | 182004360/0 | Right Mulching Blade Price: Call Us |
| 72 | 182004361/0 | Left Mulching Blade Price: Call Us |
| 75 | 112791213/1 | Screw Price: Call Us |
| 76 | 325140108/0 | Deflector Price: Call Us |
| 77 | 112154510/0 | Nut Price: Call Us |
| 78 | 325785418/0 | Support Price: Call Us |
| 79 | 112523040/0 | Washer Price: Call Us |
| 80 | 112790781/0 | Screw Price: Call Us |
