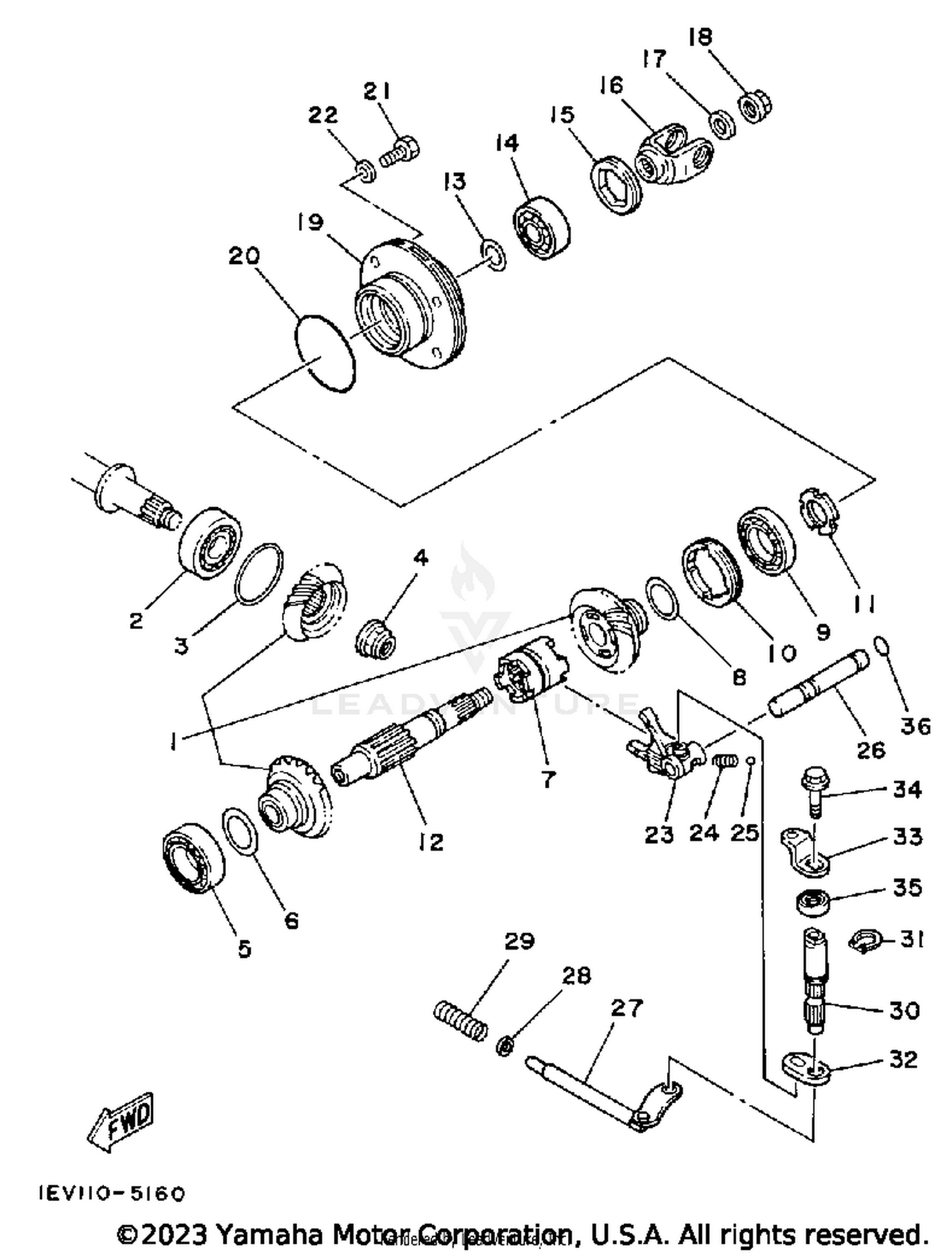

| Ref | Part Number | Description |
|---|
| 1 |
52G-17530-00-00 |
PINION SET This part replaces 52G-W1751-00-00. Price: $342.99 |
| 2 |
93306-30442-00 |
BEARING (4ED) This part replaces 93306-30432-00. Price: $74.99 |
| 3 |
24W-17537-50-00 |
SHIM, THRUST (0.4T) Price: $8.49 |
| 4 |
90179-16651-00 |
NUT This part replaces 90179-16417-00. Price: $16.99 |
| 5 |
93306-00612-00 |
BEARING Price: $51.99 |
| 7 |
52G-17285-00-00 |
CLUTCH, DOG Price: $57.99 |
| 9 |
93306-07801-00 |
BEARING Price: $60.99 |
| 10 |
90179-55464-00 |
NUT Price: $19.99 |
| 11 |
90179-28465-00 |
NUT Price: $14.49 |
| 12 |
1EV-17553-00-00 |
SHAFT, MIDDLE DRIVEN Price: $157.99 |
| 14 |
93399-99917-00 |
BEARING Price: $43.99 |
| 15 |
90179-50467-00 |
NUT Price: $14.49 |
| 16 |
1EV-17556-00-00 |
YOKE, JOINT Price: $174.99 |
| 17 |
90201-12027-00 |
WASHER, PLATE This part replaces 90201-125F7-00. Price: $9.49 |
| 18 |
90179-12657-00 |
NUT This part replaces 90179-12421-00. Price: $6.49 |
| 19 |
1EV-17551-00-00 |
HOUSING, BEARING Price: $179.99 |
| 20 |
93210-56589-00 |
O-RING Price: $9.49 |
| 21 |
97013-08025-00 |
BOLT, KICK CRANK Price: $9.49 |
| 22 |
92990-08600-00 |
WASHER, PLATE This part replaces 92901-08600-00. Price: $2.70 |
| 23 |
52G-18514-02-00 |
FORK, SHIFT 4 Price: $61.99 |
| 24 |
90501-101A5-00 |
SPRING, COMPRESSION Price: $3.45 |
| 25 |
93501-04011-00 |
BALL Price: $9.49 |
| 26 |
52G-18534-00-00 |
BAR, SHIFT FORK GUIDE Price: $25.99 |
| 27 |
52G-1812A-00-00 |
STOPPER SHAFT ASSEMBLY Price: $46.99 |
| 28 |
90201-10119-00 |
WASHER, PLATE Price: $1.00 |
| 29 |
90501-151A4-00 |
SPRING, COMPRESSION Price: $3.70 |
| 30 |
52G-18197-00-00 |
SHAFT Price: $34.99 |
| 31 |
99009-14400-00 |
CIRCLIP Price: $3.59 |
| 32 |
52G-18451-00-00 |
LEVER, SHIFT Price: $10.99 |
| 33 |
52G-18198-00-00 |
LEVER Price: $16.49 |
| 34 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95816-06016-00. Price: $1.95 |
| 35 |
93102-14209-00 |
OIL SEAL, SD TYPE Price: $12.49 |
