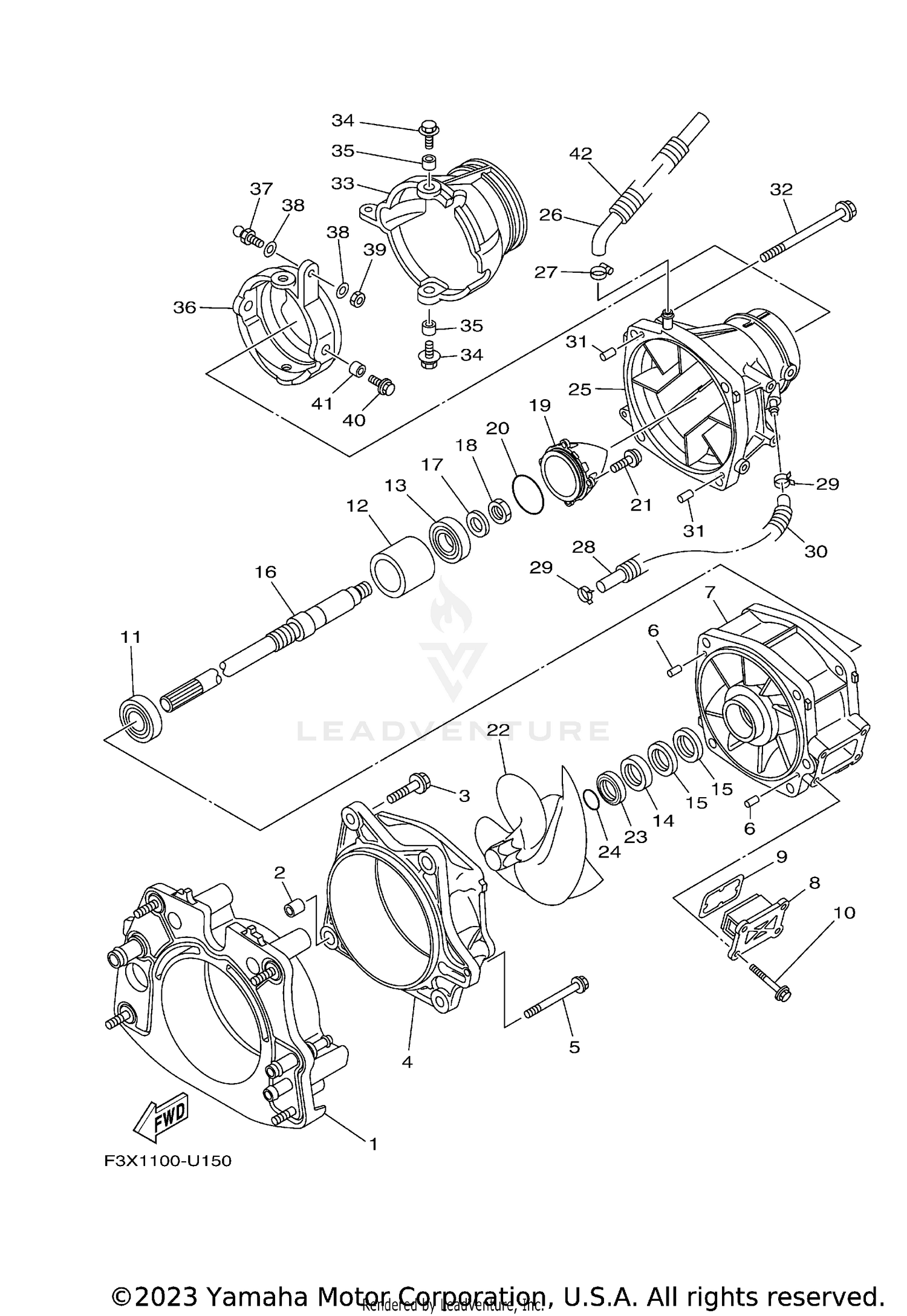

| Ref | Part Number | Description |
|---|
| 1 |
6ET-G5831-20-00 |
PLATE, TRANSOM Price: $187.99 |
| 2 |
99590-14016-00 |
PIN, DOWEL Price: $4.60 |
| 3 |
90119-10811-00 |
BOLT,WITH WASHER This part replaces 90119-10810-00. Price: $1.99 |
| 4 |
99999-04523-00 |
HOUSING, IMPELLER This part replaces 6ET-51312-00-00. Price: $470.49 |
| 5 |
90119-06894-00 |
BOLT, WITH WASHER This part replaces 90119-06893-00. Price: $1.99 |
| 6 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 7 |
6ET-51315-00-00 |
DUCT, IMPELLER Price: $367.49 |
| 8 |
6ET-G6882-10-00 |
FILTER Price: $13.99 |
| 9 |
66V-42414-00-00 |
O-RING Price: $6.99 |
| 10 |
90119-06890-00 |
BOLT,WITH WASHER This part replaces 90119-06889-00. Price: $2.99 |
| 11 |
93306-20654-00 |
BEARING Price: $83.99 |
| 12 |
6CS-G5538-00-00 |
SPACER 1 Price: $46.99 |
| 13 |
93306-30560-00 |
BEARING This part replaces 93306-30537-00. Price: $85.99 |
| 14 |
93102-31009-00 |
OIL SEAL Price: $80.49 |
| 15 |
93101-31001-00 |
OIL SEAL Price: $32.99 |
| 16 |
6ET-G5511-00-00 |
SHAFT, DRIVE This part replaces 6ET-45511-00-00. Price: $341.99 |
| 17 |
92990-20600-00 |
WASHER Price: $5.49 |
| 18 |
95312-20700-00 |
NUT (98812-20300) Price: $13.99 |
| 19 |
6ET-R1326-00-00 |
CAP Price: $23.99 |
| 20 |
93210-54010-00 |
O-RING Price: $2.99 |
| 21 |
90110-06823-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06822-00. Price: $6.99 |
| 22 |
6ET-R1321-00-00 |
IMPELLER Price: $321.99 |
| 23 |
6BH-R1348-00-00 |
SPACER Price: $33.99 |
| 24 |
93210-30611-00 |
O-RING Price: $14.49 |
| 25 |
6ET-R1318-00-00 |
NOZZLE Price: $104.99 |
| 26 |
6CS-U72M2-00-00 |
HOSE 1 Price: $11.99 |
| 27 |
90601-118UF-00 |
BAND, HOSE 18 Price: $6.99 |
| 28 |
6ET-U215E-00-00 |
HOSE Price: $8.99 |
| 29 |
90465-10098-00 |
CLAMP This part replaces 90465-11829-00. Price: $2.70 |
| 30 |
90447-15001-00 |
HOSE, WITH SPRING (L205) Price: $3.95 |
| 31 |
93606-12019-00 |
PIN, DOWEL Price: $4.60 |
| 32 |
90119-10807-00 |
BOLT,WITH WASHER This part replaces 90119-10806-00. Price: $9.99 |
| 33 |
6S5-R1313-01-00 |
NOZZLE, DEFLECTOR Price: $32.99 |
| 34 |
90119-08852-00 |
BOLT,WITH WASHER This part replaces 90119-08851-00. Price: $8.99 |
| 35 |
90387-08M06-00 |
COLLAR Price: $12.49 |
| 36 |
6AN-R1190-00-00 |
RING,TRIM Price: $32.99 |
| 37 |
6ET-U1461-10-00 |
STUD, JOINT BALL Price: $6.99 |
| 38 |
90201-068M4-00 |
WASHER, PLATE Price: $2.30 |
| 39 |
95380-06700-00 |
NUT Price: $9.49 |
| 40 |
90119-08852-00 |
BOLT,WITH WASHER This part replaces 90119-08851-00. Price: $8.99 |
| 41 |
90387-08M06-00 |
COLLAR Price: $12.49 |
