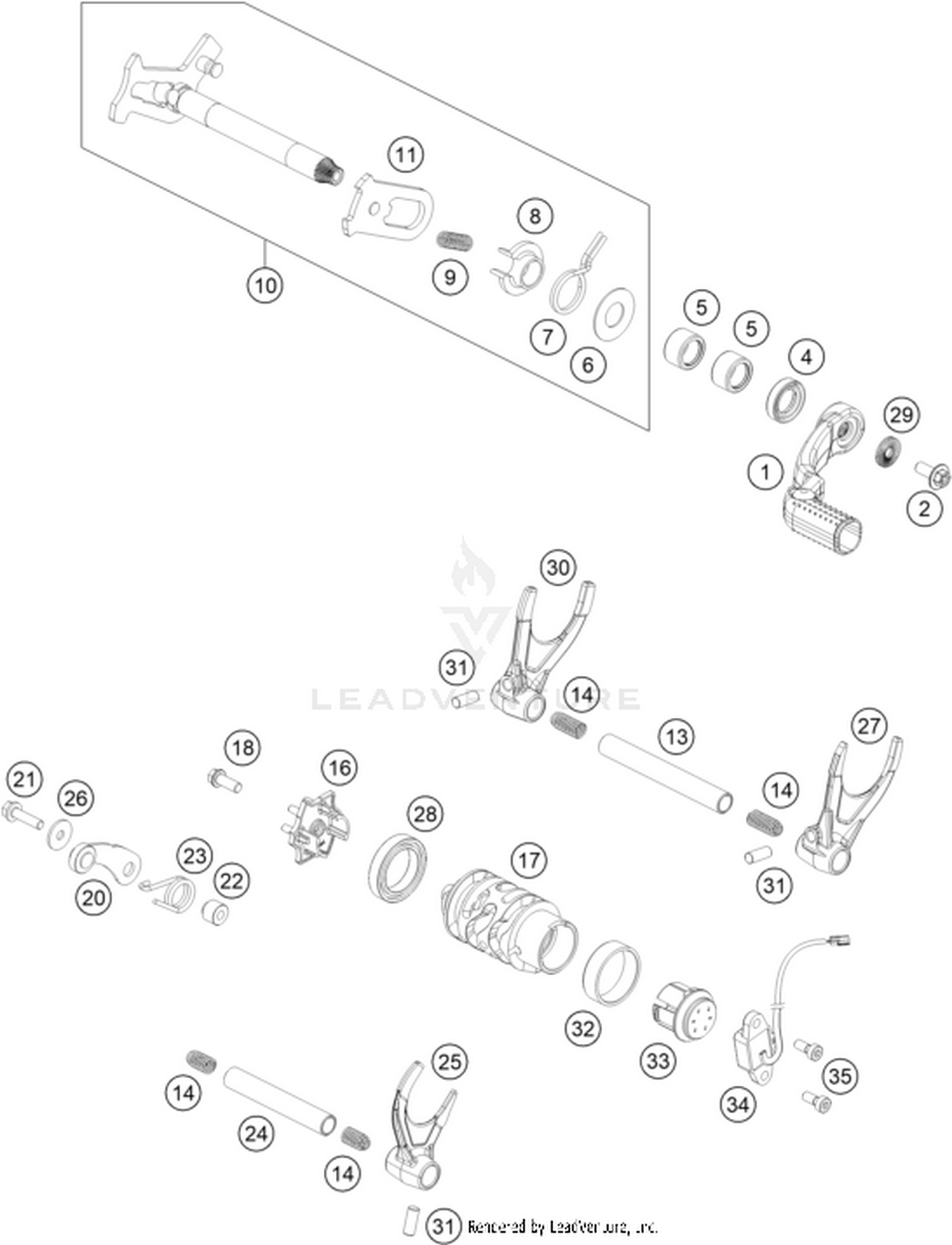

34 SHIFTING MECHANISM
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 79434031100 | SHIFT LEVER CPL. Price: Call Us |
| 2 | 0024060156S | HH collar screw M6x15 TX30 Price: Call Us |
| 6 | 90134050000 | STOP DISK 14X30X1,5 Price: Call Us |
| 7 | 54634014100 | RETURN SPRING 2,2MM '95 Price: Call Us |
| 8 | 54634020000 | SPRING GUIDE Price: Call Us |
| 9 | 56534013100 | TENSIONING SPRING 0,8MM Price: Call Us |
| 10 | 79434005033M02 | Shift Shaft cpl. Price: Call Us |
| 11 | 61234008044 | SLIDING PLATE Price: Call Us |
| 13 | 79434020000 | GEAR SHIFT RAIL 11,8X91,1MM Price: Call Us |
| 14 | 58038023400 | Compression spring L=25mm D=0. Price: Call Us |
| 16 | 76734015000M01 | Shift star cmpl. Price: Call Us |
| 17 | 76734512000 | Shift Roller 6 gear Price: Call Us |
| 18 | 0012060303 | AH SCREW DIN6912 M6X30 8.8 Price: Call Us |
| 20 | 78134024044 | LOCKING LEVER CPL. Price: Call Us |
| 21 | 0025050206 | HH collar screw M5x20 TX30 Price: Call Us |
| 22 | 76734052000 | Sleeve detent arm Price: Call Us |
| 23 | 76734023000M02 | Detend arm spring Price: Call Us |
| 24 | 79434019000 | GEAR SHIFT RAIL 11,8X74,5MM Price: Call Us |
| 25 | 76734001000M06 | Shift fork 5/-6 gear Price: Call Us |
| 27 | 79434002100M02 | Shift fork 2/-4 gear Price: Call Us |
| 28 | 0625618050 | BALL BEARING 61805 C3 Price: Call Us |
| 29 | 50233041500 | PAIR NORDLOCK WASHER M6 Price: Call Us |
| 30 | 79434003100M02 | Shift fork 1/-3 gear Price: Call Us |
| 31 | 0402061480 | NEEDLE ROLLER DIN5402 6X14,8 Price: Call Us |
| 32 | 79234012010M01 | Slide Bearing Price: Call Us |
| 33 | 79234012020 | Magnet bracket cmpl. Price: Call Us |
| 34 | 79211023000M02 | Switch position sensor Price: Call Us |
