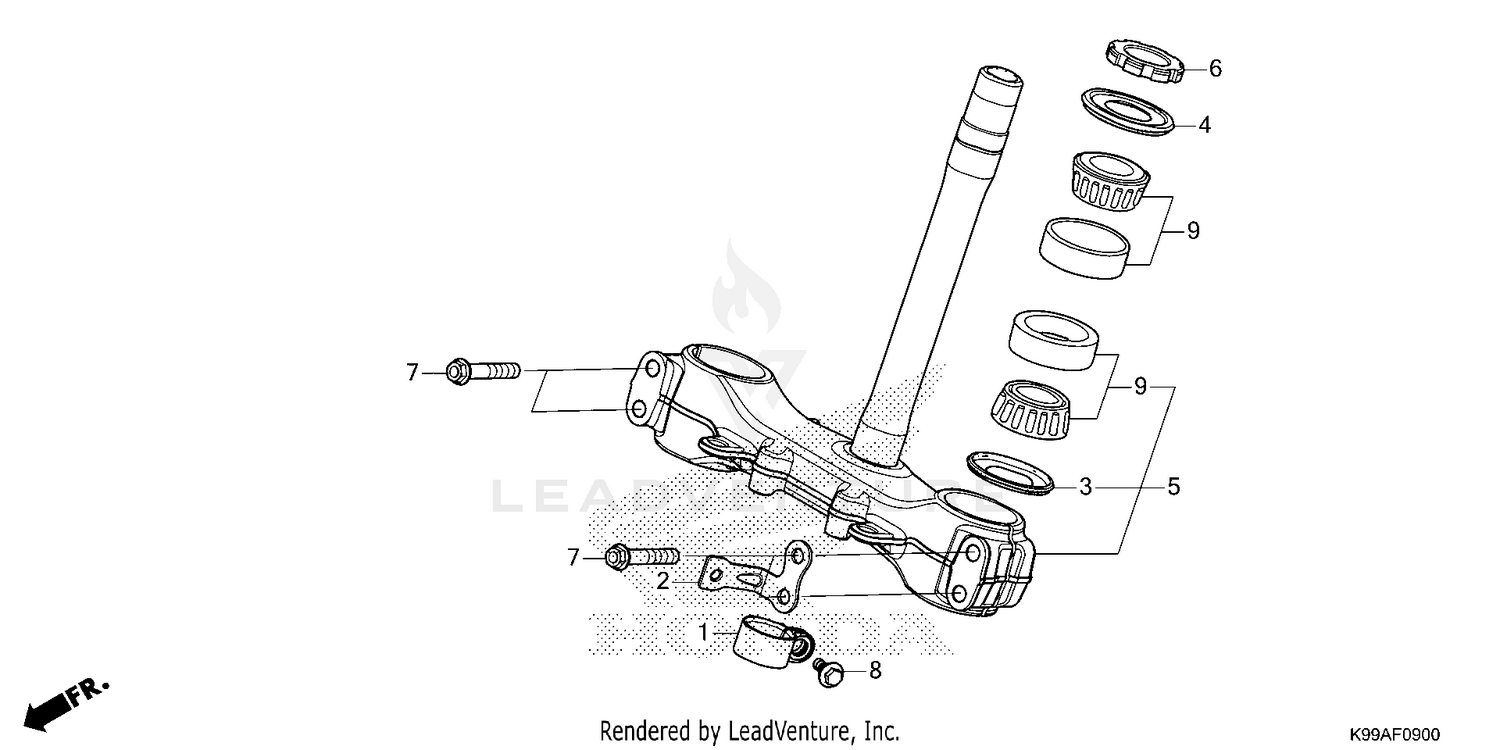

STEERING STEM
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 45463-K3W-B00 | GUIDE, BRAKE HOSE Price: $7.98 |
| 2 | 45464-K99-A70 | STAY COMP (LOWER) Price: $7.16 |
| 3 | 53214-KA4-701 | DUST SEAL, STEERING HEAD (ARAI) Price: $8.31 |
| 4 | 53214-KZZ-901 | DUST SEAL, STEERING (UPPER) Price: $7.38 |
| 5 | 53219-K99-A71 | STEM SUB-ASSY., STRG Price: $179.36 |
| 6 | 53229-KPS-900 | THREAD, STEERING HEAD TOP Price: $12.02 |
| 7 | 90107-KZ4-J40 | BOLT, FLANGE (8X45) Price: $2.44 |
| 8 | 90113-K3W-B00 | BOLT, FLANGE (6MM) (NOT AVAILABLE) Price: $5.55 |
| 9 | 91015-425-832 | BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831. Price: $37.56 |
