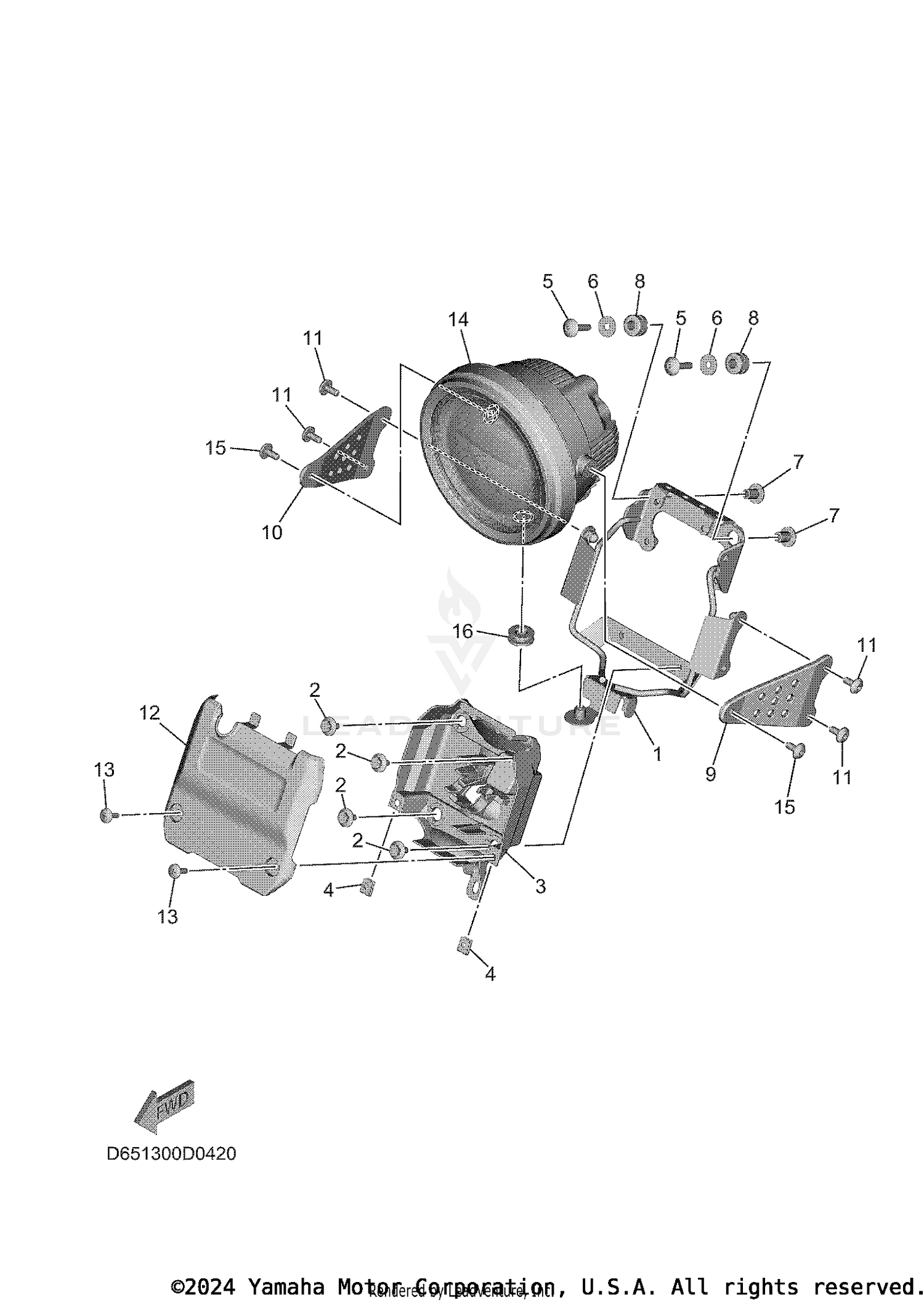

HEADLIGHT
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BEA-23174-00-00 | STAY, HEADLIGHT Price: $177.99 |
| 2 | 90109-06202-00 | BOLT Price: $3.10 |
| 3 | D65-8431U-00-00 | HOLDER Price: $16.49 |
| 4 | 90183-050A6-00 | NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 5 | 90111-06189-00 | BOLTHEX. SOCKET BUTTON Price: $3.50 |
| 6 | 90201-06095-00 | WASHER, PLATE This part replaces 90201-06063-00. Price: $9.49 |
| 7 | 90387-06365-00 | COLLAR Price: $6.49 |
| 8 | 90480-14036-00 | GROMMET Price: $5.49 |
| 11 | 90111-06095-00 | BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 12 | D65-2836K-00-00 | PANEL, INNER 1 Price: $17.99 |
| 13 | 90154-05007-00 | SCREW, BINDING Price: $3.55 |
| 14 | BEA-84300-01-00 | HEADLIGHT ASSY Price: $600.99 |
| 15 | 90111-06095-00 | BOLT, HEX. SOCKET BUTTON Price: $9.49 |
