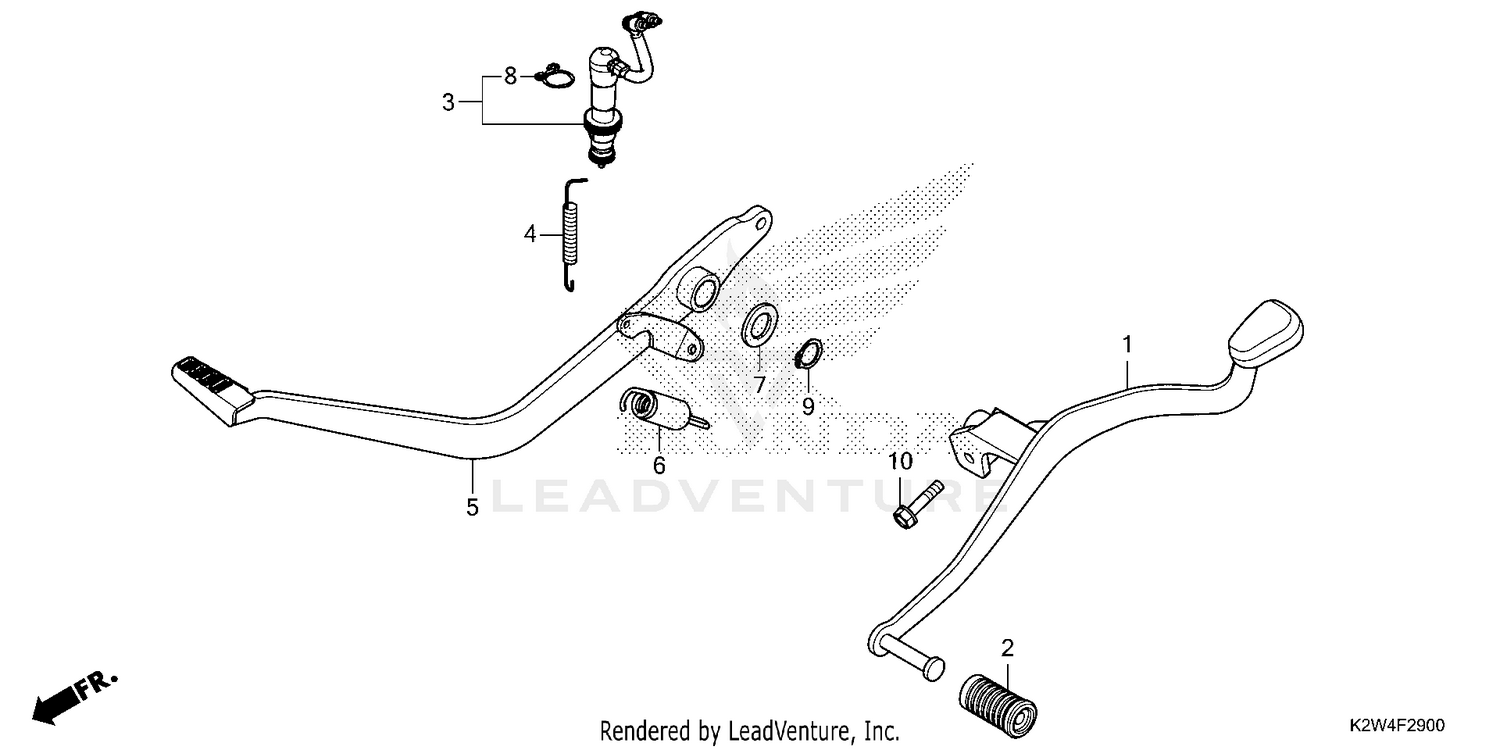

PEDAL
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 24701-K2W-A20 | PEDAL, GEARSHIFT Price: $54.96 |
| 2 | 24781-KR3-770 | RUBBER, GEARSHIFT PEDAL Price: $4.25 |
| 3 | 35350-K2W-T01 | SWITCH, RR. STOP Price: $14.37 |
| 4 | 35357-HP6-A00 | SPRING, STOP SWITCH Price: $5.22 |
| 5 | 46500-K2W-J10 | PEDAL, BRAKE Price: $36.43 |
| 6 | 46513-KPP-900 | SPRING ASSY., BRAKE PEDAL Price: $2.38 |
| 7 | 90557-230-000 | WASHER (15.2X25) Price: $2.73 |
| 8 | 90601-KAF-003 | CLIP, SWITCH COVER Price: $3.05 |
| 9 | 94511-15000 | CIRCLIP (OUTER) (15MM) Price: $0.78 |
