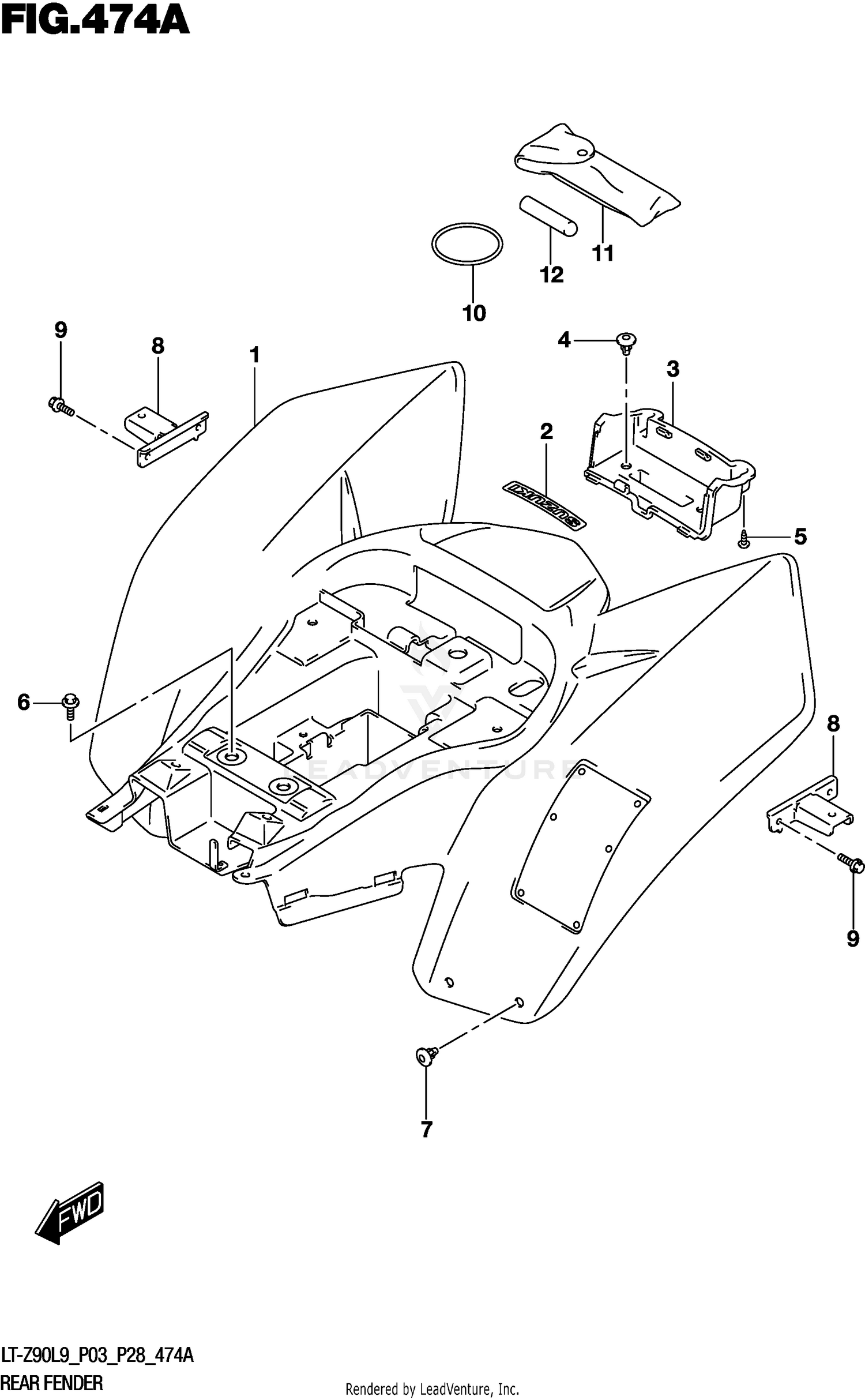

REAR FENDER
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 63111-08H00-YU1 | FENDER,RR (YELLOW) Price: $699.61 |
| 2 | 68721-09A00-GY8 | EMBLEM, "SUZUKI" Price: $13.85 |
| 3 | 63121-08H00 | FENDER,REAR LOWER Price: $23.32 |
| 4 | 09409-07333 | CLIP (D:2.4,ID:23.7) Price: $2.77 |
| 5 | 03541-0516A | SCREW Price: $1.65 |
| 6 | 09111-06081 | BOLT Price: $5.19 |
| 7 | 09409-08335 | CLIP Price: $2.77 |
| 8 | 63130-08H00 | REINF,REAR FENDER Price: $24.98 |
| 9 | 01550-0620A | BOLT (6X20) Price: $2.37 |
| 10 | 09280-70004 | O-RING (D:3.53,ID:69.44) Price: $4.76 |
| 11 | 96510-08H00 | TOOL ASSY Price: $71.90 |
