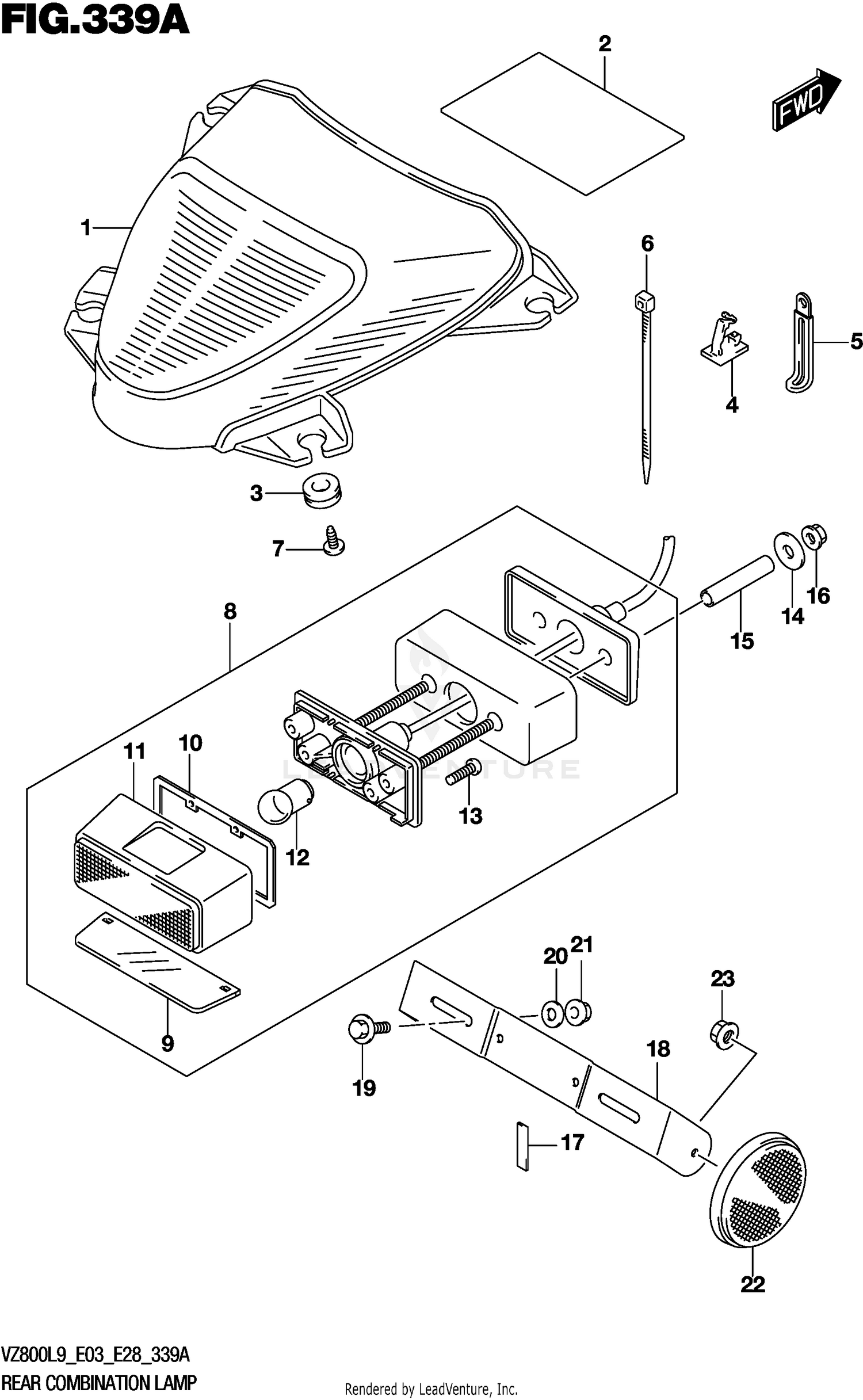

REAR COMBINATION LAMP
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35710-40H40 | LAMP ASSY Price: $589.40 |
| 2 | 35940-39G00 | CUSHION Price: $4.79 |
| 3 | 09320-10073 | CUSHION This part replaces 09320-10054. Price: $2.39 |
| 4 | 09403-04310 | CLAMP Price: $5.62 |
| 5 | 09404-06429 | CLAMP (L:45) Price: $2.20 |
| 6 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 7 | 03541-0512A | SCREW Price: $1.65 |
| 8 | 35910-41G02 | LAMP ASSY,LICENSE Price: $79.90 |
| 12 | 09471-12058 | BULB (12V5W) This part replaces 09471-12140. Price: $1.67 |
| 14 | 09160-06077 | WASHER (6.5X20X1.2) Price: $2.30 |
| 16 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 17 | 33652-47F00 | CUSHION,LICENSE PLATE(10X30X6 Price: $4.57 |
| 18 | 35927-39G30 | BRACKET Price: $17.02 |
| 19 | 09116-06168 | BOLT (6X16) Price: $3.02 |
| 20 | 09160-06077 | WASHER (6.5X20X1.2) Price: $2.30 |
| 21 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 22 | 35970-14A10 | REFLECTOR ASSY Price: $20.32 |
