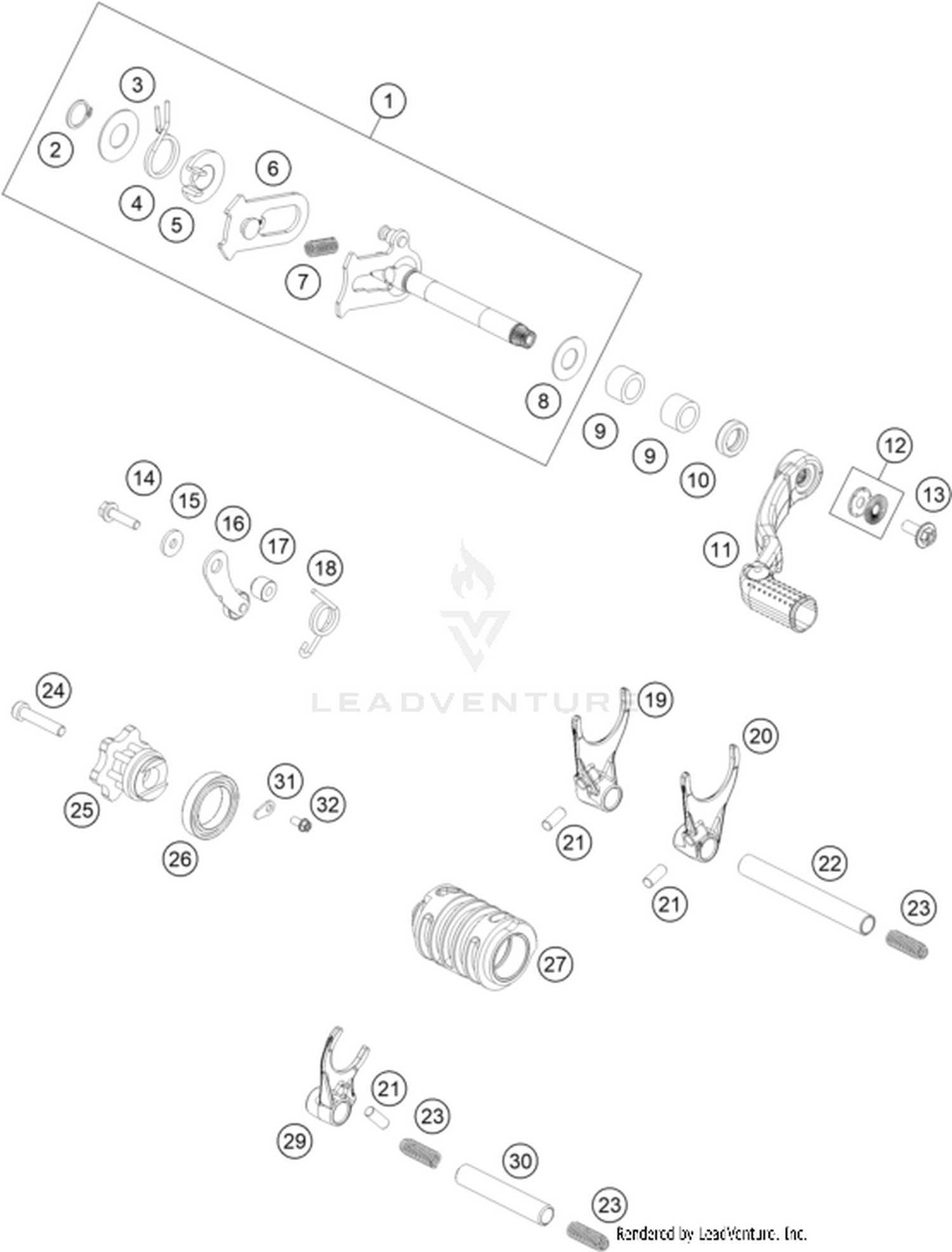

34 SHIFTING MECHANISM
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 47234005044 | Shift shaft cpl. Price: Call Us |
| 3 | 54634050000 | STOP DISK 14X30X1 Price: Call Us |
| 4 | 54834014000 | RETURN SPRING 03 Price: Call Us |
| 5 | 54634020000 | SPRING GUIDE Price: Call Us |
| 6 | 79234008144 | SLIDING PLATE CPL. Price: Call Us |
| 7 | 56534013100 | TENSIONING SPRING 0,8MM Price: Call Us |
| 8 | 49033013000 | STOP DISK 12,1X25X1 Price: Call Us |
| 9 | 46034027000 | NEEDLE BEARING 12X18X12 2002 Price: Call Us |
| 10 | 0760122050 | SHAFT SEAL RING 12X20X5 B Price: Call Us |
| 11 | 50434031000 | SHIFT LEVER CPL. Price: Call Us |
| 12 | 50233041500 | PAIR NORDLOCK WASHER M6 Price: Call Us |
| 13 | 0024060156S | HH collar screw M6x15 TX30 Price: Call Us |
| 14 | 0025050206S | Hex collar screw, M5x20 ISA30 Price: Call Us |
| 15 | 0349000050 | WASHER DIN7349-5X15X2 Price: Call Us |
| 16 | 55434024000 | LOCKING LEVER CPL. Price: Call Us |
| 17 | 54634052300 | SLEEVE FOR LOCKING LEVER Price: Call Us |
| 18 | 50334023000 | LOCATING LEVER SPRING 2,5MM'98 Price: Call Us |
| 19 | 47234002000 | Shift fork 1.-4. gear Price: Call Us |
| 20 | 47234003000 | Shift fork 2.-3. gear Price: Call Us |
| 21 | 0402061480 | NEEDLE ROLLER DIN5402 6X14,8 Price: Call Us |
| 22 | 47234019000 | Shift rail 11.8x80x8mm Price: Call Us |
| 23 | 58038023400 | Compression spring L=25mm D=0. Price: Call Us |
| 24 | 0012060303S | Cap head screw M6x30-8.8 Price: Call Us |
| 25 | 79234015100 | Shift star cmpl Price: Call Us |
| 26 | 0625618050 | BALL BEARING 61805 C3 Price: Call Us |
| 29 | 47234001000 | Shift fork 5.-6. gear Price: Call Us |
| 30 | 46234020000 | SHIFTING RAIL MAIN SHAFT Price: Call Us |
| 31 | 54634049000 | RETAINING PLATE Price: Call Us |
