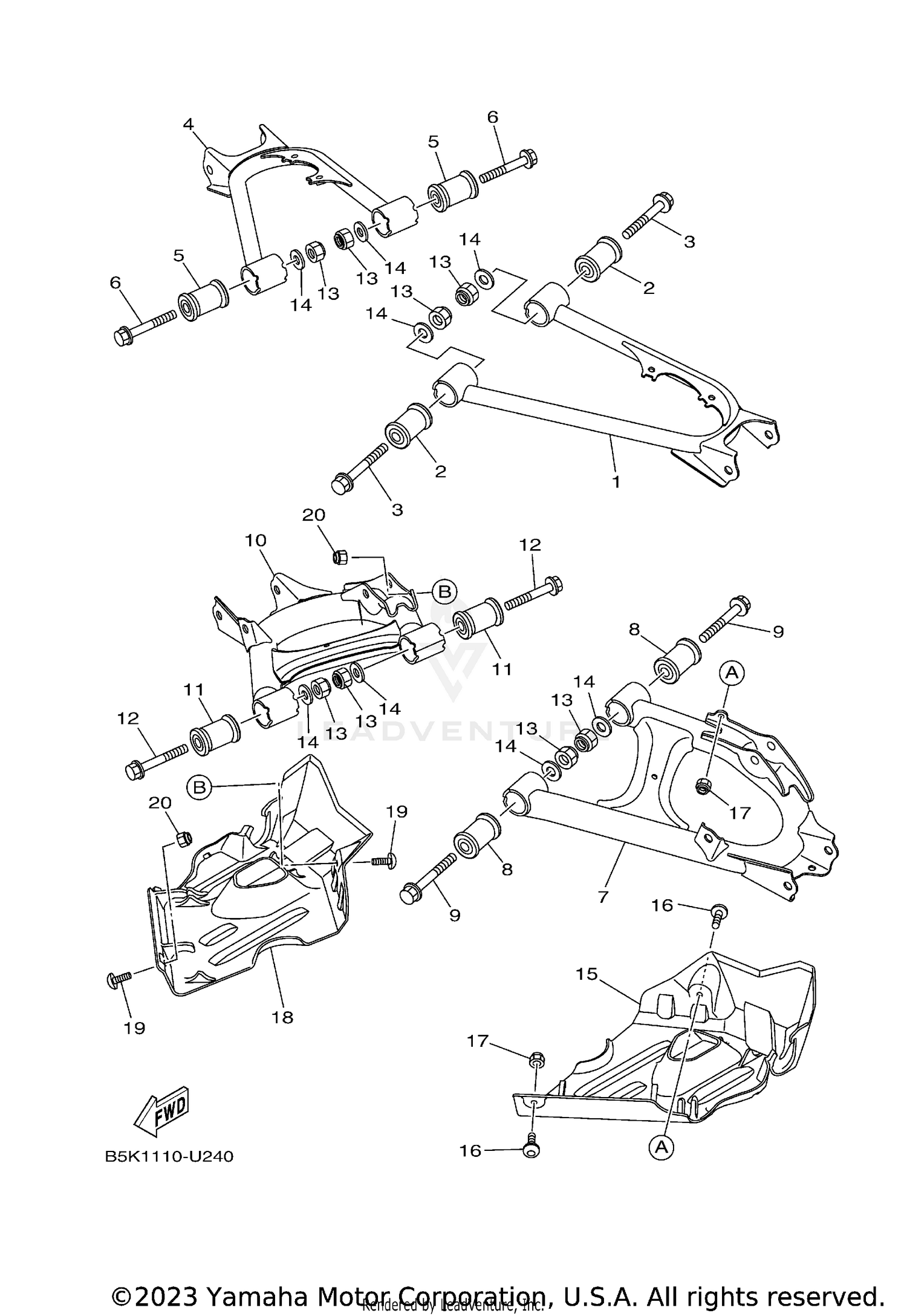

| Ref | Part Number | Description |
|---|
| 1 |
1HP-F2171-01-00 |
ARM, REAR 1 Price: $44.99 |
| 2 |
1HP-F3526-00-00 |
BUSH Price: $24.99 |
| 3 |
90105-10484-00 |
BOLT, FLANGE Price: $6.49 |
| 4 |
1HP-F2172-01-00 |
ARM, REAR 2 Price: $45.99 |
| 5 |
1HP-F3526-00-00 |
BUSH Price: $24.99 |
| 6 |
90105-10484-00 |
BOLT, FLANGE Price: $6.49 |
| 7 |
1HP-F217M-01-00 |
ARM 1 Price: $79.99 |
| 8 |
1HP-F3526-00-00 |
BUSH Price: $24.99 |
| 9 |
90105-10484-00 |
BOLT, FLANGE Price: $6.49 |
| 10 |
1HP-F217N-01-00 |
ARM 2 Price: $79.99 |
| 11 |
1HP-F3526-00-00 |
BUSH Price: $24.99 |
| 12 |
90105-10484-00 |
BOLT, FLANGE Price: $6.49 |
| 13 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 14 |
90201-10035-00 |
WASHER, PLATE Price: $4.50 |
| 15 |
1HP-F2128-01-00 |
COVER, THRUST 1 This part replaces 1HP-F2128-00-00. Price: $24.99 |
| 16 |
90111-06814-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.00 |
| 17 |
95707-06300-00 |
NUT, NYLON This part replaces 95702-06300-00. Price: $3.75 |
| 18 |
1HP-F2129-01-00 |
COVER, THRUST 2 This part replaces 1HP-F2129-00-00. Price: $12.49 |
| 19 |
90111-06814-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.00 |
