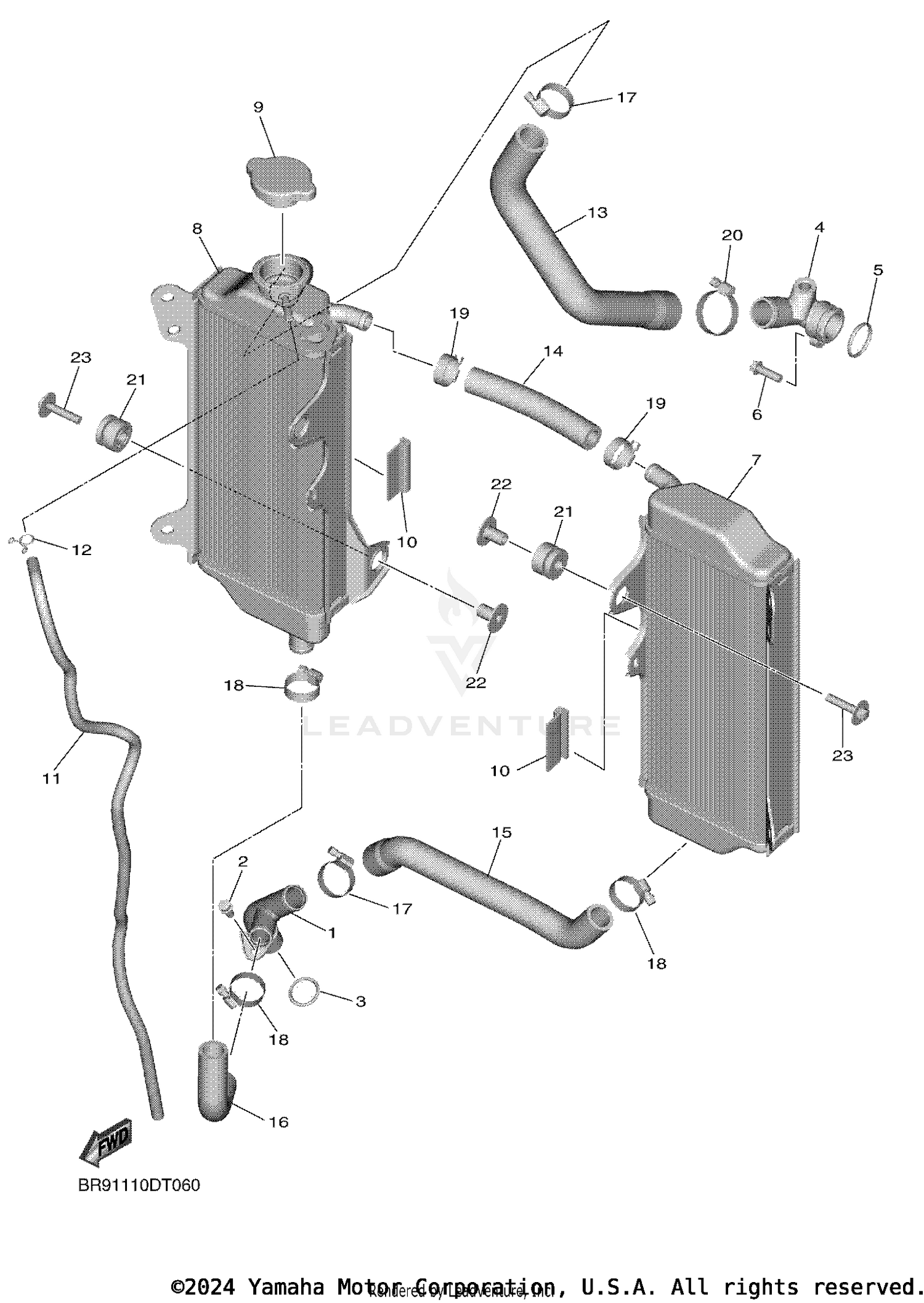

RADIATOR HOSE
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BR9-12482-00-00 | PIPE 2 Price: $78.99 |
| 2 | 95022-06012-00 | BOLT, FLANGE Price: $3.55 |
| 3 | 93210-16500-00 | O-RING Price: $8.49 |
| 4 | 1SL-12446-00-00 | JOINT Price: $32.99 |
| 6 | 95022-06020-00 | BOLT, FLANGE Price: $3.90 |
| 7 | BR9-1240A-00-00 | RADIATOR ASSY Price: $253.99 |
| 8 | BR9-12461-00-00 | RADIATOR COMP Price: $254.99 |
| 9 | 5SL-12462-01-00 | CAP, RADIATOR This part replaces 5SL-12462-00-00. Price: $35.99 |
| 10 | 33D-12465-00-00 | DAMPER, RADIATOR Price: $15.49 |
| 11 | 91A20-05080-00 | TUBE, FLEXIBLE VINYL This part replaces 91A20-05065-00. Price: $16.49 |
| 12 | 90467-090A2-00 | CLIP Price: $4.75 |
| 13 | BR9-12576-00-00 | HOSE 1 Price: $16.49 |
| 14 | BR9-12577-00-00 | HOSE 2 Price: $6.49 |
| 15 | BR9-12578-00-00 | HOSE 3 Price: $18.49 |
| 16 | BR9-12579-01-00 | HOSE 4 This part replaces BR9-12579-00-00. Price: $8.49 |
| 17 | 90450-28001-00 | HOSE CLAMP ASSY Price: $16.49 |
| 18 | 90450-22M14-00 | HOSE CLAMP ASSY This part replaces 90450-25001-00. Price: $16.99 |
| 19 | 90450-18M09-00 | HOSE CLAMP ASSY This part replaces 90450-22001-00. Price: $11.49 |
| 20 | 90450-32003-00 | HOSE CLAMP ASSY Price: $18.49 |
| 21 | 90480-15012-00 | GROMMET Price: $8.49 |
| 22 | 90387-06065-00 | COLLAR Price: $13.49 |
