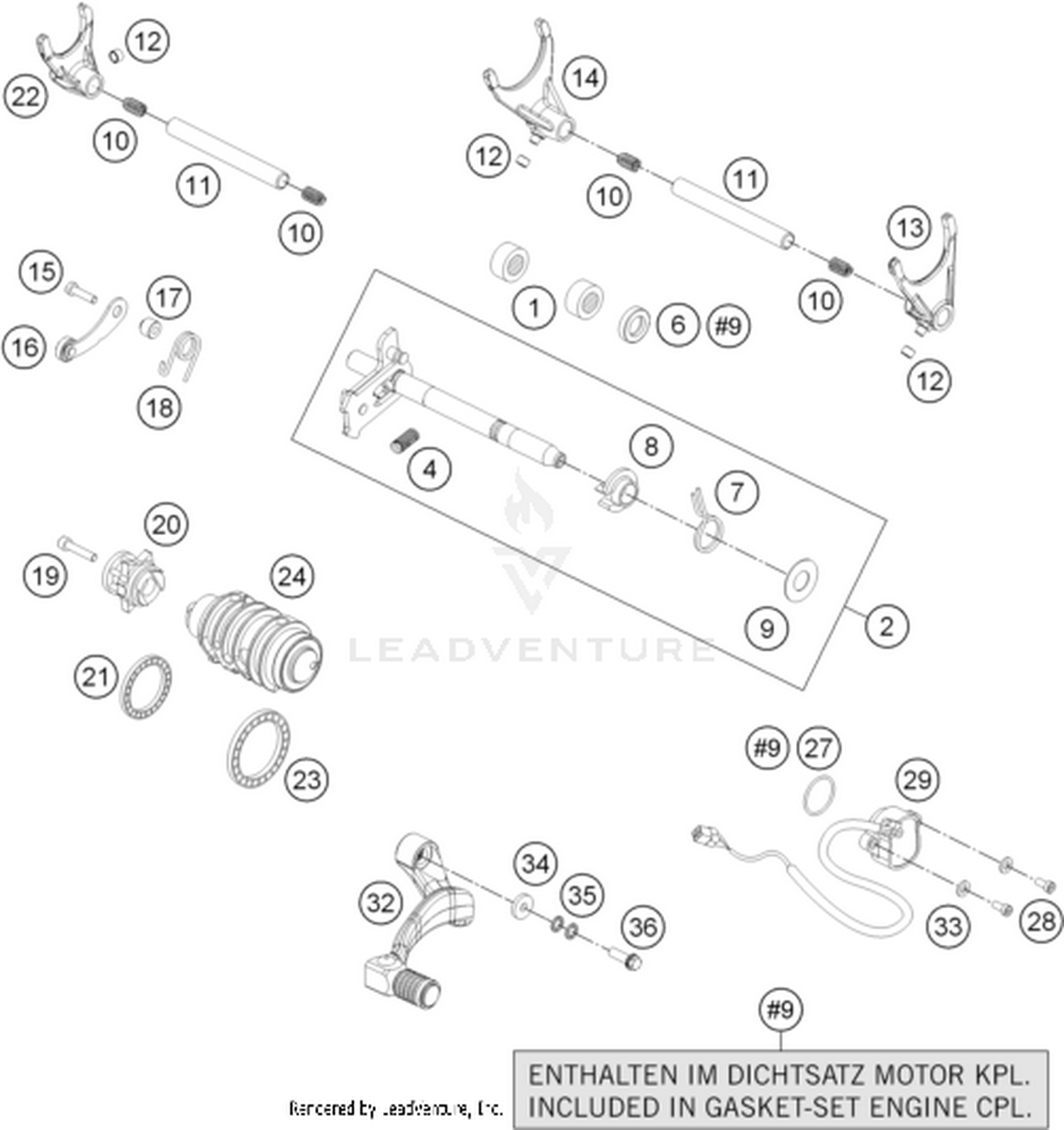

34 SHIFTING MECHANISM
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 61234005333 | SHIFT SHAFT CPL. Price: Call Us |
| 4 | 56534013100 | TENSIONING SPRING 0,8MM Price: Call Us |
| 7 | 61234014000 | RETURNSPRING 2MM Price: Call Us |
| 8 | 54634020000 | SPRING GUIDE Price: Call Us |
| 9 | 54634050000 | STOP DISK 14X30X1 Price: Call Us |
| 10 | 58038023200 | PRESSURE SPRING 0,9MM Price: Call Us |
| 11 | 59034020000 | SHIFT RAIL 11,8X105MM Price: Call Us |
| 12 | 50334018100 | SHIFTING ROLLER 6X8X5,2 Price: Call Us |
| 13 | 61234002100 | SHIFT FORK 2-3 GEAR Price: Call Us |
| 14 | 61234001000 | SHIFTING FORK 08 Price: Call Us |
| 15 | 0024060206 | HH collar screw M6x20 TX30 Price: Call Us |
| 16 | 75034024044 | LOCKING LEVER CPL. 07 Price: Call Us |
| 17 | 75034052000 | SLEEVE FOR LOCKING LEVER 07 Price: Call Us |
| 18 | 61234023000 | SPRING - LOCKING LEVER Price: Call Us |
| 19 | 0912060309 | AH SCREW DIN0912-M 6X30 12.9 Price: Call Us |
| 20 | 61234015500 | Shifting arrestor cpl. This part replaces 61234015444. Price: Call Us |
| 21 | 0625618050 | BALL BEARING 61805 C3 Price: Call Us |
| 22 | 61234003200 | SHIFT FORK 5-6 GEAR Price: Call Us |
| 23 | 0625068080 | GROOVED BALL BEARING 6808 JRC3 Price: Call Us |
| 24 | 60334012100 | SHIFTING DRUM CPL. Price: Call Us |
| 28 | 0984050163S | CYL. SCREW DIN6912 M5X16 8.8 Price: Call Us |
| 29 | 60211023100 | GEAR-POSITION SENSOR Price: Call Us |
| 32 | 6003403104433S | SHIFTING LEVER CPL. Price: Call Us |
| 33 | 0125050003 | WASHER DIN0125-A 5,3 Price: Call Us |
| 34 | 50232050001 | STEEL WASHER 6,4X17X3 Price: Call Us |
| 35 | 50233041000 | Pair of washers M6 NORDLOCK Price: Call Us |
