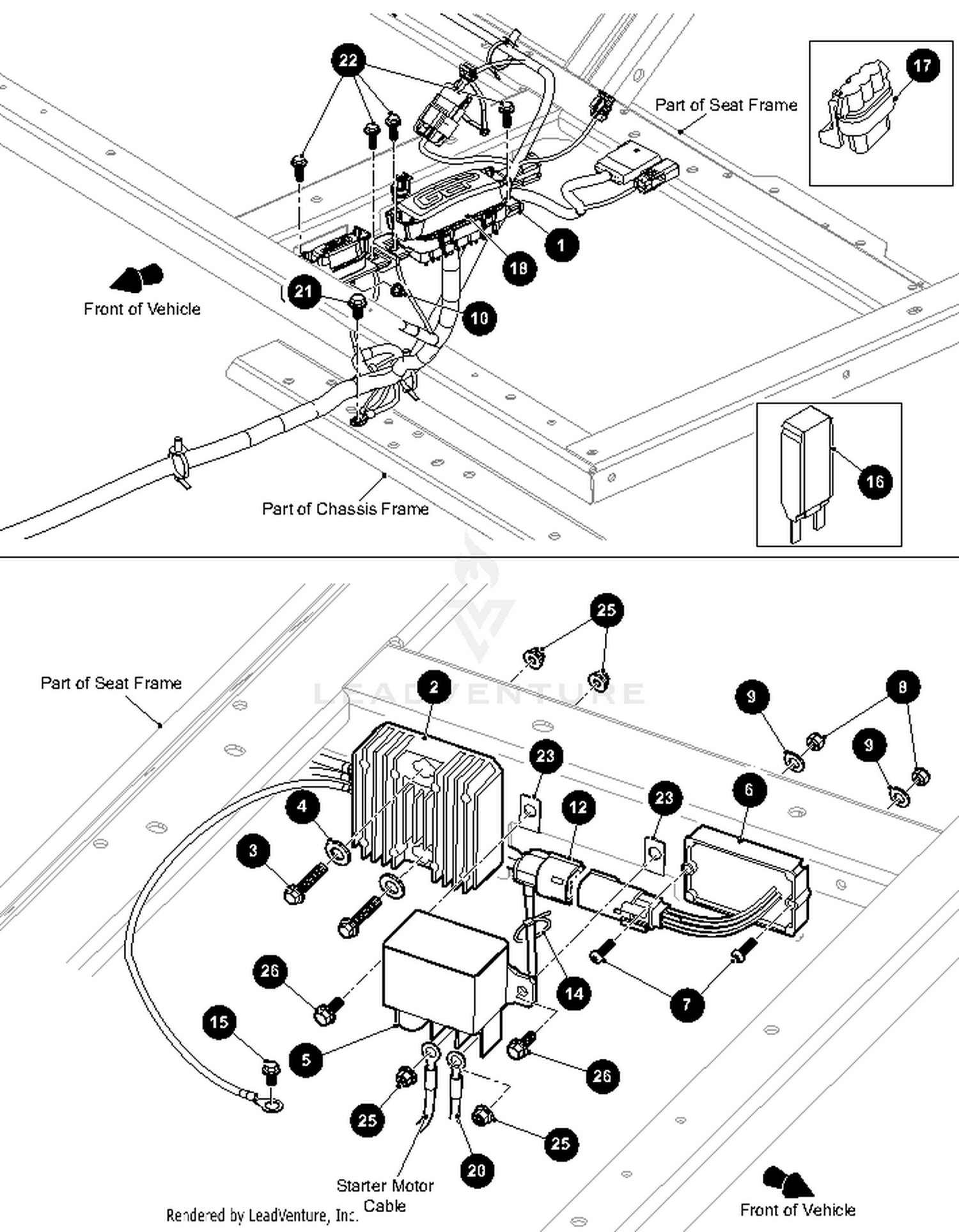

| Ref | Part Number | Description |
|---|
| 1 |
656556 |
HARNESS,UTV,MAIN,REAR Price: $683.95 |
| 2 |
407227 |
VOLTAGE REGULATOR / V002 Price: $203.95 |
| 3 |
643471 |
FLANGED HEX HEAD BOLT, M6-1X35 Not Available Price: |
| 4 |
308090 |
FLAT WASHER, 1/4 Price: $2.99 |
| 5 |
405225 |
HIGH CURRENT RELAY / TYCO 1416010-1 Price: $168.95 |
| 6 |
639456 |
OBS - SOL CONTROLLER,PWM,REAR DIFF Price: $79.48 |
| 7 |
00379G2 |
PAN HEAD PHILLIPS SCREW, #10-24 X 1 1/4 Price: $0.99 |
| 8 |
14390G10 |
LOCK NUT, #10-24 Price: $1.99 |
| 9 |
00559G5 |
FLAT WASHER, #10 Price: $2.99 |
| 10 |
601476 |
LOCK NUT, M6-1 Price: $1.99 |
| 12 |
657215 |
HARNESS,UTV,ELEC REAR DIFF Not Available Price: |
| 13 |
646441 |
CABLE TIE, EDGE CLIP, 90 DEGREES Price: $1.73 |
| 14 |
31539G1 |
NYLON CLAMP, 15.5" LG Price: $1.99 |
| 15 |
452695 |
TAPTITE SCREW, M6-1.00 X 20 Price: $13.18 |
| 16 |
647613 |
BREAKER,BUSSMANN,MINI,14V,20A,CB211-20 Price: $25.01 |
| 17 |
639733G03 |
CONN_DELPHI_MP150_3P_12110293 Not Available Price: |
| 18 |
660036 |
SVC-LID,PDM,UTV,REAR Not Available Price: |
| 20 |
641523 |
CABLE,6 AWG,333 MM,RLY,FUSE Price: $20.97 |
| 21 |
640723 |
SCREW,SELF TAPPING,M8X1.25X20 Price: $1.25 |
| 22 |
606264 |
FLANGED HEX HEAD BOLT, M6-1X20 Price: $1.99 |
| 23 |
N/S |
NON-SERVICEABLE PART Price: Call Us |
| 25 |
601476 |
LOCK NUT, M6-1 Price: $1.99 |
