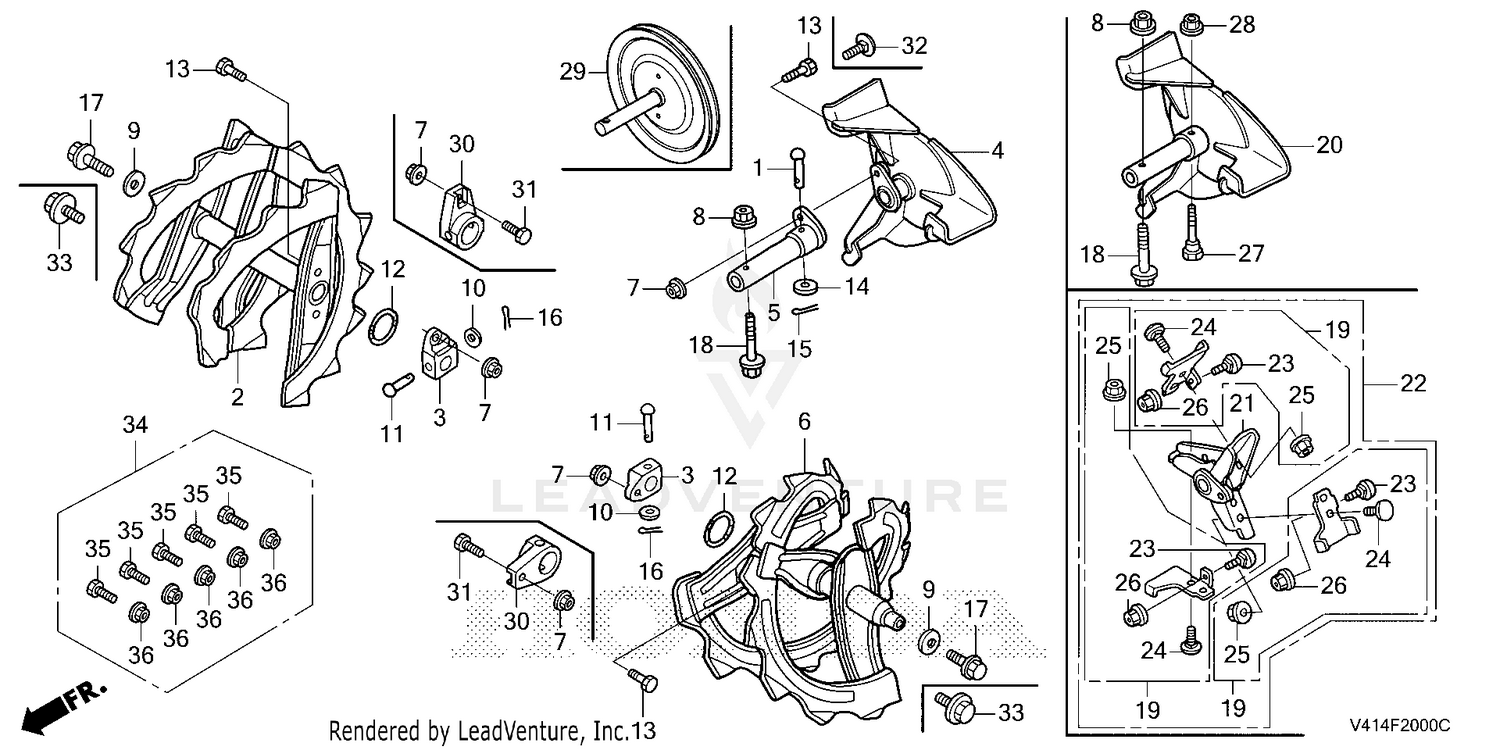

| Ref | Part Number | Description |
|---|
| 1 |
90752-V45-A00 |
PIN (10X41) Price: $4.34 |
| 2 |
72410-V45-A20 |
AUGER, R. Price: $182.38 |
| 4 |
72440-V45-A20 |
BLOWER Price: $120.24 |
| 5 |
72442-V45-A00 |
PIPE, JOINT Price: $37.10 |
| 6 |
72450-V45-A20 |
AUGER, L. Price: $234.34 |
| 7 |
90343-ZE6-000 |
SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) Price: $2.24 |
| 8 |
90309-428-731 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) Price: $4.62 |
| 10 |
90503-V45-A00 |
WASHER, PLAIN (7MM) Price: $2.34 |
| 11 |
90757-767-000 |
PIN (7X40) Price: $4.22 |
| 12 |
91351-V45-A00 |
O-RING (18.23X1.9) Price: $4.60 |
| 14 |
94101-10800 |
WASHER, PLAIN (10MM) (Honda Code 0562199). Price: $2.36 |
| 15 |
94201-30450 |
PIN, COTTER (3.0X45) This part replaces 94201-30250. Price: $1.30 |
| 16 |
94201-30450 |
PIN, COTTER (3.0X45) This part replaces 94201-30250. Price: $1.30 |
| 18 |
95701-08045-08 |
BOLT, FLANGE (8X45) (Honda Code 2602258). Price: $2.78 |
| 29 |
22420-V45-A00 |
PULLEY, DRIVEN Price: $113.12 |
| 30 |
72419-767-013 |
SEE PART DETAILS - PRI; BOSS, LOCK BOLT Price: $26.06 |
| 31 |
90119-V45-A00 |
BOLT, SPECIAL (6X18) Price: $0.54 |
| 32 |
90121-V45-A00 |
BOLT, CARRIAGE (6X18) Price: $0.78 |
| 33 |
90126-V45-A00 |
BOLT, FLANGE (8X14) Price: $3.72 |
