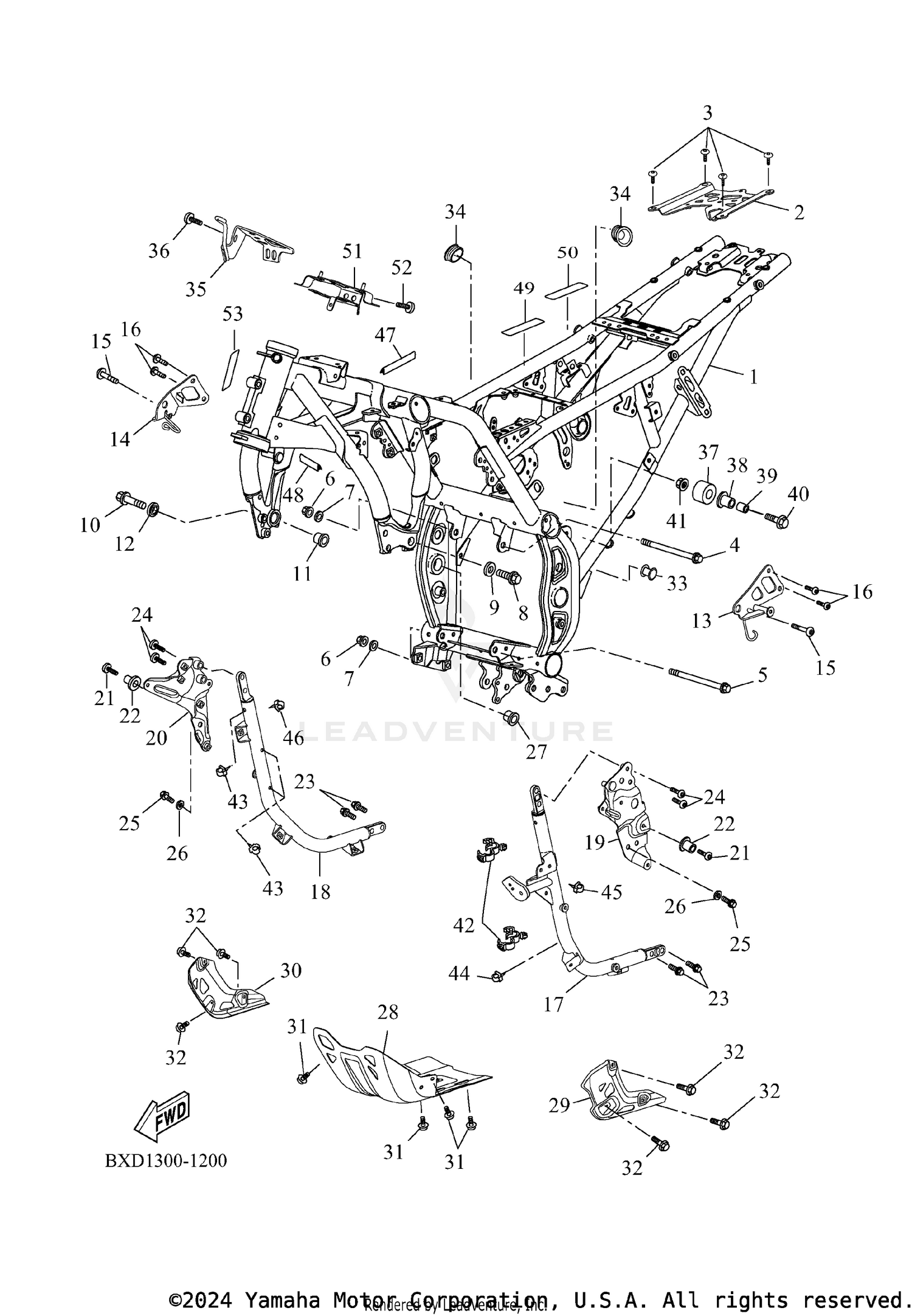

| Ref | Part Number | Description |
|---|
| 1 |
BXD-F1110-00-00 |
FRAME COMP. Price: $1,635.99 |
| 2 |
BRL-21349-00-00 |
BRACKET, SEAT Price: $36.99 |
| 3 |
90149-06302-00 |
SCREW This part replaces 90149-06022-00. Price: $6.49 |
| 4 |
90105-10219-00 |
BOLT, FLANGE Price: $8.49 |
| 5 |
90105-10349-00 |
BOLT, FLANGE Price: $16.49 |
| 6 |
90179-10024-00 |
NUT Price: $11.49 |
| 7 |
90201-10035-00 |
WASHER, PLATE Price: $4.50 |
| 8 |
90105-12092-00 |
BOLT, FLANGE Price: $15.49 |
| 9 |
90201-13020-00 |
WASHER, PLATE Price: $3.95 |
| 10 |
90105-12104-00 |
BOLT, FLANGE Price: $6.49 |
| 11 |
BW3-F1495-00-00 |
BOLT, ENGINE ADJUS Price: $3.90 |
| 12 |
90387-14X00-00 |
COLLAR Price: $3.85 |
| 13 |
BXD-F1315-00-00 |
STAY, ENGINE 1 Price: Call Us |
| 14 |
BXD-F1316-00-00 |
STAY, ENGINE 2 Price: Call Us |
| 15 |
90110-10012-00 |
BOLT, HEXAGON SOCKET Price: $29.99 |
| 16 |
90110-08111-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.85 |
| 17 |
BXD-21102-00-00 |
SIDE MEMBER SUB-ASSY 1 Price: Call Us |
| 18 |
BXD-21103-00-00 |
SIDE MEMBER SUB-ASSY 2 Price: Call Us |
| 19 |
BXD-F142L-00-00 |
BRACKET, RADIATOR 2 Price: Call Us |
| 20 |
BXD-F142M-00-00 |
BRACKET, RADIATOR 3 Price: Call Us |
| 21 |
90111-06171-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.35 |
| 22 |
90387-06X44-00 |
COLLAR Price: $7.99 |
| 23 |
90105-08X23-00 |
BOLT, FLANGE Price: $4.05 |
| 24 |
90109-083A8-00 |
BOLT Price: $4.20 |
| 25 |
90105-06175-00 |
BOLT,WASHER BASED Price: $3.85 |
| 26 |
90201-06029-00 |
WASHER, PLATE Price: $6.49 |
| 27 |
11D-F1494-00-00 |
NUT Price: $26.99 |
| 28 |
BXD-F1471-00-00 |
PROTECTOR, ENGINE Price: Call Us |
| 29 |
BXD-F195A-00-00 |
PROTECTOR, FRAME A Price: $175.99 |
| 30 |
BXD-F195B-00-00 |
PROTECTOR, FRAME B Price: Call Us |
| 31 |
90119-06137-00 |
BOLT, WITH WASHER Price: $9.49 |
| 32 |
90119-06137-00 |
BOLT, WITH WASHER Price: $9.49 |
| 33 |
90338-15803-00 |
PLUG Price: $10.49 |
| 34 |
BW3-F1399-10-00 |
CAP Price: $11.49 |
| 35 |
BRL-21288-00-00 |
GUIDE, CABLE Price: $32.99 |
| 36 |
90111-06864-00 |
BOLT,HEX. SOCKET BUTTON Price: $2.20 |
| 37 |
30X-22178-00-00 |
TENSIONER Price: $38.99 |
| 38 |
10V-22184-00-00 |
BUSH Price: $8.49 |
| 39 |
90387-08120-00 |
COLLAR Price: $8.49 |
| 40 |
95814-08045-00 |
BOLT, FLANGE Price: $4.75 |
| 41 |
95602-08200-00 |
NUT, SELF-LOCKING Price: $3.20 |
| 42 |
90464-18246-00 |
CLAMP Price: $2.44 |
| 43 |
90464-10800-00 |
CLAMP Price: $2.35 |
| 44 |
90464-10800-00 |
CLAMP Price: $2.35 |
| 45 |
90464-07M40-00 |
CLAMP Price: $18.49 |
| 46 |
90464-16006-00 |
CLAMP Price: $10.49 |
| 47 |
31A-24188-01-00 |
MOLD, FUEL TANK Price: $13.99 |
| 48 |
2D1-24785-00-00 |
MOLD, SEAT Price: $9.49 |
| 49 |
BW3-F117G-02-00 |
PROTECTOR Price: $18.99 |
| 50 |
BW3-F117G-12-00 |
PROTECTOR Price: $18.99 |
| 51 |
BXD-F117A-00-00 |
STAY Price: Call Us |
| 52 |
95817-06020-00 |
BOLT, FLANGE This part replaces 95827-06020-00. Price: $3.50 |
