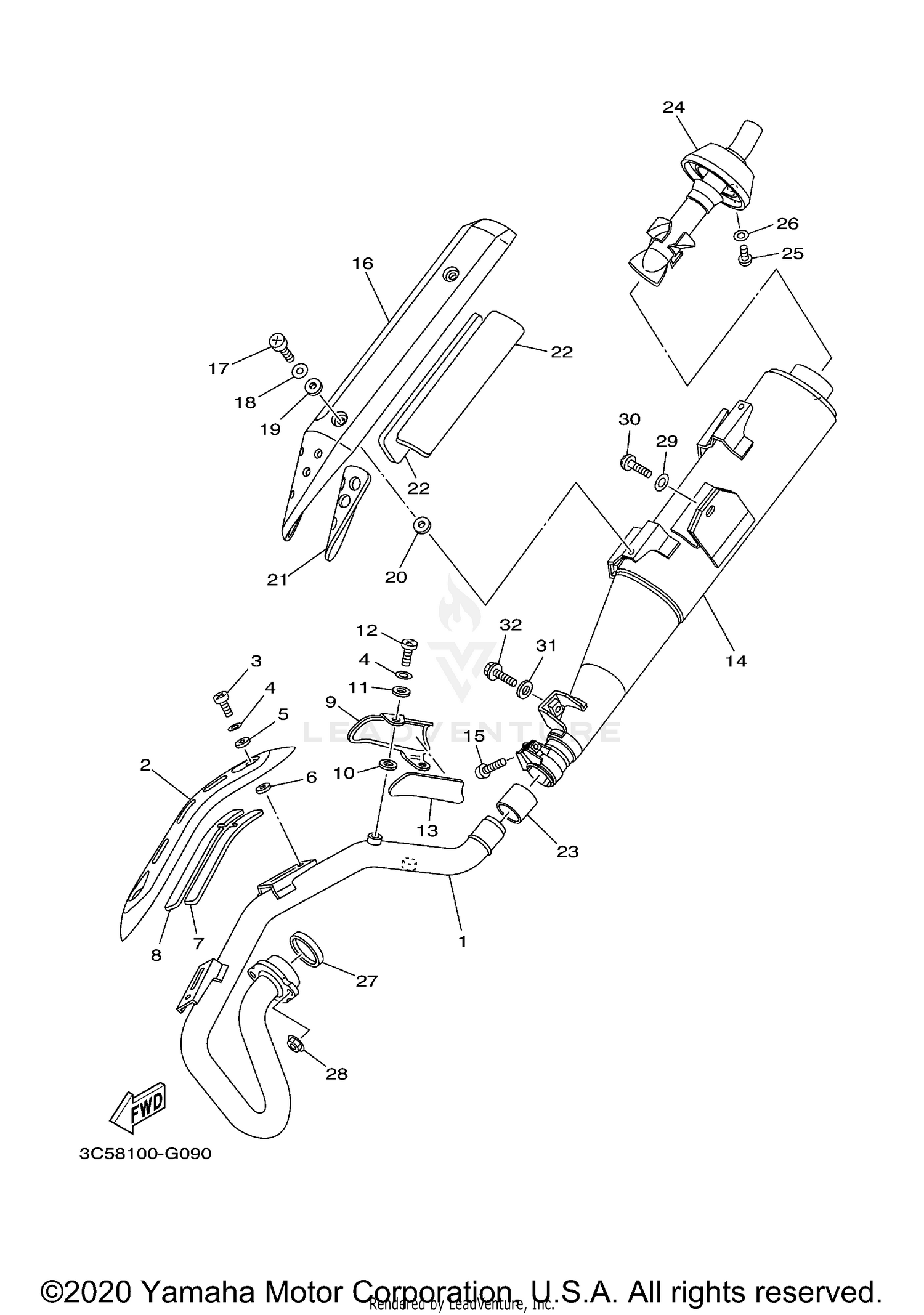

| Ref | Part Number | Description |
|---|
| 1 |
5XT-14611-10-00 |
PIPE, EXHAUST 1 Price: $306.99 |
| 2 |
3C5-14628-00-00 |
PROTECTOR, EXHAUST PIPE Price: $177.99 |
| 3 |
98980-06012-00 |
SCREW, BIND Price: $9.49 |
| 4 |
90206-06090-00 |
WASHER, WAVE Price: $9.49 |
| 5 |
90201-05015-00 |
WASHER, PLATE Price: $9.49 |
| 6 |
90201-05016-00 |
WASHER, PLATE Price: $4.85 |
| 7 |
5XT-1465R-00-00 |
PLATE, PROTECTOR 1 Price: $5.49 |
| 8 |
5XT-1465T-00-00 |
PLATE, PROTECTOR 2 Price: $6.49 |
| 9 |
5XT-1479K-00-00 |
COVER, 3 Price: $32.99 |
| 10 |
90201-05017-00 |
WASHER, PLATE Price: $9.49 |
| 11 |
90201-05015-00 |
WASHER, PLATE Price: $9.49 |
| 12 |
90154-06020-00 |
SCREW, BINDING Price: $6.49 |
| 13 |
5XT-1465U-00-00 |
PLATE, PROTECTOR 3 Price: $6.49 |
| 14 |
3C5-14711-10-00 |
MUFFLER 1 Price: $439.99 |
| 15 |
90109-085G6-00 |
BOLT Price: $3.50 |
| 16 |
3C5-14728-00-00 |
PROTECTOR, MUFFLER 2 Price: $252.99 |
| 17 |
98980-06012-00 |
SCREW, BIND Price: $9.49 |
| 18 |
90206-06090-00 |
WASHER, WAVE Price: $9.49 |
| 19 |
90202-05187-00 |
WASHER, PLATE Price: $1.70 |
| 20 |
90202-05188-00 |
WASHER, PLATE Price: $9.49 |
| 21 |
5XT-14738-00-00 |
PROTECTOR, MUFFLER 3 Price: $17.99 |
| 22 |
5XT-14748-00-00 |
PROTECTOR, MUFFLER 4 Price: $31.99 |
| 23 |
3YF-14714-00-00 |
GASKET, MUFFLER Price: $39.99 |
| 24 |
1RH-14752-01-00 |
PIPE, OUTLET Price: $153.99 |
| 25 |
98507-06010-00 |
SCREW, PAN HEAD Price: $3.85 |
| 26 |
92907-06600-00 |
WASHER, PLATE Price: $1.00 |
| 27 |
3GD-14613-00-00 |
GASKET, EXHAUST PIPE Price: $15.49 |
| 28 |
95704-08500-00 |
NUT, FLANGE Price: $9.49 |
| 29 |
90201-08326-00 |
WASHER, PLATE Price: $9.49 |
| 30 |
90111-08020-00 |
BOLT This part replaces 90111-08019-00. Price: $5.49 |
| 31 |
90201-087A9-00 |
WASHER, PLATE Price: $5.49 |
