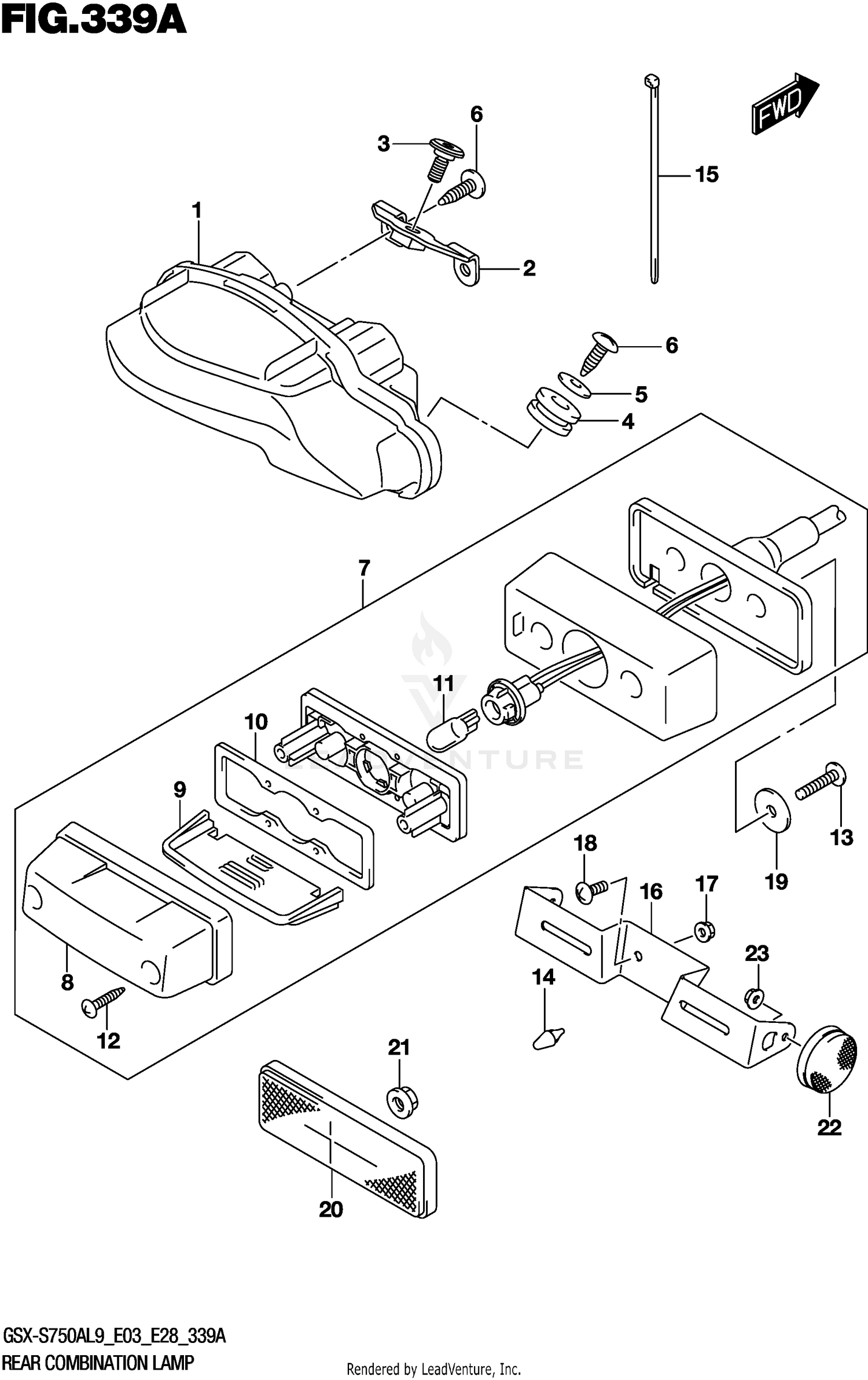

REAR COMBINATION LAMP
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 35710-04K01 | LAMP ASSY, RR COMB Price: $242.48 |
| 2 | 35726-13K00 | BRACKET, REAR COMBINATION LAM Price: $6.38 |
| 3 | 09139-05092 | SCREW (5X13) Price: $2.70 |
| 4 | 09320-10073 | CUSHION This part replaces 09320-10054. Price: $2.39 |
| 5 | 09160-05037 | WASHER (5.5X16X1.2) Price: $1.81 |
| 6 | 03541-0516A | SCREW Price: $1.65 |
| 7 | 35910-16G90 | LAMP ASSY, LICENSE Price: $86.39 |
| 11 | 09471-12216 | BULB (12V5W) Price: $6.53 |
| 13 | 03541-0540A | SCREW Price: $1.54 |
| 14 | 09321-06038 | CUSHION This part replaces 09321-06028. Price: $1.98 |
| 15 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 16 | 35927-44H30 | BRACKET, LICENSE PLATE Price: $19.90 |
| 17 | 09159-06096 | NUT (M6) Price: $3.31 |
| 18 | 02142-0616A | SCREW Price: $1.65 |
| 19 | 09160-05501 | WASHER (5.5X20X1.2) Price: $2.25 |
| 20 | 35970-07F01 | REFLECTOR ASSY,RR Price: $25.79 |
| 21 | 08316-1005A | NUT Price: $2.64 |
| 22 | 35970-13K00 | REFLECTOR ASSY, REAR SIDE Price: $17.59 |
