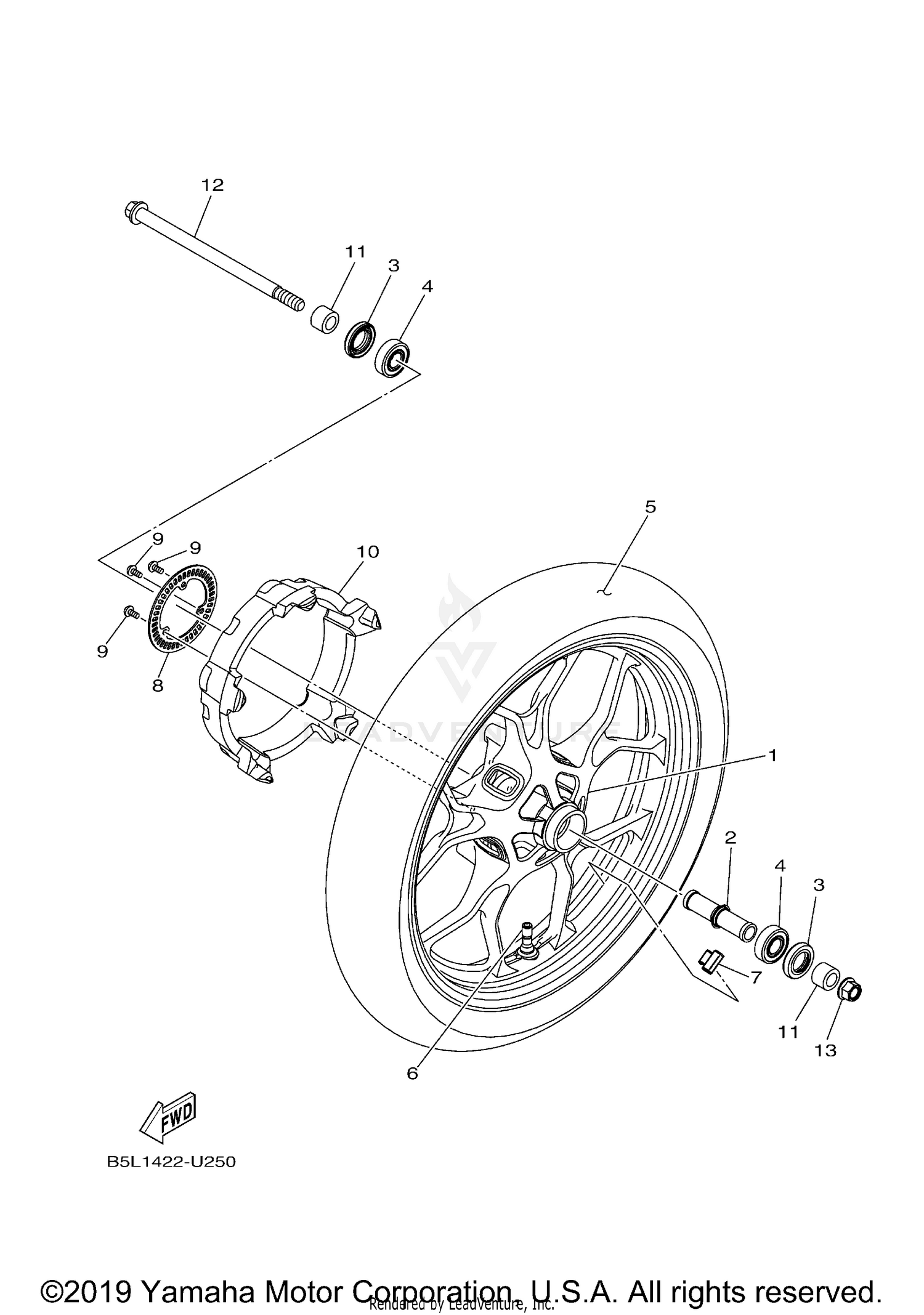

FRONT WHEEL
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 1WD-F510C-01-00 | COLLAR ASSY. Price: $14.99 |
| 3 | 93106-26005-00 | OIL SEAL This part replaces 93106-26815-00. Price: $7.30 |
| 4 | 93306-302X4-00 | BEARING Price: $46.99 |
| 6 | 93900-00828-00 | VALVE, RIM Price: $4.95 |
| 8 | 2DP-F517G-00-00 | ROTOR, SENSOR Price: $12.49 |
| 9 | 90149-05030-00 | SCREW This part replaces 90149-05029-00. Price: $2.80 |
| 10 | B5L-F514A-00-00 | RING, WHEEL 1 Price: $24.99 |
| 11 | 1PA-F5386-00-00 | COLLAR, SPROCKET AXLE Price: $24.99 |
| 12 | 1WD-25181-00-00 | AXLE, WHEEL Price: $47.99 |
