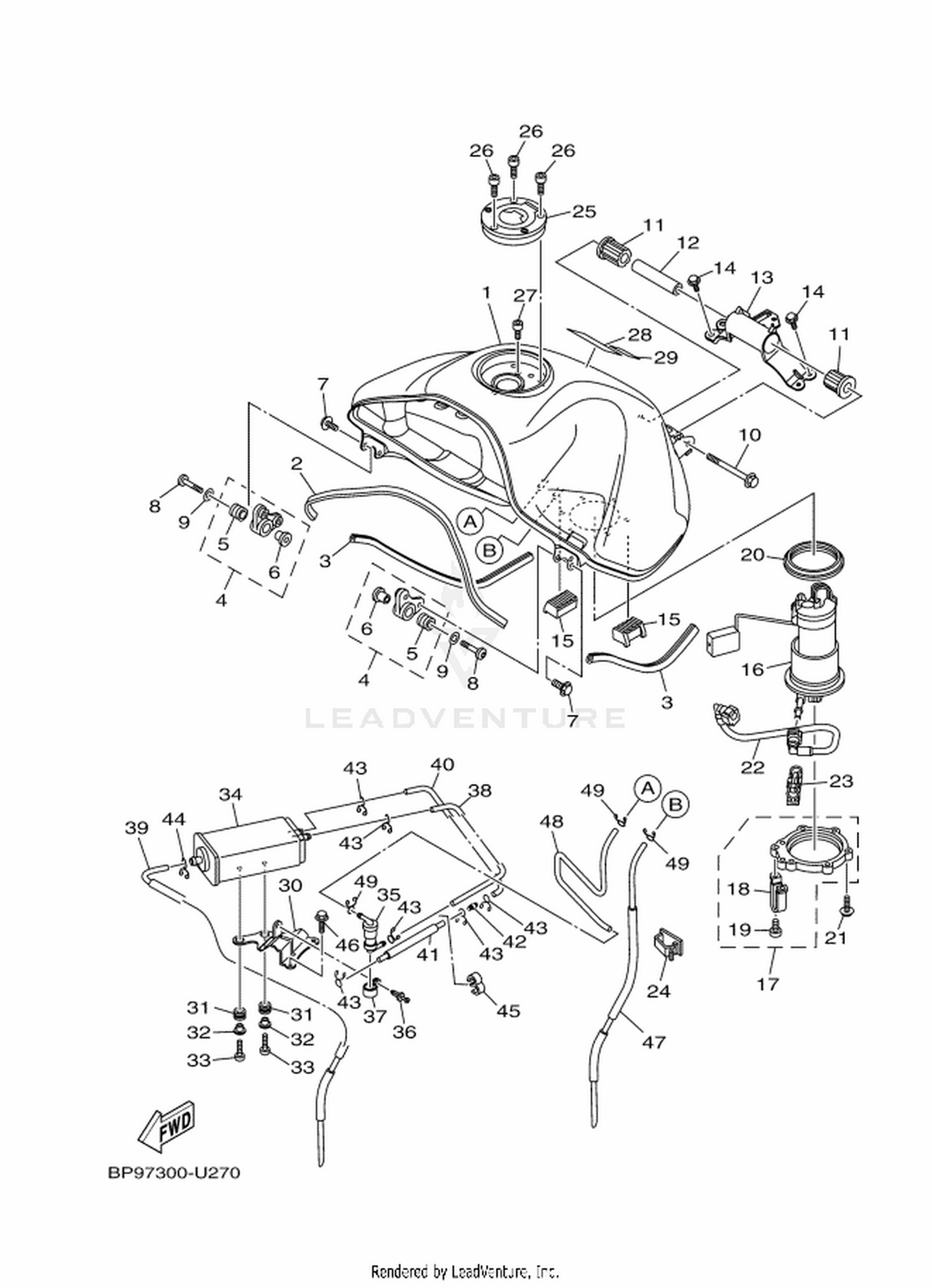

27 FUEL

27 FUEL

Parts (43)

RefPart NumberDescription
2 23P-24188-00 MOLD, FUEL TANK Price: Call Us
3 23P-24188-10 MOLD, FUEL TANK Price: Call Us
4 23P-24104-01 TANK BRACKET ASSY Price: Call Us
7 90119-06200 BOLT, WITH WASHER Price: Call Us
8 90149-06328 SCREW Price: Call Us
9 90201-06072 WASHER, PLATE Price: Call Us
10 95812-08110 BOLT, FLANGE Price: Call Us
11 23P-24183-00 DAMPER, LOCATING 3 Price: Call Us
12 90387-12050 COLLAR Price: Call Us
13 23P-2413Y-00 BRACKET, TANK FITTING Price: Call Us
14 95802-06020 BOLT, FLANGE Price: Call Us
15 23P-24181-00 DAMPER, LOCATING 1 Price: Call Us
16 23P-13907-00 FUEL PUMP COMP. Price: Call Us
17 23P-24105-00 TANK BRACKET ASSY 2 Price: Call Us
19 98902-05008 SCREW, BIND Price: Call Us
20 19B-24486-01 O-RING Price: Call Us
22 23P-13971-00 PIPE, FUEL 1 Price: Call Us
23 90464-16005 CLAMP Price: Call Us
24 90464-13012 CLAMP Price: Call Us
25 39P-24602-00 CAP ASSY Price: Call Us
26 90110-05112 BOLT, HEXAGON SOCKET HEAD Price: Call Us
27 91312-05010 BOLT, HEXAGON SOCKET HEAD Price: Call Us
28 4C8-21568-10 LABEL, WARNING Price: Call Us
29 B88-2817K-10 LABEL, FUEL Price: Call Us
30 23P-2419F-00 BRACKET, CANISTOR Price: Call Us
31 90480-13018 GROMMET Price: Call Us
32 90387-062L2 COLLAR Price: Call Us
33 92012-06016 BOLT, BUTTON HEAD Price: Call Us
34 5PX-24170-00 CANISTER ASSY Price: Call Us
35 2C0-24180-00 ROLL OVER VALVE ASSY Price: Call Us
36 90269-05001 RIVET Price: Call Us
37 90464-15014 CLAMP Price: Call Us
38 23P-24314-00 PIPE 4 Price: Call Us
39 23P-24315-00 PIPE 5 Price: Call Us
40 BP8-24316-00 PIPE 6 Price: Call Us
41 BP8-24317-00 PIPE 7 Price: Call Us
42 BP8-14568-00 JOINT Price: Call Us
43 90467-09006 CLIP Price: Call Us
44 90467-10008 CLIP Price: Call Us
45 90464-09M31 CLAMP Price: Call Us
46 95802-06012 BOLT, FLANGE Price: Call Us
47 23P-24318-00 PIPE, OVERFLOW Price: Call Us
48 23P-24313-00 PIPE 3 Price: Call Us
