Parts Catalog

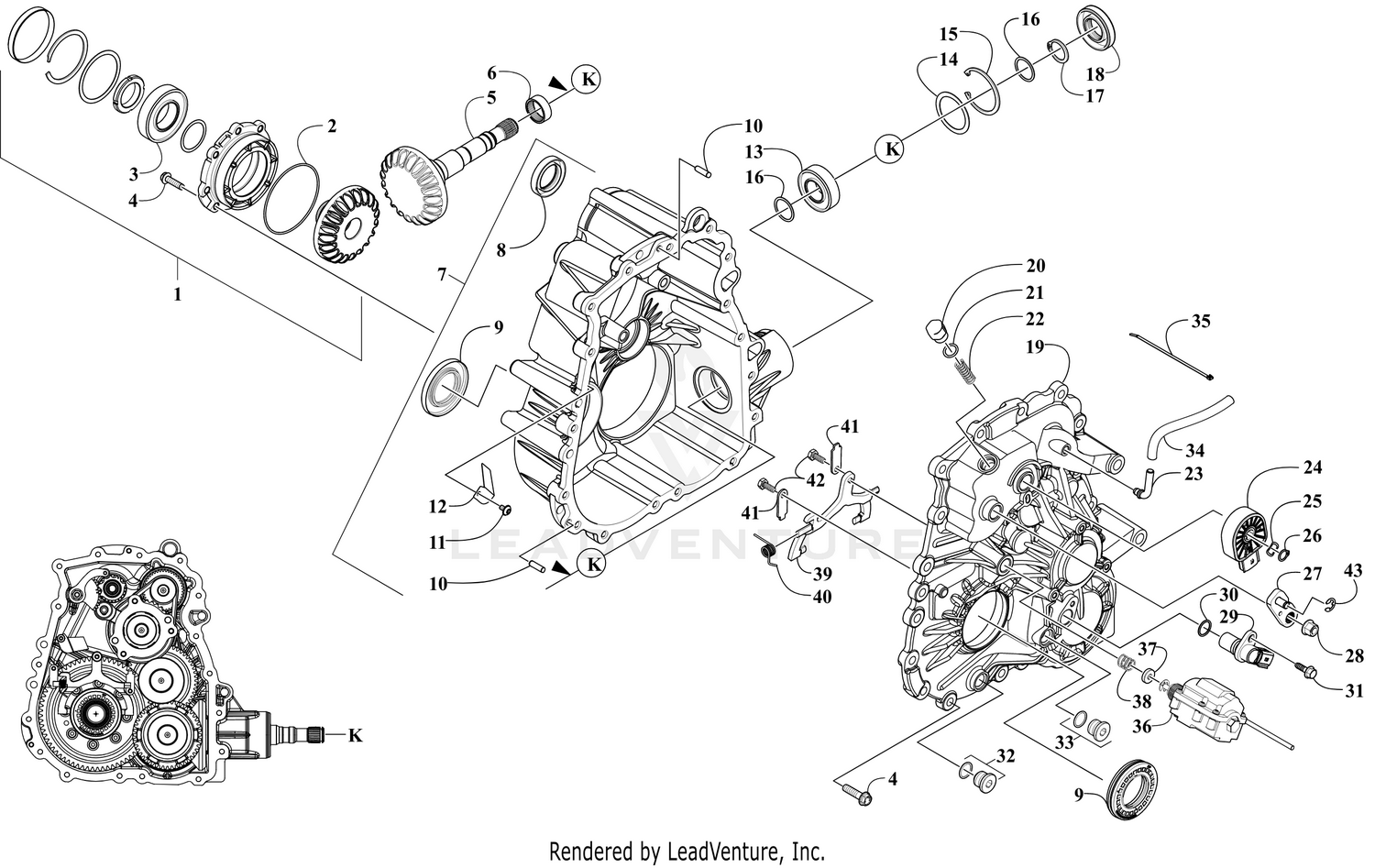

TRANSAXLE CASE/COVER [304386]

Parts (40)

Ref	Part Number	Description
2	0817-229	O-Ring Price: $2.99
3	0817-226	Bearing Price: $75.95
4	0817-155	Screw, Hex Price: $0.99
5	0817-223	Gear, 22T - Bevel Price: $141.95
6	0817-224	Bearing, Needle Price: $28.95
8	0817-227	Seal Price: $106.95
9	0817-219	Seal Price: $21.39
10	0817-225	Pin, Dowel Price: $2.19
11	0817-154	Screw, Self-Tapping Price: $0.11
12	0817-213	Deflector, Oil Price: $226.95
13	0817-177	Bearing Price: $12.91
14	0817-171	Washer Price: $2.19
15	0817-163	Ring, Retaining Price: $1.79
16	0817-170	Shim Price: $226.95
17	0817-161	Ring, Retaining Price: $0.97
18	0817-215	Seal Price: $226.95
19	0817-239	Cover Price: $219.95
20	0817-208	Plug Price: $7.51
21	0817-218	O-Ring Price: $0.64
22	0817-182	Spring Price: $0.64
23	0817-195	Fitting, Elbow Price: $2.80
24	0409-252	Switch, Gear Price: $155.95
25	0817-183	Spring, Wave Price: $0.64
26	0817-166	Ring, Retaining Price: $0.54
27	0817-252	Bell Crank Price: $13.95
28	0817-157	Nut, Lock Price: $0.59
29	0430-167	Sensor, Speed Price: $32.95
30	0817-260	O-Ring Price: $1.87
31	0817-156	Screw Price: $0.39
32	0817-153	Plug Price: $12.78
33	0817-152	Plug Price: $11.61
34	0410-388	Hose, Vent Price: $3.09
35	0123-788	Tie, Cable - 8 in Price: $0.23
36	0430-168	Actuator Price: $124.95
37	0817-255	Cup, Spring Price: $0.99
38	0817-237	Spring Price: $0.59
39	0817-248	Fork, Shift Price: $17.59
40	0817-238	Spring Price: $0.59
41	0817-253	Retainer Price: $0.79
42	0817-235	Screw Price: $0.99
