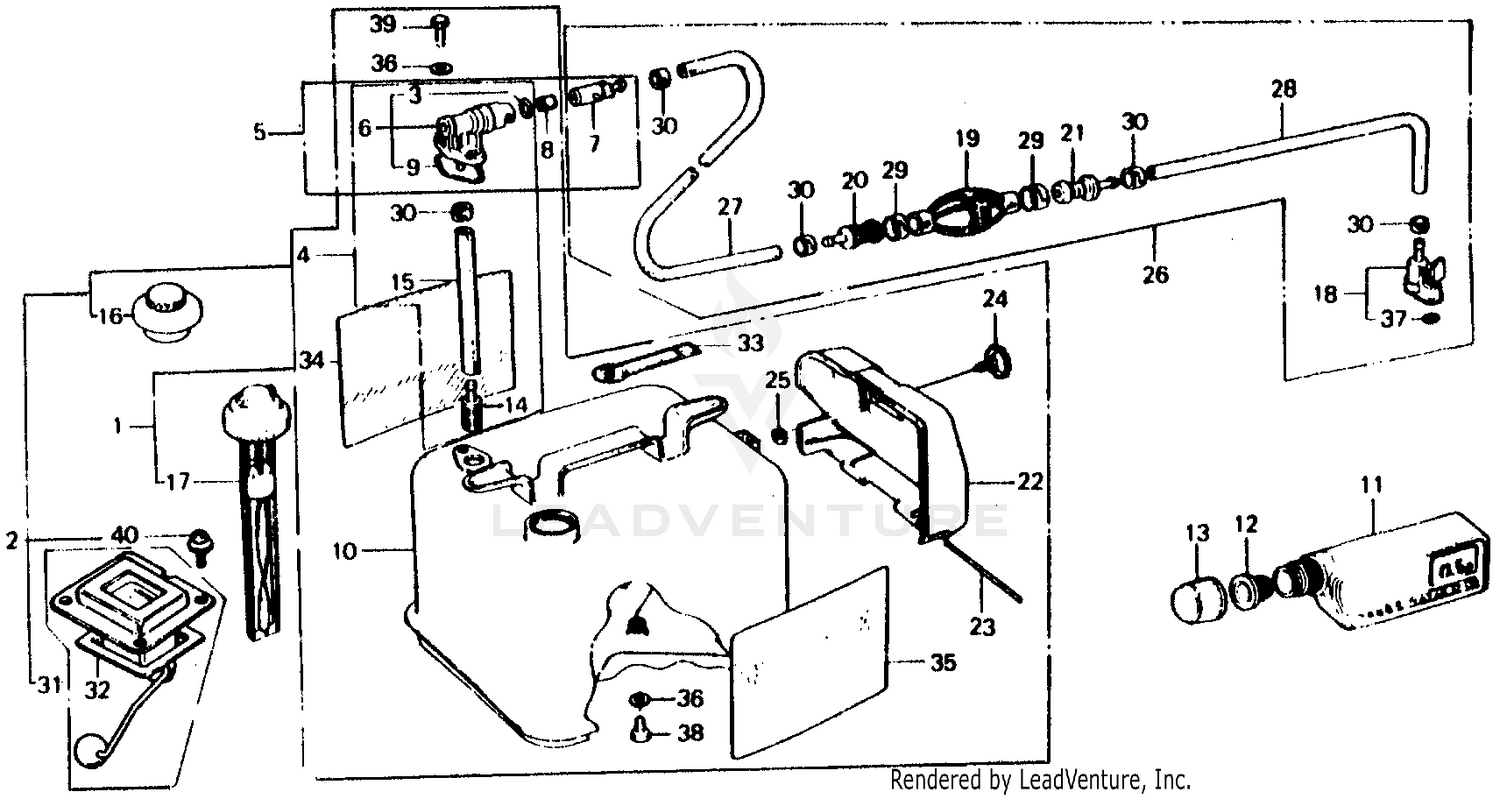

| Ref | Part Number | Description |
|---|
| 3 |
16075-935-006 |
O-RING Price: $1.50 |
| 4 |
16900-881-000 |
SEE PART DETAILS - SUP; JOINT A, FUEL Price: $62.82 |
| 5 |
16950-935-016 |
SEE PART DETAILS - PRI; JOINT, FUEL CONSENT Price: Call Us |
| 6 |
16951-935-006 |
JOINT A, FUEL CONSENT Price: $47.46 |
| 7 |
16952-935-016 |
SEE PART DETAILS - PRI; JOINT B, FUEL CONSENT Price: $15.30 |
| 8 |
16953-935-000 |
ABSORBER, FUEL Price: $4.46 |
| 9 |
16962-865-010 |
RING, PETCOCK SEAL Price: $4.10 |
| 10 |
17500-881-000H |
TANK, FUEL *R8* (BRIGHT RED) (NOT AVAILABLE) Price: Call Us |
| 11 |
17570-921-000 |
SEE PART DETAILS - PRI; TANK, OIL Price: $18.24 |
| 12 |
17572-801-810 |
CAP, SUB-TANK (INNER) (NOT AVAILABLE) Price: Call Us |
| 13 |
17573-801-810 |
SEE PART DETAILS - PRI; CAP, SUB-TANK Price: Call Us |
| 14 |
17583-881-000 |
FILTER, FUEL Price: $8.98 |
| 15 |
17611-935-000 |
TUBE (INNER) Price: $5.88 |
| 17 |
17620-921-153 |
CAP, FUEL FILLER (NOT AVAILABLE) Price: Call Us |
| 18 |
17650-921-003ZB |
SEE PART DETAILS - PRI; CONNECTOR, FUEL *NH1* (BLACK) Price: $51.42 |
| 19 |
17661-921-010 |
SEE PART DETAILS - PRI; BULB, PRIMER Price: $17.80 |
| 20 |
17670-921-000 |
VALVE, IN. Price: $8.78 |
| 21 |
17680-921-000 |
VALVE, OUTLET Price: $12.34 |
| 22 |
17696-921-010 |
BOX, TOOL (NOT AVAILABLE) Price: Call Us |
| 23 |
17697-921-000 |
BAR (3X150) (NOT AVAILABLE) Price: Call Us |
| 24 |
17698-921-000 |
LATCH, TOOL BOX (NOT AVAILABLE) Price: Call Us |
| 25 |
17699-921-000 |
STOPPER, LATCH (NOT AVAILABLE) Price: Call Us |
| 26 |
17700-935-000ZA |
TUBE, FUEL *B9* (ATLANTIS BLUE) (N/A: SEE COMPONENTS) Price: Call Us |
| 27 |
17701-921-000 |
TUBE, FUEL LONG (NOT AVAILABLE) Price: $44.58 |
| 28 |
17702-921-000 |
TUBE, FUEL SHORT Price: $9.94 |
| 29 |
17703-921-010 |
SEE PART DETAILS - PRI; BAND, TUBE CLIP (20MM) Price: $4.84 |
| 30 |
17704-921-000 |
BAND, TUBE CLIP (11MM) Price: $5.16 |
| 33 |
87571-881-671 |
MARK, TANK CAUTION (ENGLISH/FRENCH) Price: $5.50 |
| 34 |
87573-881-C41 |
MARK B, TANK (ENGLISH) Price: $13.30 |
| 35 |
87574-881-670 |
MARK, TANK (FRENCH) Price: $12.88 |
| 36 |
90445-700-000 |
GASKET, FIBER (6MM) Price: $1.64 |
| 37 |
91353-921-310 |
O-RING (5.5MM) Price: $2.34 |
| 38 |
92101-06012-4J |
SEE PART DETAILS - PRI; BOLT, HEX. (6X12) Price: $2.58 |
