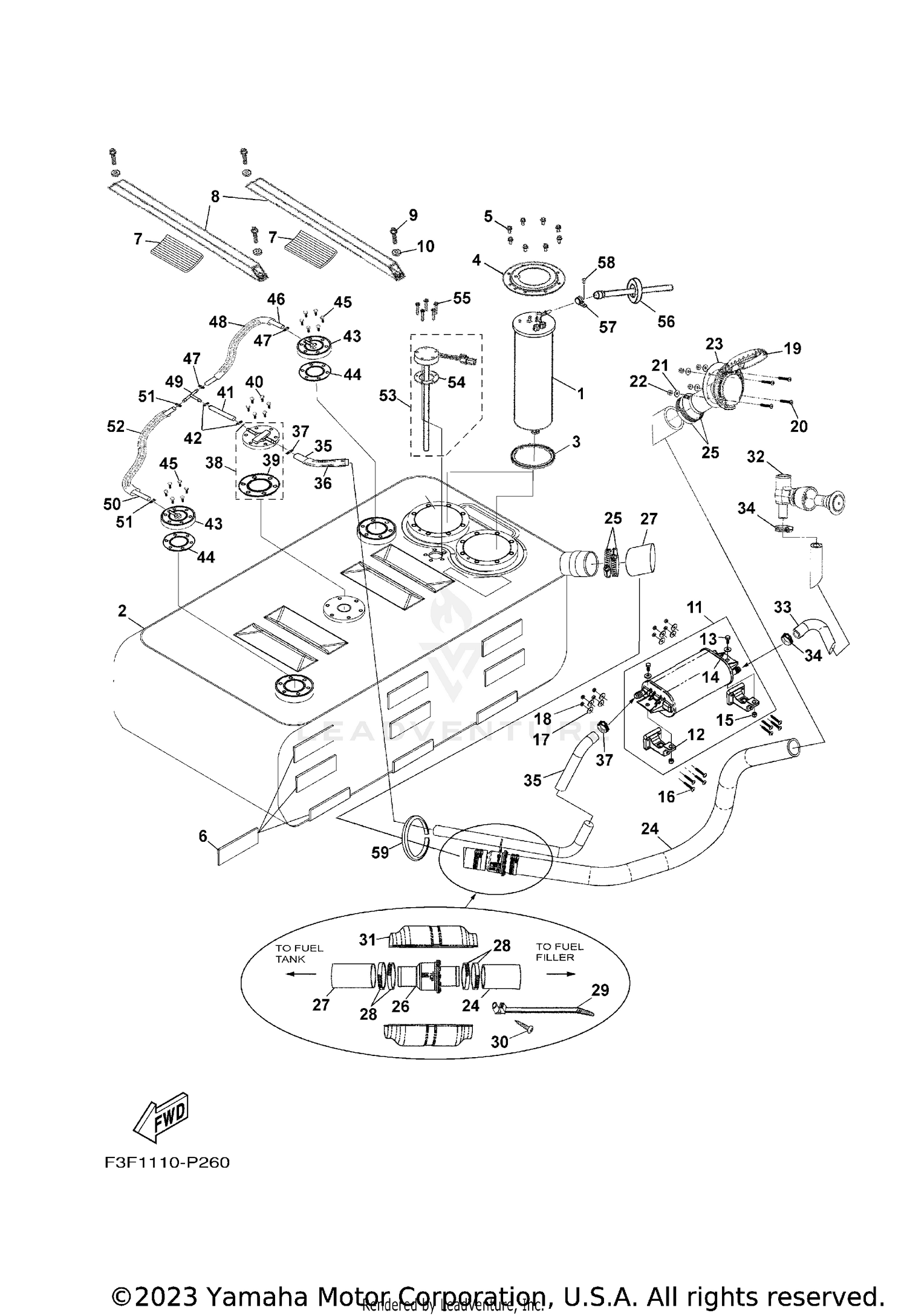

| Ref | Part Number | Description |
|---|
| 1 |
6AP-13907-05-00 |
FUEL PUMP COMP. This part replaces 6AP-13907-02-00. Price: $1,192.49 |
| 2 |
F2J-U7711-01-00 |
TANK, FUEL Price: $561.99 |
| 3 |
F1B-67747-00-00 |
PACKING, SEAL Price: $22.49 |
| 4 |
F1B-U7773-00-00 |
RING Price: $30.99 |
| 5 |
90149-14SC7-00 |
SCREW Price: $5.99 |
| 6 |
F2A-U6632-00-00 |
PAD Price: $6.99 |
| 7 |
GJ3-U755J-00-00 |
MAT,WATER LOCK Price: $112.99 |
| 8 |
F1T-U777B-00-00 |
FIX, FUEL TANK Price: $96.99 |
| 9 |
90101-08802-00 |
BOLT Price: $1.15 |
| 10 |
9299R-08600-00 |
WASHER Price: $6.99 |
| 11 |
F3H-U775L-00-00 |
BRACKET,OILTANK 2 Price: $244.99 |
| 12 |
F2D-U781E-00-00 |
BRACKET,FILTER Price: $43.99 |
| 13 |
90101-04S10-00 |
BOLT Price: $5.99 |
| 14 |
90209-14SA5-00 |
WASHER Price: $0.45 |
| 15 |
90185-14S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 16 |
90149-10S20-00 |
SCREW Price: $7.99 |
| 17 |
90209-10SB1-00 |
WASHER Price: $5.99 |
| 18 |
90185-10S00-00 |
NUT, SELF-LOCKING Price: $4.99 |
| 19 |
F2J-U783E-20-00 |
FUEL FILLER ASSY Price: $163.99 |
| 20 |
90157-08S16-00 |
SCREW, PAN HEAD Price: $3.99 |
| 21 |
90201-08S00-00 |
WASHER, PLATE Price: $3.99 |
| 22 |
90185-08S00-00 |
NUT, SELF-LOCKING Price: $6.99 |
| 23 |
F2J-U7834-00-00 |
PACKING FUEL FILLER Price: $14.99 |
| 24 |
F3F-U7844-00-00 |
HOSE Price: $99.99 |
| 25 |
90450-57802-00 |
HOSE CLAMP ASSY Price: $4.99 |
| 26 |
F2J-U7767-00-00 |
CHECK VALVE Price: $50.99 |
| 27 |
F2J-U7844-00-00 |
HOSE Price: $26.99 |
| 28 |
90450-57802-00 |
HOSE CLAMP ASSY Price: $4.99 |
| 29 |
90464-99806-00 |
CLAMP Price: $6.99 |
| 30 |
90167-10S12-00 |
SCREW, TAPPING Price: $5.99 |
| 31 |
F2J-U1489-01-00 |
PROTECTOR TUBE Price: $46.99 |
| 32 |
F2J-U7850-00-00 |
AIR VENT Price: $71.99 |
| 33 |
F3F-U7856-00-00 |
HOSE, AIR VENT 3 Price: $66.99 |
| 34 |
90450-27801-00 |
HOSE CLAMP ASSY. Price: $3.99 |
| 35 |
F3F-U7856-10-00 |
HOSE, AIR VENT 3 Price: $32.99 |
| 36 |
F2J-U773J-20-00 |
PROTECTOR, HOSE Price: $6.99 |
| 37 |
90450-27801-00 |
HOSE CLAMP ASSY. Price: $3.99 |
| 38 |
F2J-U7744-20-00 |
AIR VENT Price: $205.99 |
| 39 |
F2J-U7852-20-00 |
PACKING Price: $25.99 |
| 40 |
90149-10SB2-00 |
SCREW Price: $0.45 |
| 41 |
F2J-U785H-00-00 |
HOSE, AIR VENT 3 Price: $5.49 |
| 42 |
90601-118UF-00 |
BAND, HOSE 18 Price: $6.99 |
| 43 |
F2J-U7744-01-00 |
AIR VENT Price: $122.99 |
| 44 |
F2J-U7852-00-00 |
PACKING Price: $31.99 |
| 45 |
90149-10SB2-00 |
SCREW Price: $0.45 |
| 46 |
F2J-U785G-00-00 |
HOSE, AIR VENT Price: $9.99 |
| 47 |
90601-118UF-00 |
BAND, HOSE 18 Price: $6.99 |
| 48 |
F2J-U773J-00-00 |
PROTECTOR, HOSE Price: $4.65 |
| 49 |
F2J-U7855-10-00 |
ELBOW, AIR VENT Price: $39.99 |
| 50 |
F2J-U785J-00-00 |
HOSE AIR VENT Price: $11.49 |
| 51 |
90601-118UF-00 |
BAND, HOSE 18 Price: $6.99 |
| 52 |
F2J-U773J-10-00 |
PROTECTOR, HOSE Price: $4.95 |
| 53 |
F2A-U824B-00-00 |
SENDER, FUEL Price: $182.99 |
| 54 |
F1C-U775E-00-00 |
PACKING Price: $17.99 |
| 55 |
90149-10SB2-00 |
SCREW Price: $0.45 |
| 56 |
F1C-U136D-10-00 |
GROMMET Price: $5.99 |
| 57 |
F1C-U781B-00-00 |
HOLDER PIPE 1 Price: $1.90 |
| 58 |
90149-10S06-00 |
SCREW Price: $0.30 |
