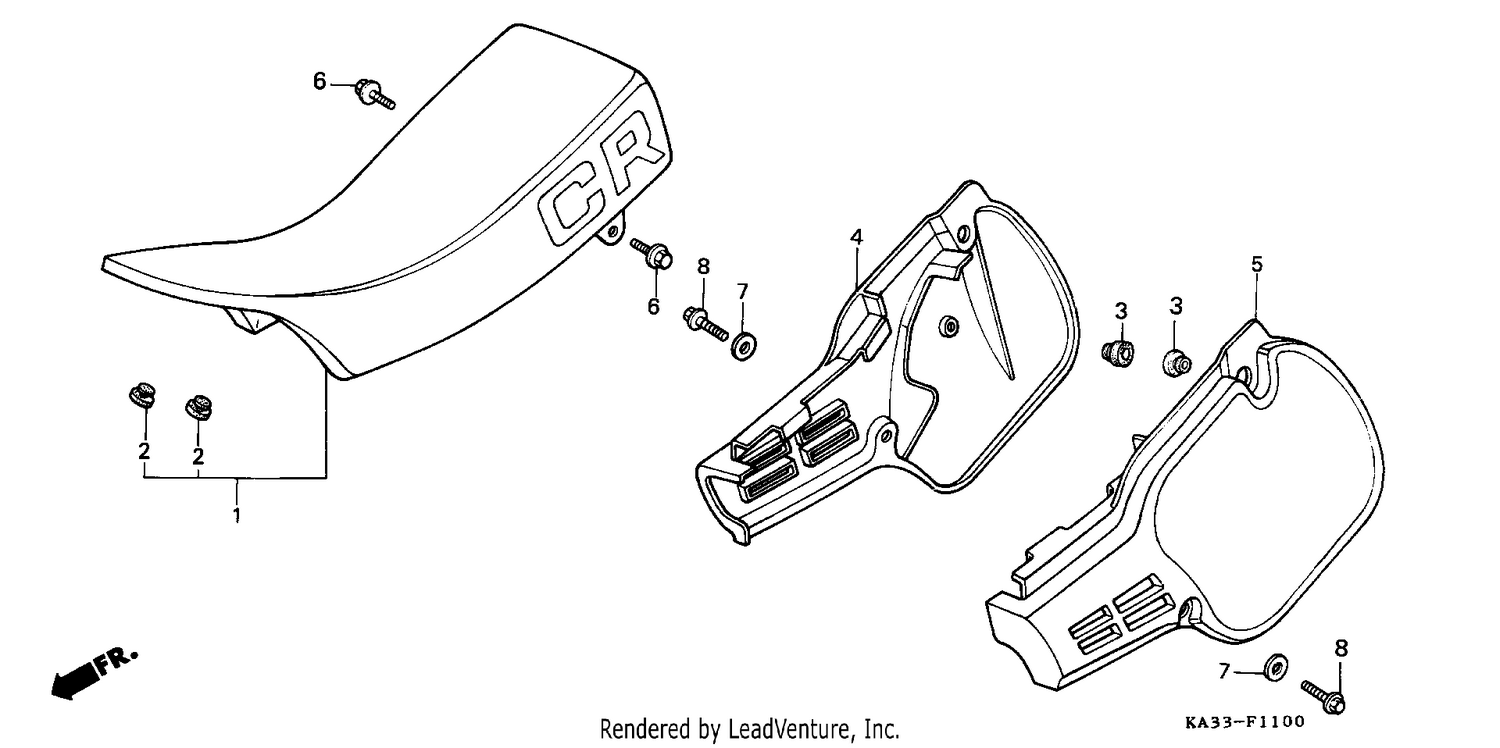

SEAT/SIDE COVER (1)
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 77100KA3740 | SEAT COMP. (SEAT THICKNESS 98MM) Price: Call Us |
| 1 | 77100KA3810 | SEAT COMP. (SEAT THICKNESS 144MM) Price: Call Us |
| 2 | 77110KA3730 | RUBBER, SEAT MOUNTING Price: Call Us |
| 3 | 83512KA4700 | RUBBER, SIDE COVER Price: Call Us |
| 4 | 83520KA3730ZC | COVER SUB ASSY., R. SIDE *TYPE3* Price: Call Us |
| 5 | 83620KA3730ZC | COVER SUB ASSY., L. SIDE *TYPE3* Price: Call Us |
| 6 | 90133KA3730 | BOLT, FLANGE, 8X12 Price: Call Us |
| 7 | 90506KA3710 | WASHER, SIDE COVER Price: Call Us |
