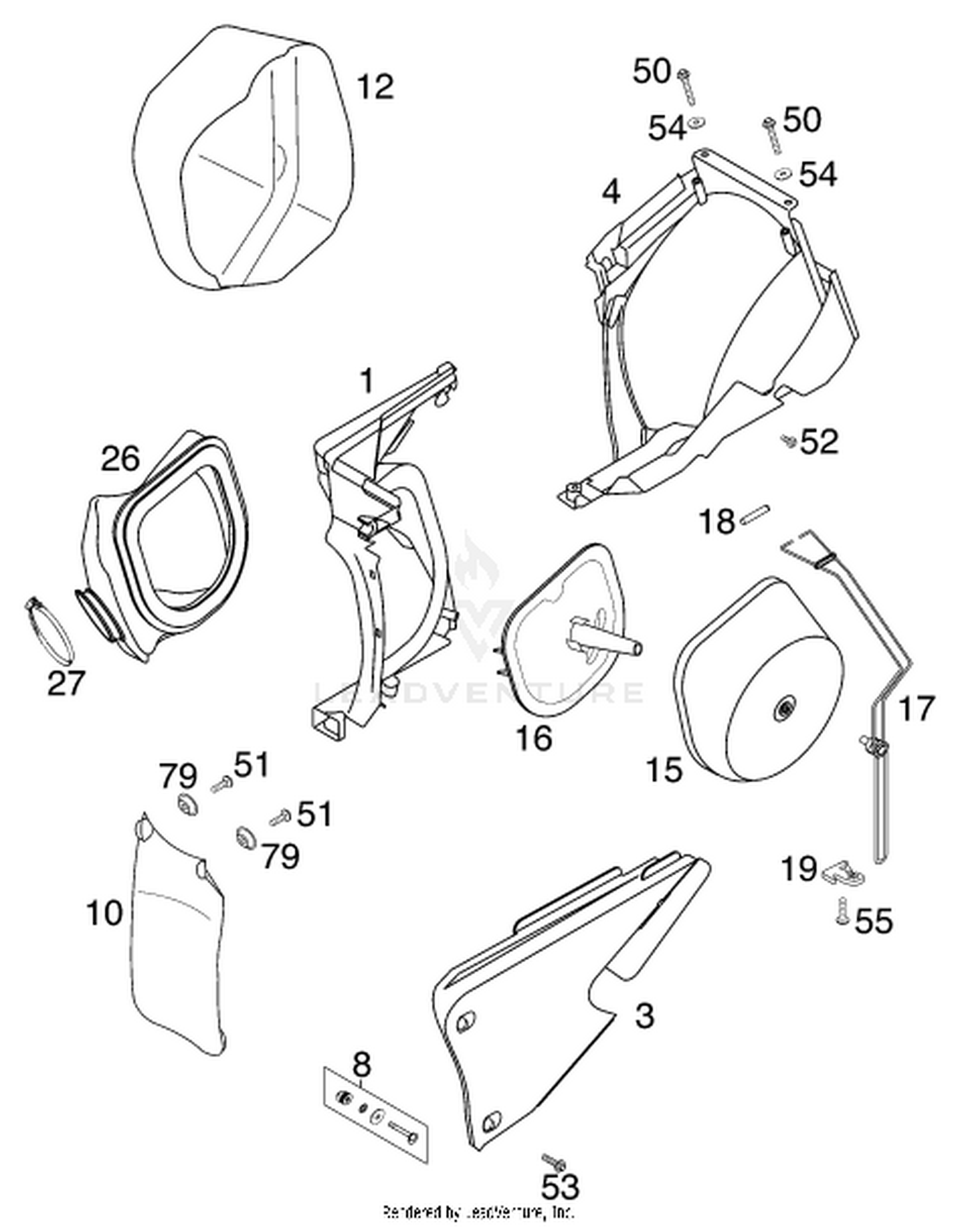

06 AIR FILTER

06 AIR FILTER

Parts (18)

RefPart NumberDescription
3 50306003044 FILTER BOX COVER CPL. 2-ST '98 Price: Call Us
4 50306001052 FILTER BOX PART REAR '98 Price: Call Us
8 50306008144 Quick lock cpl. '98 This part replaces 50306008044. Price: Call Us
10 50306010000 FENDER FOR FILTER BOX '98 Price: Call Us
12 50306012000 THROTTLE CAP 125-380EGS CPL98 Not Available Price:
15 51206015000 AIR FILTER 125 EXE 2000 Price: Call Us
16 51206016000 FILTER CARRIER 125 EXE 2000 Price: Call Us
17 50306017000 FILTER SUPPORT CPL.2-STROKE'98 Price: Call Us
18 50306018000 FILTER SUPPORT BUSH 125-380'98 Price: Call Us
19 50306019000 FASTEN. DEVICE FILTER SUPPORT Price: Call Us
26 54706026000 CARBU.CONNECT.BOOT 125-380 '98 Price: Call Us
27 51006027000 HOSE CLAMP 50-70MM Price: Call Us
50 0017060405 SPECIAL SCREW T60 6X40 WS=6 This part replaces 0017060403. Price: Call Us
51 0017060205 SCREW FOR PLASTIC K60X20 SW6 This part replaces 0017060203. Price: Call Us
52 0009050106 EJOT SPIRAL SCREW SF M5X10-K This part replaces 0009050103. Price: Call Us
53 0016070253 PLASTIC SCREW K7X25 PT1447 Price: Call Us
54 0125060003 WASHER DIN0125-A 6,4 Price: Call Us
55 0017060305 Special screw K60X30 WS=6 This part replaces 0017060303. Price: Call Us
