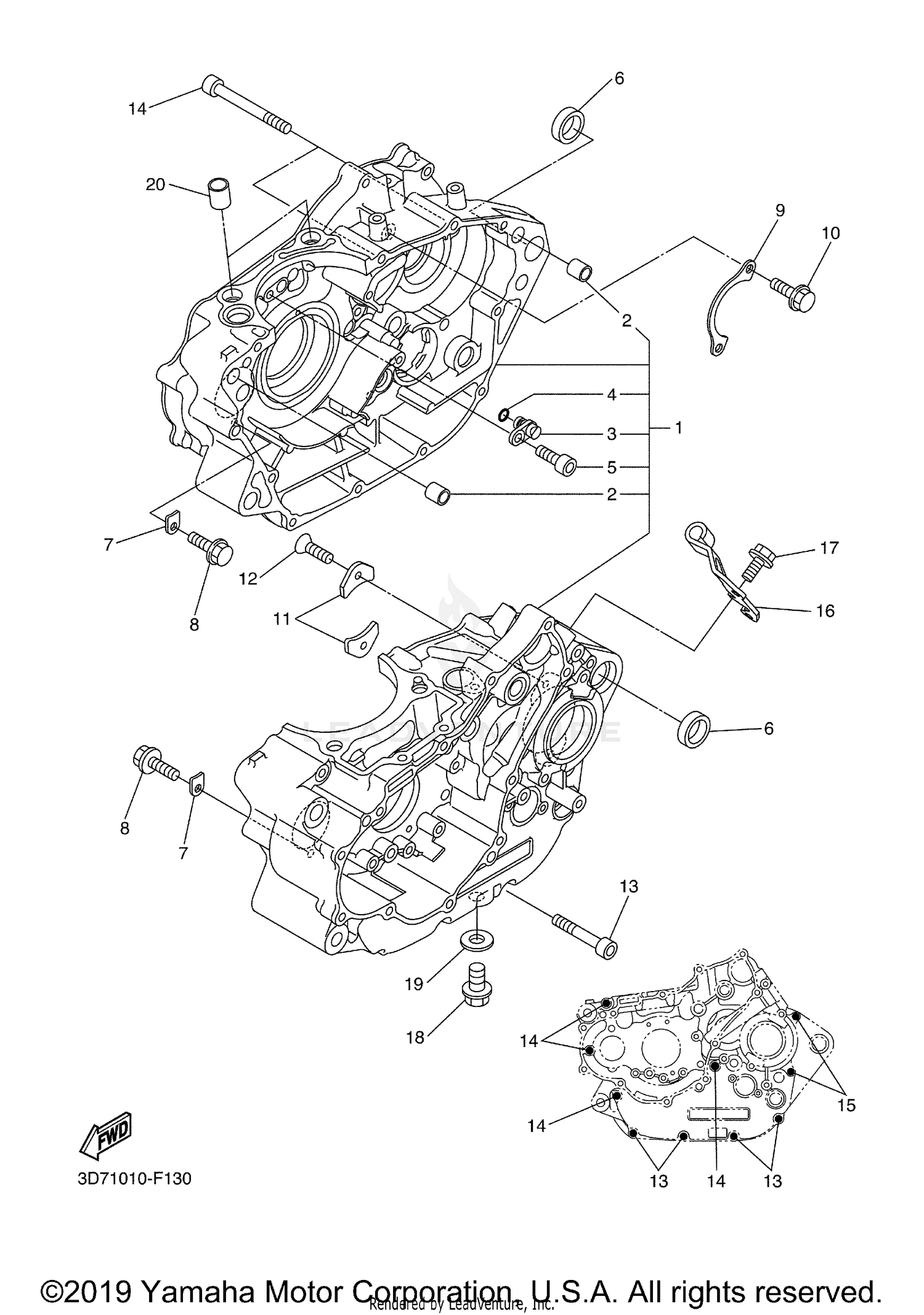

| Ref | Part Number | Description |
|---|
| 1 |
3D7-15100-01-00 |
CRANKCASE ASSY Price: $1,130.99 |
| 2 |
93612-16254-00 |
PIN, DOWEL Price: $6.49 |
| 3 |
3D7-15155-00-00 |
NOZZLE 3 Price: $36.99 |
| 4 |
93210-06632-00 |
O-RING This part replaces 93210-06422-00. Price: $9.49 |
| 5 |
91317-06012-00 |
BOLT This part replaces 90110-06182-00. Price: $9.49 |
| 6 |
90387-19004-00 |
COLLAR Price: $11.49 |
| 7 |
5DH-18562-00-00 |
PLATE, STOPPER 2 Price: $8.49 |
| 8 |
95022-06012-00 |
BOLT, FLANGE This part replaces 90105-06081-00. Price: $3.55 |
| 9 |
3D7-15388-00-00 |
PLATE, BEARING COVER Price: $5.99 |
| 10 |
95022-06012-00 |
BOLT, FLANGE This part replaces 90105-06081-00. Price: $3.55 |
| 11 |
4JT-15381-01-00 |
PLATE, BEARING COVER Price: $14.49 |
| 12 |
90151-06052-00 |
SCREW This part replaces 90151-06053-00. Price: $9.49 |
| 13 |
91312-06045-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.40 |
| 14 |
91317-06065-00 |
BOLT This part replaces 91312-06065-00. Price: $4.05 |
| 15 |
91314-06090-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 91312-06090-00. Price: $9.49 |
| 16 |
3D7-15441-00-00 |
HOLDER, CLUTCH CABLE Price: $17.99 |
| 17 |
95022-06014-00 |
BOLT, FLANGE Price: $3.40 |
| 18 |
90340-12006-00 |
PLUG, STRAIGHT SCREW Price: $4.55 |
| 19 |
90430-12213-00 |
GASKET Price: $6.49 |
