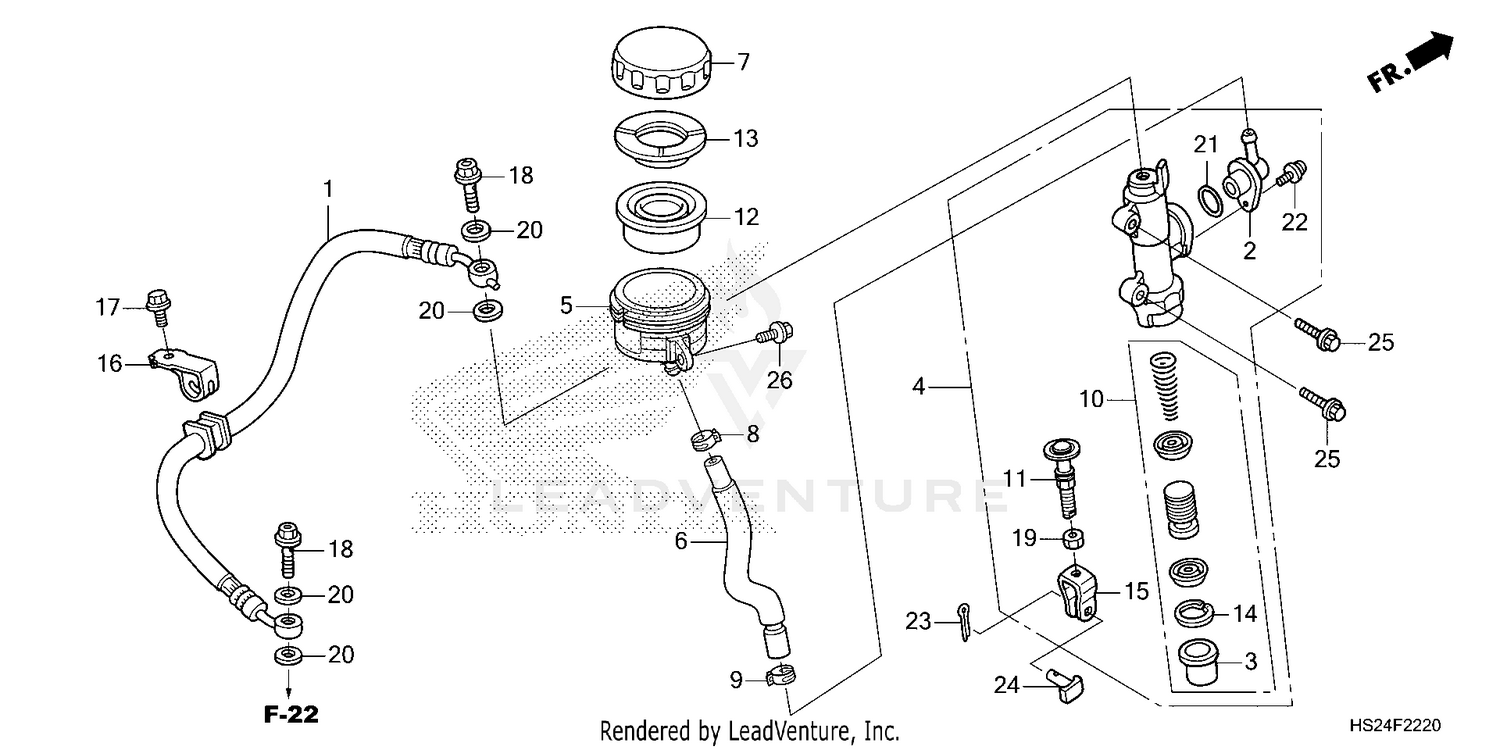

| Ref | Part Number | Description |
|---|
| 1 |
43310-HN8-F41 |
HOSE, RR. BRAKE Price: $37.04 |
| 2 |
43503-MB2-006 |
CONNECTOR, MASTER CYLINDER Price: $13.73 |
| 3 |
43504-MB2-006 |
BOOT Price: $12.16 |
| 4 |
43510-HN8-305 |
MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) This part replaces 43510-HN8-016. Price: $131.56 |
| 5 |
43511-MR7-016 |
CUP, OIL (NISSIN) Price: $37.07 |
| 6 |
43512-HN8-006 |
HOSE, RR. BRAKE MASTER CYLINDER Price: $8.78 |
| 7 |
43513-MY1-006 |
CAP, OIL CUP Price: $35.62 |
| 8 |
43514-KS6-701 |
CLAMP, MASTER CYLINDER OIL HOSE Price: $15.89 |
| 9 |
43514-MN9-006 |
CLAMP, MASTER CYLINDER OIL HOSE Price: $17.45 |
| 10 |
43520-MG9-315 |
PISTON SET, MASTER CYLINDER (NISSIN) Price: $68.67 |
| 11 |
43530-MM5-006 |
ROD, PUSH Price: $31.64 |
| 12 |
45520-300-000 |
DIAPHRAGM Price: $10.98 |
| 13 |
45521-MJ6-006 |
PLATE, DIAPHRAGM Price: $5.09 |
| 14 |
46182-MEL-D21 |
CIRCLIP Price: $2.22 |
| 15 |
46504-HN8-006 |
JOINT, BRAKE ROD Price: $6.13 |
| 16 |
51208-HM8-000 |
CLAMP B, FR. BRAKE HOSE (RR.) Price: $2.55 |
| 17 |
90107-HC5-000 |
BOLT, FLANGE (6X10) Price: $2.65 |
| 18 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 19 |
90315-MAT-006 |
NUT, SPECIAL (8MM) Price: $0.51 |
| 20 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 21 |
91212-422-006 |
O-RING (14.8X2.4) Price: $2.93 |
| 22 |
93893-04012-07 |
SCREW-WASHER (4X12) Price: $1.40 |
| 23 |
94201-20150 |
PIN, COTTER (2.0X15) Price: $1.08 |
| 24 |
95015-54000 |
PIN D, JOINT Price: $5.33 |
| 25 |
95701-06020-00 |
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22) Price: $1.85 |
