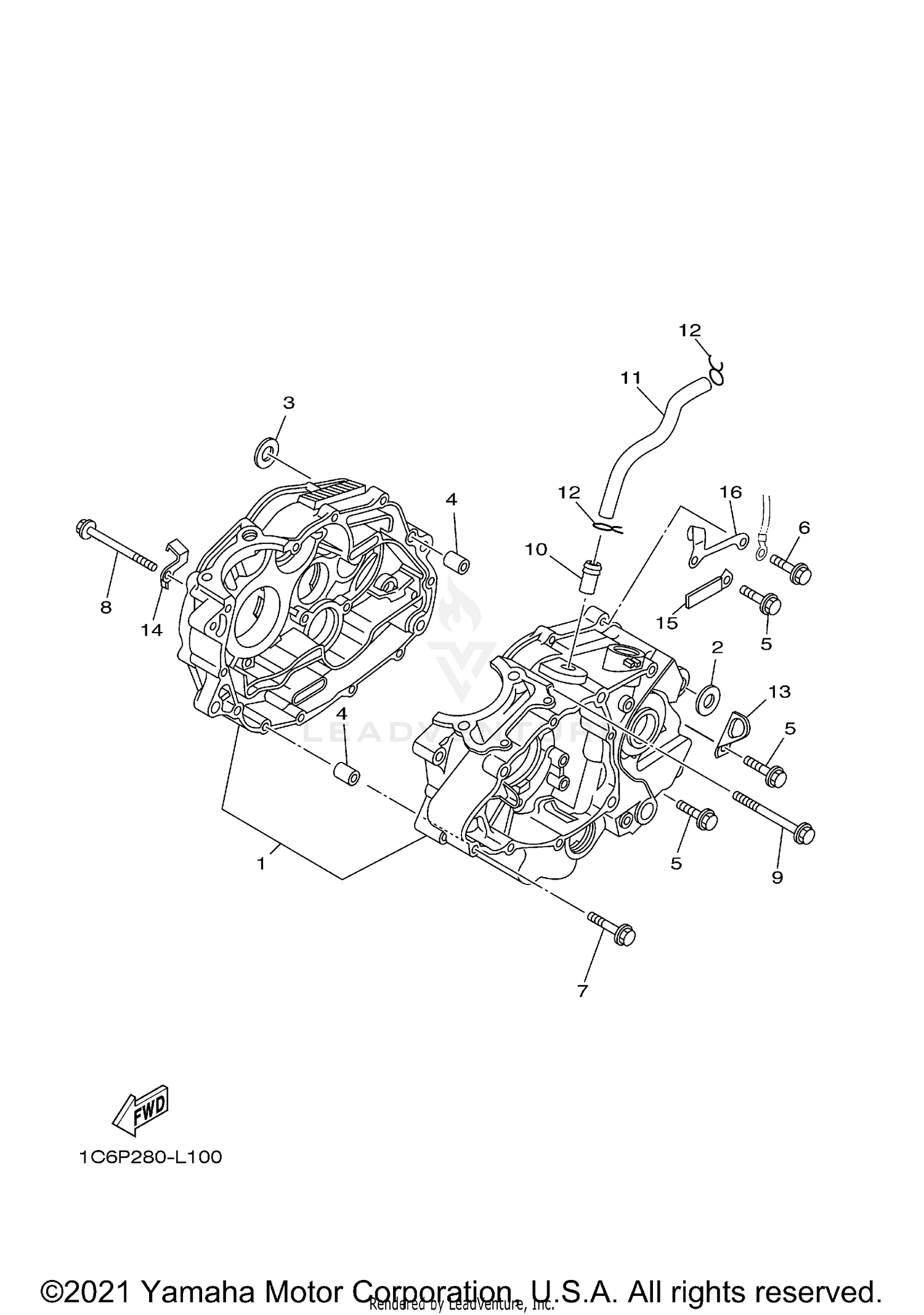

CRANKCASE
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 4VW-WE515-00-00 | CRANKCASE ASSY This part replaces 4VW-E5150-01-00. Price: $406.99 |
| 2 | 90387-125F1-00 | COLLAR Price: $4.60 |
| 3 | 90387-125F1-00 | COLLAR Price: $4.60 |
| 4 | 99530-12016-00 | PIN, DOWEL Price: $4.89 |
| 5 | 95027-06030-00 | BOLT, FLANGE This part replaces 9502M-06030-00. Price: $4.30 |
| 6 | 95024-06030-00 | BOLT, FLANGE (SMALL HEAD) This part replaces 90105-06830-00. Price: $9.49 |
| 7 | 95027-06040-00 | BOLT, FLANGE This part replaces 9502M-06040-00. Price: $3.55 |
| 8 | 95027-06090-00 | BOLT, FLANGE This part replaces 9502M-06090-00. Price: $2.80 |
| 9 | 95027-06085-00 | BOLT, FLANGE This part replaces 9502M-06085-00. Price: $10.49 |
| 10 | 371-11167-01-00 | PIPE, BREATHER 2 Price: $14.49 |
| 11 | 1C6-E531A-00-00 | HOSE, BREATHER 1 This part replaces 1C6-E531A-10-00. Price: $29.99 |
| 12 | 90467-14015-00 | CLIP Price: $9.49 |
| 13 | 90465-08200-00 | CLAMP Price: $4.70 |
| 14 | 90462-08224-00 | CLAMP Price: $4.20 |
| 15 | 90465-06376-00 | CLAMP This part replaces 90465-08127-00. Price: $10.49 |
