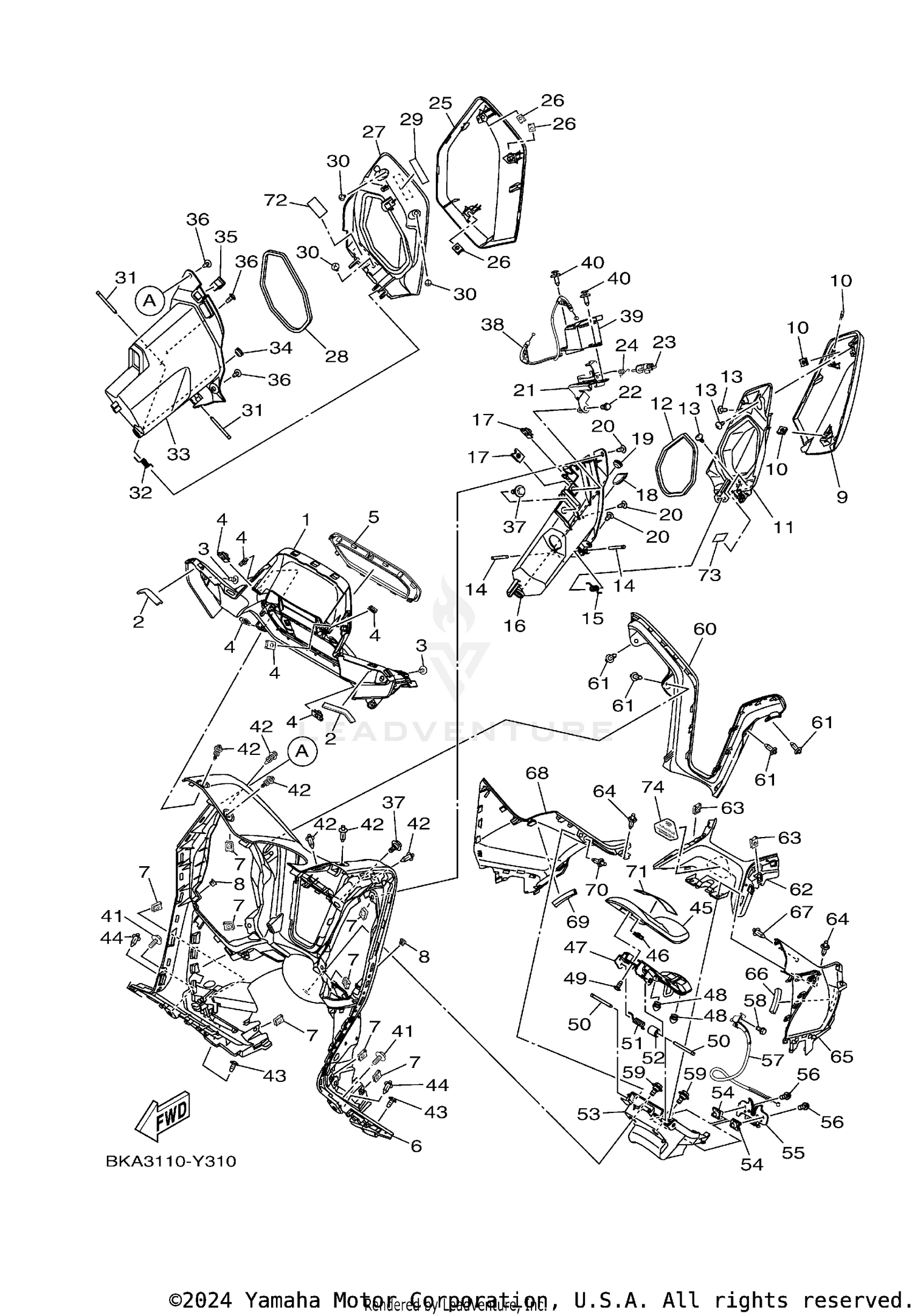

| Ref | Part Number | Description |
|---|
| 1 |
BKA-F836K-00-00 |
PANEL, INNER 1 Price: $17.49 |
| 2 |
90520-03846-00 |
DAMPER, PLATE Price: $0.25 |
| 3 |
90160-05808-00 |
SCREW, ROUND TAPPING Price: $0.55 |
| 4 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 6 |
BKA-F8311-00-00 |
LEG SHIELD 1 Price: $43.99 |
| 7 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 8 |
90269-08058-00 |
RIVET Price: $1.15 |
| 9 |
BKA-F836L-00-00 |
PANEL, INNER 2 Price: $8.49 |
| 10 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 11 |
BKA-F839L-00-00 |
LID 2 Price: $6.49 |
| 12 |
90520-06808-00 |
DAMPER, PLATE Price: $1.85 |
| 13 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING Price: $4.63 |
| 14 |
B74-F818A-00-00 |
PIN Price: $3.50 |
| 15 |
90508-13800-00 |
SPRING, TORSION Price: $2.50 |
| 16 |
B74-F838L-01-00 |
BOX 2 Price: $9.49 |
| 17 |
90183-06818-00 |
NUT, SPRING Price: $0.80 |
| 18 |
B74-F8349-00-00 |
CAP Price: $1.15 |
| 19 |
4US-F6199-00-00 |
PLUG, BLIND Price: $6.49 |
| 20 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING Price: $4.63 |
| 21 |
BKA-F8357-00-00 |
STAY 2 Price: $9.49 |
| 22 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 23 |
BKA-F131C-00-00 |
BAR LOCK Price: $2.85 |
| 24 |
BKA-F7456-00-00 |
SPRING, RETURN Price: $1.00 |
| 25 |
BKA-F836M-00-00 |
PANEL, INNER 3 Price: $8.49 |
| 26 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 27 |
BKA-F839V-00-00 |
LID 3 Price: $6.49 |
| 28 |
90520-06808-00 |
DAMPER, PLATE Price: $1.85 |
| 29 |
B74-F8336-00-00 |
PLATE Price: $1.30 |
| 30 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING Price: $4.63 |
| 31 |
B74-F818A-00-00 |
PIN Price: $3.50 |
| 32 |
90508-13801-00 |
SPRING, TORSION Price: $3.50 |
| 33 |
B74-F838V-01-00 |
BOX 3 Price: $9.49 |
| 34 |
4US-F6199-00-00 |
PLUG, BLIND Price: $6.49 |
| 35 |
90464-13801-00 |
CLAMP Price: $17.49 |
| 36 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING Price: $4.63 |
| 37 |
90109-068B5-00 |
BOLT Price: $0.50 |
| 38 |
BKA-F835X-00-00 |
WIRE Price: $10.49 |
| 39 |
BKA-F8365-00-00 |
COVER Price: $2.85 |
| 40 |
90269-06812-00 |
RIVET Price: $1.30 |
| 41 |
90119-06209-00 |
BOLT, WITH WASHER This part replaces 90119-06235-00. Price: $6.49 |
| 42 |
90269-06813-00 |
RIVET Price: $0.40 |
| 43 |
97702-50016-00 |
SCREW, TAPPING Price: $2.60 |
| 44 |
90269-06813-00 |
RIVET Price: $0.40 |
| 45 |
BKA-F74A8-00-00 |
LID, FUEL Price: $5.99 |
| 46 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 47 |
B74-F839W-01-00 |
LID 4 Price: $6.49 |
| 48 |
90338-07018-00 |
PLUG Price: $8.49 |
| 49 |
97707-50012-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50012-00. Price: $4.63 |
| 50 |
B74-F818A-00-00 |
PIN Price: $3.50 |
| 51 |
90508-14803-00 |
SPRING, TORSION Price: $3.50 |
| 52 |
B74-F834F-00-00 |
DAMPER Price: $20.99 |
| 53 |
BKA-F838W-00-00 |
BOX 4 Price: $6.49 |
| 54 |
90183-06818-00 |
NUT, SPRING Price: $0.80 |
| 55 |
1DY-F4780-00-00 |
SEAT LOCK ASSY Price: $4.95 |
| 56 |
95E32-06012-00 |
BOLT, FLANGE DEEP RECESS Price: $1.10 |
| 57 |
B74-F4494-00-00 |
WIRE, PULL Price: $39.99 |
| 58 |
97527-05512-00 |
BOLT, WITH WASHER Price: $0.55 |
| 59 |
90109-068B5-00 |
BOLT Price: $0.50 |
| 61 |
90269-06813-00 |
RIVET Price: $0.40 |
| 63 |
90183-05042-00 |
NUT, SPRING This part replaces 90183-05807-00. Price: $1.00 |
| 64 |
90269-06813-00 |
RIVET Price: $0.40 |
| 65 |
BKA-F837L-00-00 |
PANEL, CONSOLE 1 Price: $10.49 |
| 66 |
90520-08822-00 |
DAMPER, PLATE Price: $0.40 |
| 67 |
90269-06813-00 |
RIVET Price: $0.40 |
| 68 |
BKA-F837M-00-00 |
PANEL, CONSOLE 2 Price: $10.49 |
| 69 |
90520-08822-00 |
DAMPER, PLATE Price: $0.40 |
| 70 |
90269-06813-00 |
RIVET Price: $0.40 |
| 71 |
B74-F118K-00-00 |
LABEL, CAUTION Price: $9.49 |
| 72 |
B74-F4877-00-00 |
LABEL, CAUTION Price: $1.10 |
| 73 |
BB8-F4877-20-00 |
LABEL, CAUTION Price: $12.99 |
