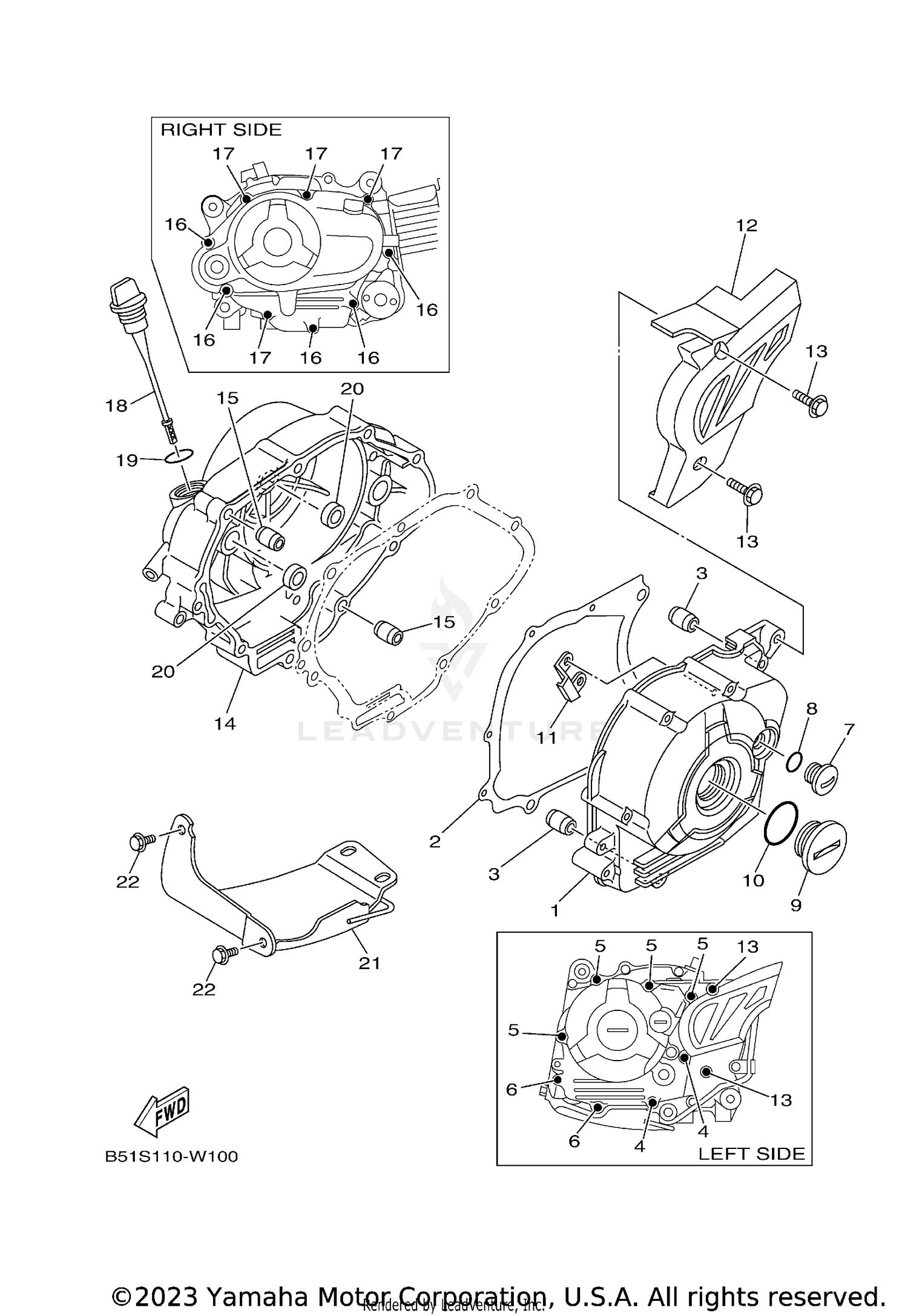

| Ref | Part Number | Description |
|---|
| 1 |
5B6-E5411-00-00 |
COVER, CRANKCASE 1 Price: $389.99 |
| 2 |
3S0-E5451-00-00 |
GASKET, CRANKCASE COVER 1 Price: $10.99 |
| 3 |
91810-14809-00 |
PIN, DOWEL Price: $2.95 |
| 4 |
95022-06040-00 |
BOLT, FLANGE Price: $3.70 |
| 5 |
95022-06050-00 |
BOLT, FLANGE Price: $1.80 |
| 6 |
95022-06080-00 |
BOLT, FLANGE This part replaces 9502L-06080-00. Price: $4.60 |
| 7 |
90340-14812-00 |
PLUG, STRAIGHT SCREW Price: $10.49 |
| 8 |
93210-14369-00 |
O-RING This part replaces 93210-148F8-00. Price: $8.49 |
| 9 |
90340-32806-00 |
PLUG, STRAIGHT SCREW Price: $10.49 |
| 10 |
93210-32172-00 |
O-RING This part replaces 93210-328G3-00. Price: $8.49 |
| 11 |
5TP-E5113-00-00 |
PLATE Price: $0.75 |
| 12 |
5B6-15418-00-00 |
COVER, CHAIN CASE Price: $46.99 |
| 13 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 14 |
5B6-E5421-00-00 |
COVER, CRANKCASE 2 Price: $158.99 |
| 15 |
91810-14809-00 |
PIN, DOWEL Price: $2.95 |
| 16 |
95022-06040-00 |
BOLT, FLANGE Price: $3.70 |
| 17 |
95022-06050-00 |
BOLT, FLANGE Price: $1.80 |
| 18 |
5B6-E5362-00-00 |
PLUG, OIL LEVEL Price: $10.49 |
| 19 |
93210-19522-00 |
O-RING This part replaces 93210-198F9-00. Price: $8.49 |
| 20 |
93101-10142-00 |
OIL SEAL This part replaces 93101-10843-00. Price: $9.49 |
| 21 |
5B6-E5436-00-00 |
COVER, STARTING MOTOR Price: $58.99 |
