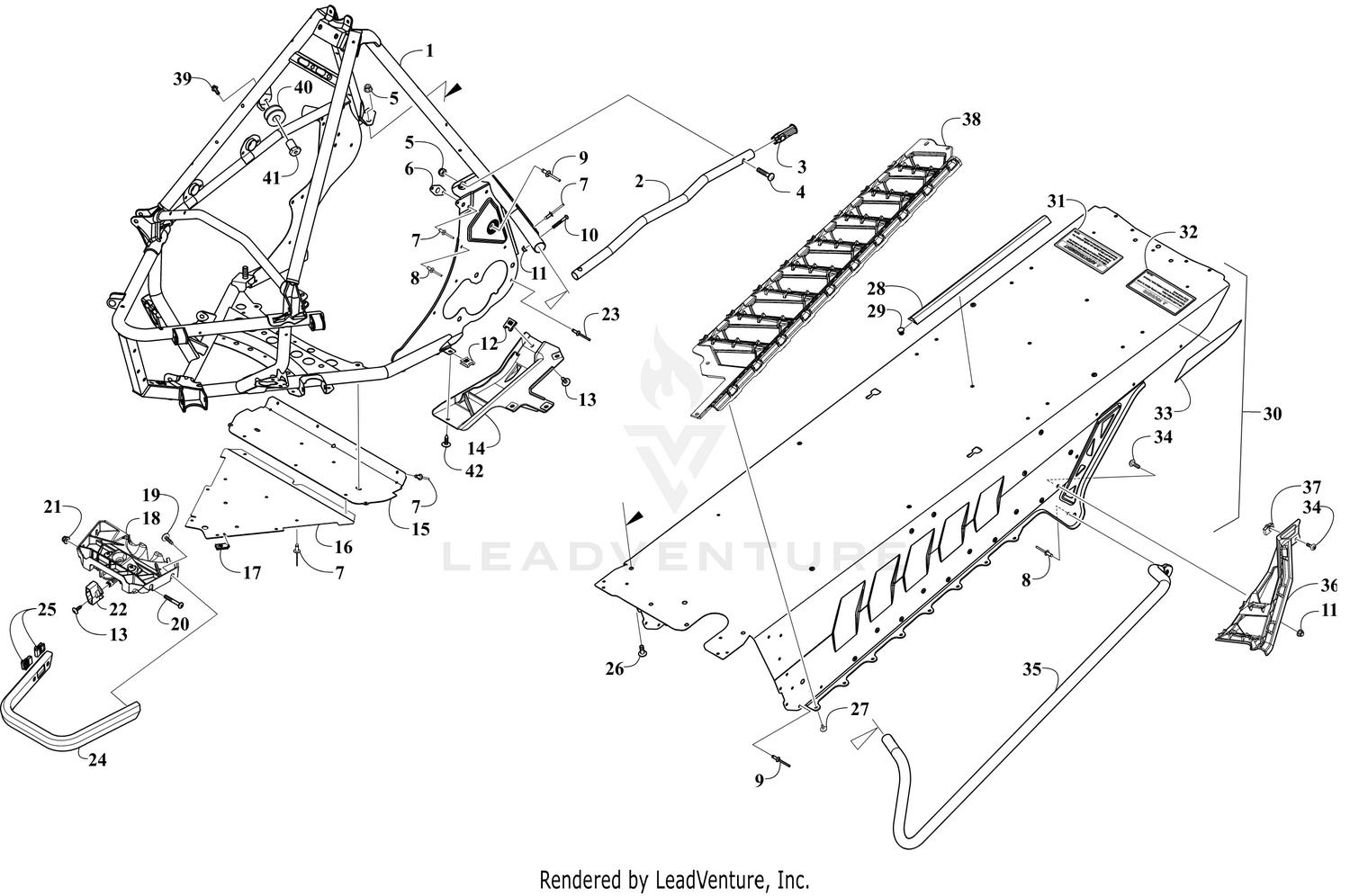

CHASSIS ASSEMBLY [110549]

Parts (45)

Ref	Part Number	Description
1	636-00032	Kit, Service Frame Price: $1,099.95
2	4707-287	Tube, Support - Frame - Black - Left Price: $24.07
3	2607-163	Insert, Support Tube Price: $1.09
4	2623-026	Screw, Machine Price: $1.80
5	8427-802	Nut, Lock Price: $0.58
6	0608-631	Plate, Retaining Price: $30.95
7	8060-686	Rivet - Zinc Price: $0.46
8	8060-706	Rivet Price: $0.46
9	1623-241	Rivet Price: $2.05
10	8468-535	Screw, Machine Price: $1.07
11	8427-502	Nut, Lock Price: $1.07
12	1623-939	Nut, U Price: $1.30
13	2623-163	Screw, Self-Tapping Price: $1.45
14	2607-098	Protector, Track - Drive - Right Price: $14.95
14	2607-099	Protector, Track - Drive - Left Price: $14.95
15	2607-097	Bellypan, Center - Stamped Price: $13.28
16	2607-114	Bellypan, Center - Stamped - Front Price: $46.95
17	1623-052	Clip, U-Nut Price: $1.08
18	6716-498	Latch, Hood - Assembly Price: $69.95
19	8476-620	Screw, Machine This part replaces 8408-620. Price: $0.48
20	8468-645	Screw, Machine Price: $1.32
21	8427-603	Nut, Lock Price: $0.35
22	1616-268	Handle, Hood Latch Price: $3.00
23	8060-682	Rivet Price: $0.24
24	4707-441	Bumper, Front - Skye Blue Price: $61.95
25	0423-577	Clip, U-Nut Price: $0.46
26	8476-820	Screw, Machine Price: $1.08
27	2623-017	Screw, Self-Tapping Price: $1.45
28	0630-402	Protector, Harness Price: $6.43
29	1623-795	Clip, Retaining Price: $2.30
31	5611-852	Decal, Warning - Towing (French) Price: $2.54
32	5611-853	Decal, Warning - Towing (English) Price: $2.81
33	8621-102	Decal, Reflector - Right Price: $4.49
33	8621-103	Decal, Reflector - Left Price: $4.49
34	8477-516	Screw, Machine Price: $0.71
35	4707-444	Tube, Support - Running Board - Right - Skye Blue Price: $66.95
35	4707-445	Tube, Support - Running Board - Left - Skye Blue Price: $65.95
36	2607-064	Close Off, Running Board - Right Price: $17.59
36	2607-065	Close Off, Running Board - Left Price: $17.59
37	1623-637	Clip, U-Nut Price: $2.61
38	2607-062	Running Board - Right Price: $52.95
38	2607-063	Running Board - Left Price: $52.95
39	8413-617	Screw, Cap Price: $1.32
40	5606-160	Pulley, Recoil Price: $35.95
41	4604-579	Bushing, Recoil - Pulley Price: $3.69
