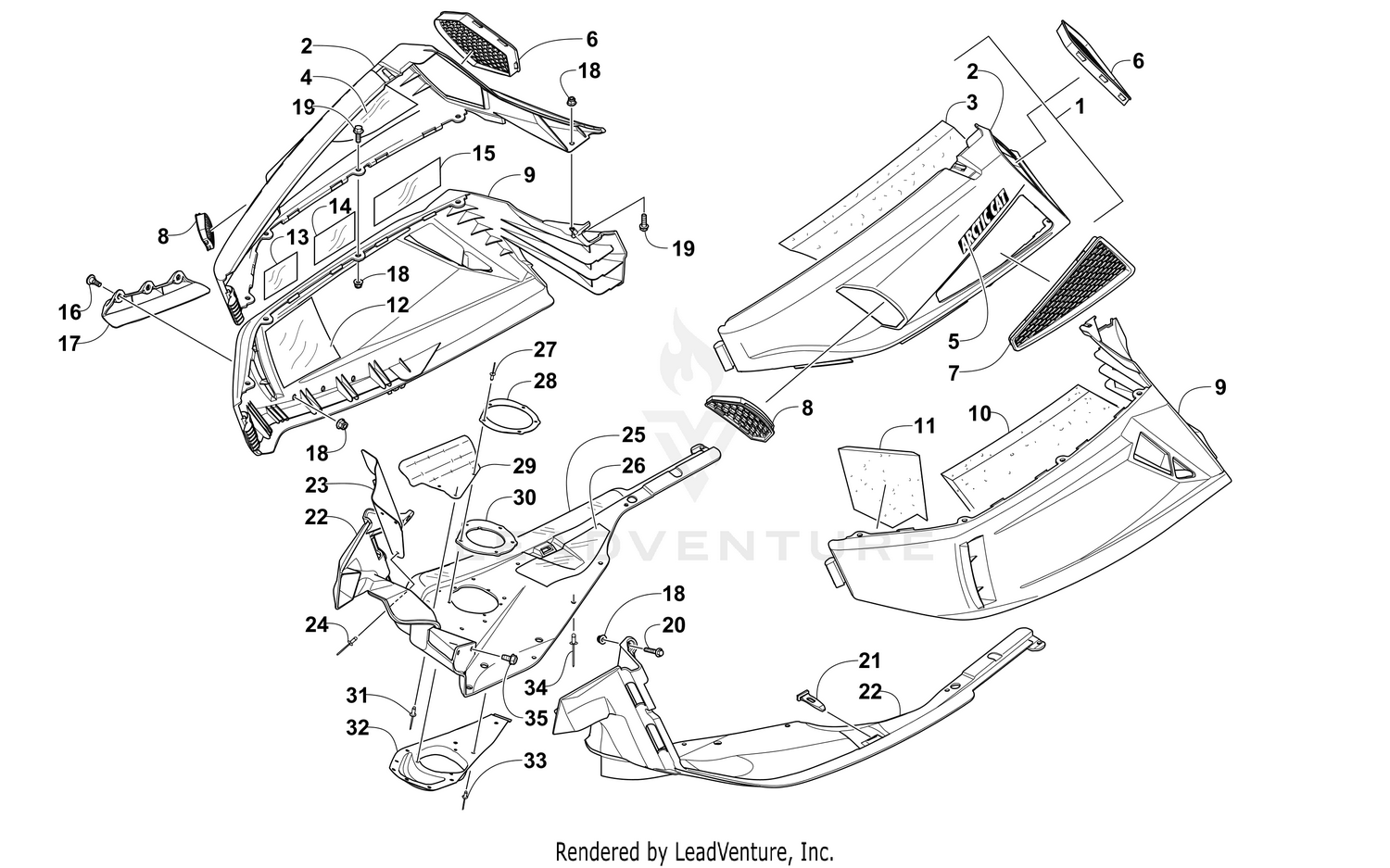

SKID PLATE AND SIDE PANEL ASSEMBLY [103156]

Parts (37)

Ref	Part Number	Description
3	0617-057	Foam, Upper Side Panel - Left Price: $9.95
3	0617-562	Foam, Upper Side Panel - Right Price: $9.95
4	4606-799	Foil, Protective Price: $14.99
5	0621-732	Decal, Hood - "Arctic Cat" Price: $15.71
6	4606-650	Vent, Upper Panel - Rear Right - Mold - Black Price: $27.95
6	4606-651	Vent, Upper Panel - Rear Left - Mold - Black Price: $27.95
7	5606-185	Vent, Upper Side Panel - Center - Left Price: $24.20
8	4606-662	Vent, Upper Side Panel - Right - Black Price: $21.77
8	4606-663	Vent, Upper Side Panel - Left - Black Price: $21.77
10	0617-567	Foam, Lower Side Panel - Rear Left (19 mm thick) Price: $11.95
10	0617-568	Foam, Lower Side Panel - Rear Right Price: $100.95
11	0617-564	Foam, Lower Side Panel - Front Right Price: $19.35
11	0617-566	Foam, Lower Side Panel - Front - Left Price: $3.49
12	5606-548	Foil, Protective - Right Price: $3.14
13	6606-219	Foil, Protective Price: $4.84
14	6606-218	Foil, Protective Price: $3.75
15	6606-220	Foil, Protective Price: $7.23
16	0423-355	Screw, Shoulder Price: $1.08
17	5606-404	Deflector, Exhaust Price: $20.56
18	8427-602	Nut, Hex Price: $0.23
19	8476-620	Screw, Machine This part replaces 8408-620. Price: $0.48
20	8408-635	Screw, Machine Price: $0.71
21	4606-926	Strap, Hold-Down Price: $4.84
22	4706-073	Plate, Skid - Left Price: $64.95
22	5706-172	Plate, Skid - Right Price: $543.95
23	6606-423	Shield, Heat Price: $14.49
24	8061-506	Rivet Price: $1.07
25	4606-798	Foil, Protective Price: $2.91
26	4606-797	Foil, Protective Price: $1.49
27	8060-510	Rivet Price: $0.84
28	1712-348	Plate, Exhaust - Outlet Price: $5.95
29	2612-268	Shield, Heat Price: $6.95
30	2612-287	Seal, Exhaust - Outlet Price: $4.09
31	8061-508	Rivet Price: $1.53
32	1712-501	Shield, Heat - Exhaust Outlet - Painted Price: $38.95
33	0623-778	Rivet Price: $1.20
34	8061-708	Rivet Price: $1.08
