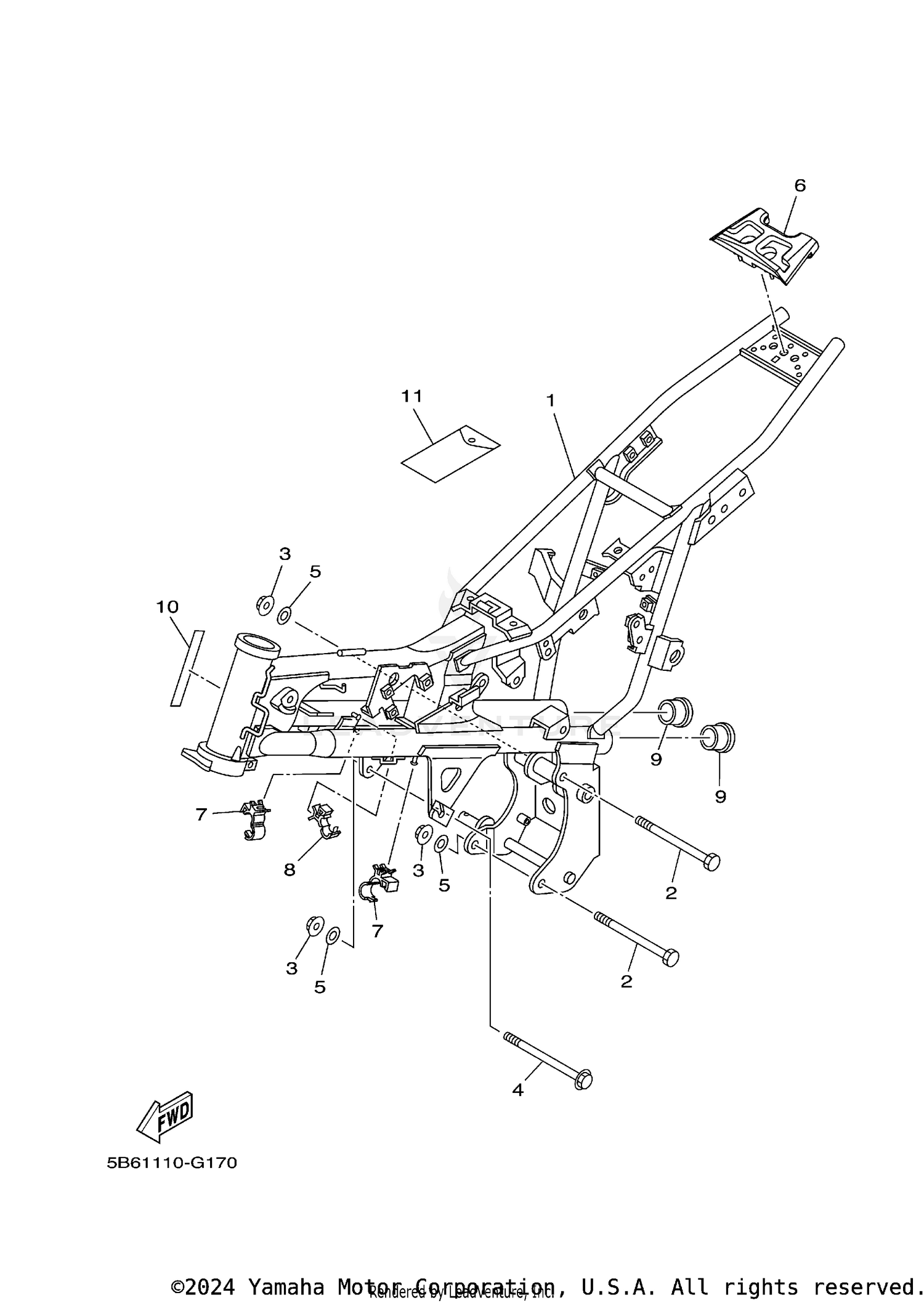

FRAME
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 95817-08120-00 | BOLT, FLANGE This part replaces 95812-08120-00. Price: $5.49 |
| 3 | 90179-08674-00 | NUT Price: $8.49 |
| 4 | 90105-08223-00 | BOLT, FLANGE Price: $5.49 |
| 5 | 90214-08046-00 | WASHER, CLAW(M75) This part replaces 90201-084K5-00. Price: $1.05 |
| 6 | 5B6-2139X-00-00 | DAMPER Price: $52.99 |
| 7 | 90464-15192-00 | CLAMP Price: $9.49 |
| 8 | 90464-10190-00 | CLAMP Price: $10.49 |
| 9 | 5B6-21279-00-00 | PLUG, BLIND Price: $16.49 |
| 10 | 3HA-24141-00-00 | PROTECTOR, FUEL TANK Price: $15.49 |
