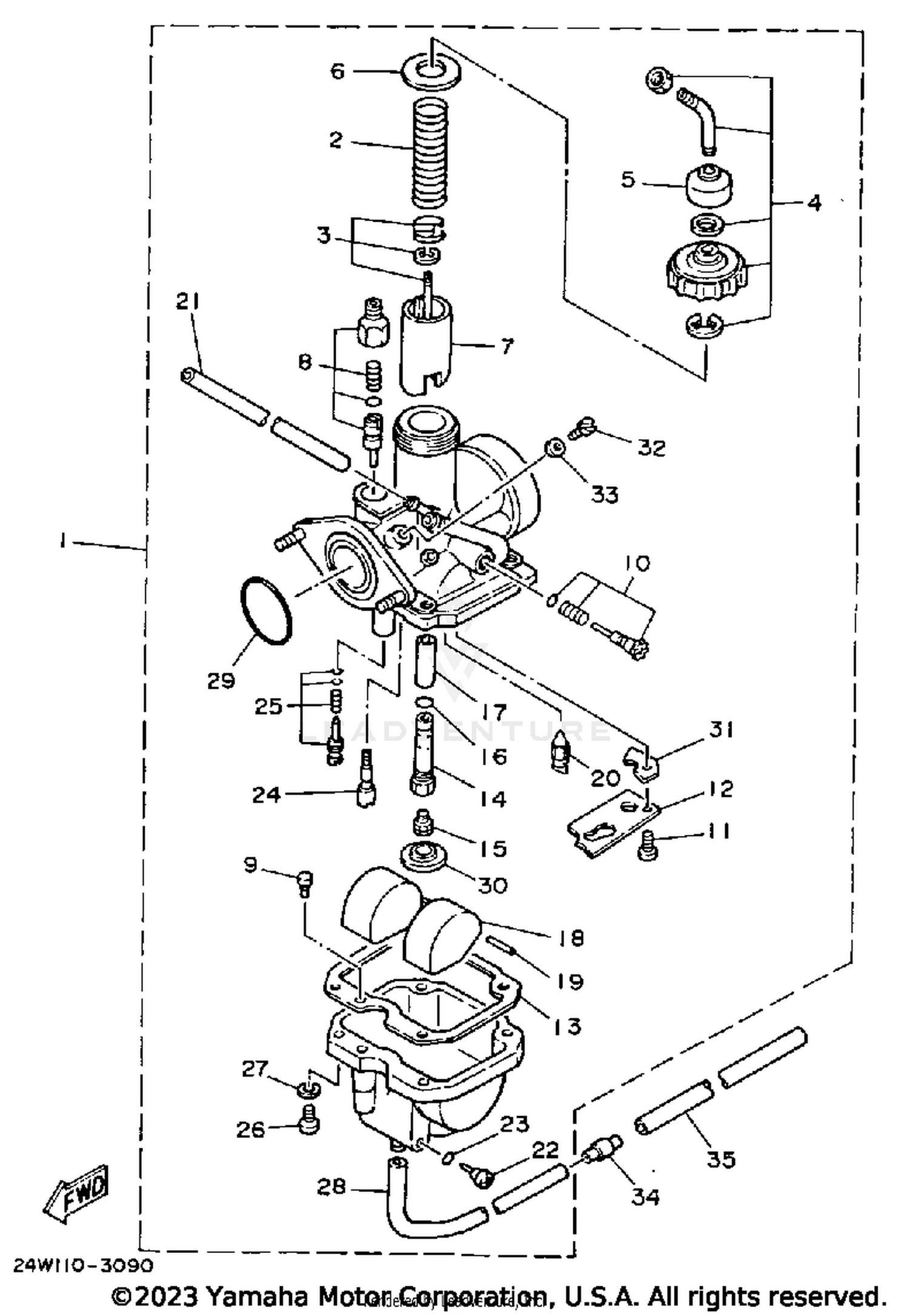

CARBURETOR YTM200L
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 24W-14101-02-00 | CARBURETOR ASSY 1 This part replaces 24W-14101-01-00. Price: $403.99 |
| 2 | 21V-14131-00-00 | SPRING, THROTTLE VALVE Price: $10.99 |
| 3 | 24W-1490J-00-00 | NEEDLE SET Price: $11.49 |
| 4 | 10X-14106-00-00 | CABLE ADJUST SCREW SET Price: $43.99 |
| 5 | 3X3-14169-00-00 | CAP This part replaces 1M1-14169-00-00. Price: $17.99 |
| 6 | 4U5-14126-00-00 | GASKET Price: $14.49 |
| 7 | 24W-14112-40-00 | VALVE, THROTTLE 1 Price: $37.13 |
| 8 | 21V-1410A-00-00 | STARTER SET Price: $115.99 |
| 19 | 127-14186-00-00 | PIN, FLOAT Price: $6.75 |
| 20 | 5HH-14190-18-00 | NEEDLE VALVE ASSY This part replaces 21V-14190-18-00. Price: $46.99 |
| 21 | 90445-084A7-00 | HOSE Price: $8.49 |
| 22 | 12R-14191-00-00 | PLUG, DRAIN Price: $17.99 |
| 23 | 214-14147-00-00 | O-RING Price: $8.49 |
| 24 | 3H1-14142-25-00 | JET, PILOT #25 Price: $5.99 |
| 25 | 21V-14105-00-00 | PILOT SCREW SET Price: $18.99 |
