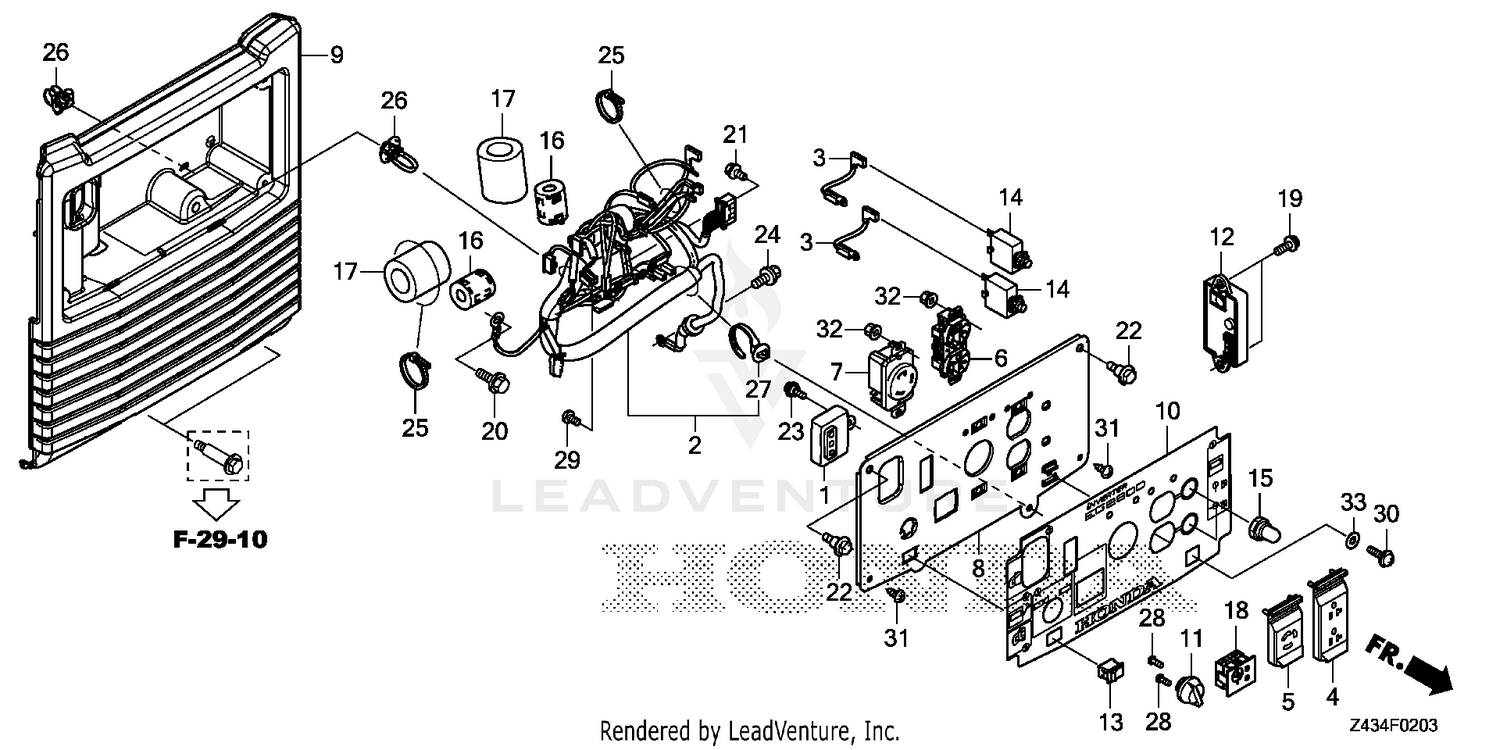

| Ref | Part Number | Description |
|---|
| 1 |
30585-ZS9-A02 |
SEE PART DETAILS - PRI; IGNITION UNIT Price: $100.87 |
| 2 |
32150-Z43-D30 |
WIRE HARNESS ASSY., CONTROL Price: $73.72 |
| 3 |
32221-Z43-B30 |
WIRE, TERMINAL (150MM) Price: $1.76 |
| 4 |
32320-ZS9-W30 |
COVER, RECEPTACLE (20A-125V) Price: $20.04 |
| 5 |
32321-ZS9-W30 |
COVER, RECEPTACLE (30A-125V) Price: $20.00 |
| 6 |
32330-Z43-A31 |
RECEPTACLE (20A/125V) Price: $6.14 |
| 7 |
32332-Z43-A41 |
RECEPTACLE (30A/125V) Price: $28.36 |
| 8 |
32345-Z43-D30 |
PANEL, CONTROL Price: $42.60 |
| 9 |
32356-Z43-B30ZA |
CASE, CONTROL PANEL *R280* (POWER RED) Price: $21.16 |
| 10 |
32366-Z43-D30 |
MARK, CONTROL PANEL Price: $8.90 |
| 11 |
35120-Z11-E01 |
SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP Price: $19.20 |
| 12 |
35610-ZS9-PA0 |
SENSING UNIT (CO) Price: $209.66 |
| 13 |
36214-Z43-B31 |
SWITCH, AUTO THROTTLE Price: $5.44 |
| 14 |
38240-Z43-B30 |
PROTECTOR, CIRCUIT (20A) (WHITE) Price: $20.62 |
| 15 |
38242-Z25-A62 |
COVER, CIRCUIT PROTECTOR Price: $18.32 |
| 16 |
38398-YM2-B50 |
FILTER, SUB NOISE (AC) Price: $34.28 |
| 17 |
38398-Z07-C60 |
SUPPORTER, FILTER Price: $4.66 |
| 18 |
38530-ZS9-W32 |
LED ASSY., INDICATER Price: $34.68 |
| 19 |
90003-MEL-000 |
BOLT, FLANGE (5X14) Price: $1.68 |
| 20 |
90014-952-000 |
BOLT, FLANGE (6X14) (Honda Code 0803619). Price: $2.94 |
| 21 |
90031-875-000 |
SCREW, TAPPING (5X12) Price: $3.90 |
| 22 |
90101-Z43-B30 |
BOLT, CONTROL PANEL Price: $0.58 |
| 23 |
90108-MN0-000 |
SCREW, PAN (5X13) Price: $2.24 |
| 24 |
90153-SE0-003 |
BOLT, GROUND (6X12) (SN) Price: $0.92 |
| 25 |
90672-Z43-B30 |
TIE, CABLE Price: $0.10 |
| 26 |
91452-Z43-B30 |
CLIP, WIRE HARNESS Price: $0.52 |
| 27 |
91541-S0A-003 |
CLIP, HARNESS BAND (145MM) (BLACK) Price: $4.98 |
| 28 |
93500-03008-3J |
SCREW, PAN (3X8) Price: $1.66 |
| 29 |
93500-05008-3J |
SCREW, PAN (5X8) Price: $1.18 |
| 30 |
93500-05016-3J |
SCREW, PAN (5X16) Price: $0.44 |
| 31 |
93913-25210 |
SCREW, TAPPING (5X12) Price: $0.66 |
| 32 |
94050-04080 |
NUT, FLANGE (4MM) Price: $1.56 |
